Intake Manifold of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

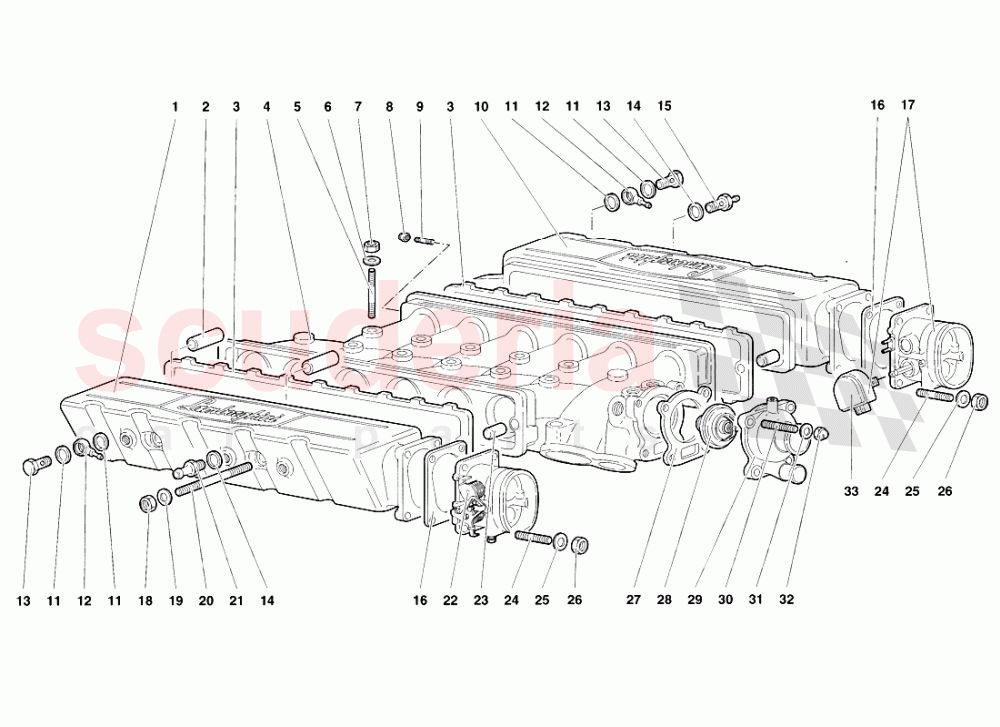

Lamborghini Diablo VT Roadster (1998-2000) - Intake Manifold

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	13001063	RIGHT COVER	13001063 RIGHT COVER COPERCHIO DX	$5,524.86	1
002	13001226	SPACER	13001226 SPACER DISTANZIALE	$40.59 MSRP: ~~43.95~~ (7.6% off)	4
003	1323717	Gasket	1323717 Gasket GUARNIZIONE	$54.12	2
004	490132009	INLET MANIFOLD	490132009 INLET MANIFOLD COLLETTORE ASPIRAZIONE	$5,146.13	1
005	8300614	STUD	8300614 STUD PRIGIONIERO	$8.24	11
006	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	11
007	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.08	11
008	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.85	1
009	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	$4.63 MSRP: ~~5.10~~ (9.2% off)	1
010	13001062	LEFT COVER	13001062 LEFT COVER COPERCHIO SX	$5,524.86	1
011	8401621	WASHER	8401621 WASHER RONDELLA	$1.20	4
012	13001440	CONNECTION	13001440 CONNECTION RACCORDO	$10.54 MSRP: ~~11.35~~ (7.1% off)	2
013	13001439	SCREW	13001439 SCREW VITE	$19.72 MSRP: ~~21.35~~ (7.6% off)	2
014	8401621	WASHER	8401621 WASHER RONDELLA	$1.20	2
015	1330455	CONNECTION	1330455 CONNECTION RACCORDO	$30.90 MSRP: ~~33.45~~ (7.6% off)	1
016	1326311	GASKET	1326311 GASKET GUARNIZIONE	$68.34	2
017	1326293	THROTTLE HOLDER	1326293 THROTTLE HOLDER CORPO FARFALLATO SX	$1,324.11 MSRP: ~~1,485.00~~ (10.8% off)	1
018	8201003	NUT	8201003 NUT DADO	$3.24	4
019	8401008	WASHER	8401008 WASHER RONDELLA	-	4	Enquire
020	8301043	STUD	8301043 STUD PRIGIONIERO	$4.90 MSRP: ~~5.40~~ (9.3% off)	4
021	1330882	CONNECTION	1330882 CONNECTION RACCORDO	-	1	Enquire
022	1326181	THROTTLE HOLDER	1326181 THROTTLE HOLDER CORPO FARFALLATO DX	$1,216.97	1
023	WHT003577	DOWEL	WHT003577 DOWEL GRANO	$1.68 MSRP: ~~7.03~~ (76.1% off)	4
024	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	$20.79	8
025	WHT000771	WASHER IN STOCK	WHT000771 WASHER RONDELLA IN STOCK	$1.11	8
026	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.94	8
027	1732808	GASKET	1732808 GASKET GUARNIZIONE	$27.35	1
028	17006576	THERMOSTAT	17006576 THERMOSTAT TERMOSTATO	$505.95	1
029	1732806	COVER	1732806 COVER COPERCHIO	$1,001.47 MSRP: ~~1,125.00~~ (11% off)	1
030	8300803	STUD BOLT	8300803 STUD BOLT PRIGIONIERO	$12.63	4
031	WHT000771	WASHER IN STOCK	WHT000771 WASHER RONDELLA IN STOCK	$1.11	4
032	8200816	NUT	8200816 NUT DADO	$4.79	4
033	1327641	POTENTIOMETER	1327641 POTENTIOMETER POTENZIOMETRO	$159.60 MSRP: ~~173.50~~ (8% off)	1
