Accessories for Left Cylinder Head of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

Lamborghini Diablo VT Roadster (1998-2000) - Accessories for Left Cylinder Head

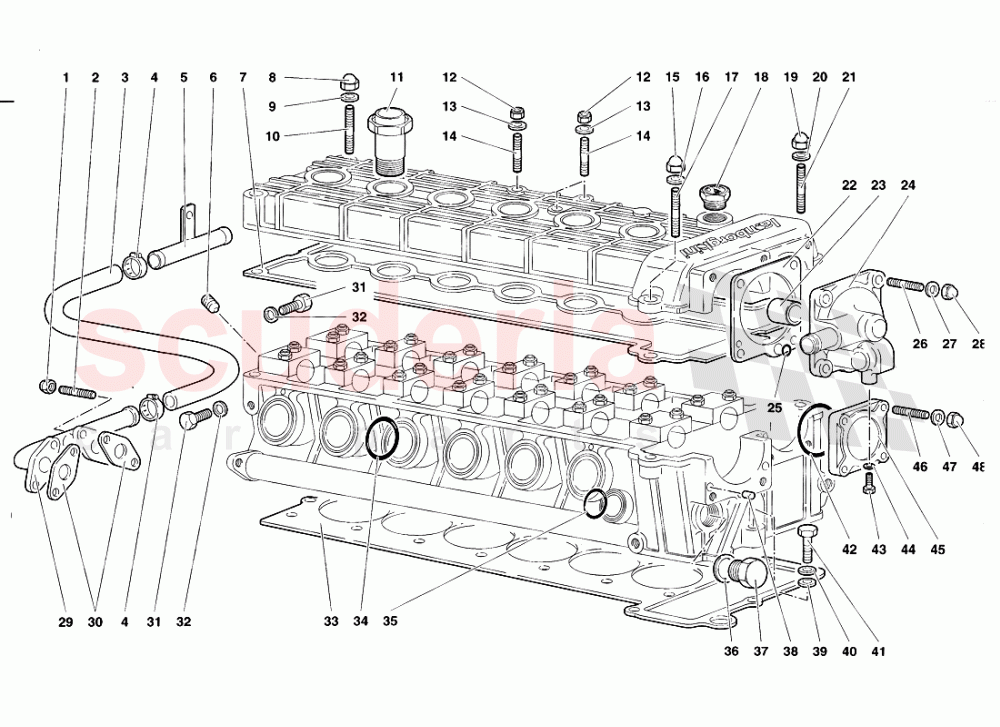

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.86	4
002	8300610	STUD BOLT	8300610 STUD BOLT PRIGIONIERO	$22.97 MSRP: ~~25.65~~ (10.4% off)	4
003	410819370	Sleeve for Auxiliary Water Pump IN STOCK	410819370 Sleeve for Auxiliary Water Pump TUBO IN STOCK	$61.12	1
004	8832003	CLAMP IN STOCK	8832003 CLAMP FASCETTA IN STOCK	$41.15	2
005	1730064	CONNECTION	1730064 CONNECTION GIUNZIONE INTERMEDIA	$22.03 MSRP: ~~23.90~~ (7.8% off)	1
006	8700852	SCREW	8700852 SCREW TAPPO	$0.43 MSRP: ~~7.31~~ (94.1% off)	1
007	11001012	GASKET	11001012 GASKET GUARNIZIONE	$41.40	1
008	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.86	1
009	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.87	1
010	8300650	STUD BOLT	8300650 STUD BOLT PRIGIONIERO	$11.24 MSRP: ~~12.55~~ (10.4% off)	1
011	1134281	UNION	1134281 UNION BOCCHETTONE	$190.43 MSRP: ~~206.50~~ (7.8% off)	6
012	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.08	3
013	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	3
014	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	$4.63 MSRP: ~~5.10~~ (9.2% off)	3
015	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.86	1
016	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.87	1
017	8300637	STUD BOLT	8300637 STUD BOLT PRIGIONIERO	$13.39 MSRP: ~~15.00~~ (10.7% off)	1
018	1136032	CAP	1136032 CAP TAPPO INTRODUZIONE	$13.02 MSRP: ~~14.15~~ (8% off)	1
019	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.86	1
020	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.87	1
021	8300651	STUD BOLT	8300651 STUD BOLT PRIGIONIERO	$11.08 MSRP: ~~12.30~~ (9.9% off)	1
022	11001010	GASKET	11001010 GASKET GUARNIZIONE	$41.74 MSRP: ~~46.75~~ (10.7% off)	1
023	11000038	BUSHING	11000038 BUSHING BOCCOLA	$52.14	1
024	11001059	VENT PIPE - COVER	11001059 VENT PIPE - COVER COPERCHIO - SFIATO	$430.65 MSRP: ~~465.00~~ (7.4% off)	1
025	8600905	SEAL RING	8600905 SEAL RING ANELLOTENUTA	$8.86 MSRP: ~~9.85~~ (10.1% off)	1
026	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	$20.81	4
027	WHT000771	WASHER IN STOCK	WHT000771 WASHER RONDELLA IN STOCK	$1.11	4
028	8200816	NUT	8200816 NUT DADO	$4.80	4
029	1734153	PIPE	1734153 PIPE RACCORDO	$692.89	1
030	1121254	GASKET	1121254 GASKET GUARNIZIONE	$8.71	2
031	8100839	SCREW	8100839 SCREW VITE	$0.43 MSRP: ~~7.31~~ (94.1% off)	2
032	8400802	WASHER	8400802 WASHER RONDELLA	$1.40 MSRP: ~~7.27~~ (80.7% off)	2
033	11000988	Gasket	11000988 Gasket GUARNIZIONE	$378.07	1
034	8604703	SEAL RING	8604703 SEAL RING ANELLOTENUTA	$7.62 MSRP: ~~8.45~~ (9.8% off)	6
035	8603503	SEAL RING	8603503 SEAL RING ANELLO TENUTA	$3.88	2
036	8402609	WASHER	8402609 WASHER RONDELLA	-	1	Enquire
037	7M103035	PLUG	7M103035 PLUG	$59.32	1
038	8850616	DOWEL	8850616 DOWEL GRAND	-	2	Enquire
039	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.44 MSRP: ~~7.15~~ (79.9% off)	1
040	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	1
041	8100807	SCREW	8100807 SCREW VITE	$0.78 MSRP: ~~7.27~~ (89.3% off)	1
042	8606205	O-Ring	8606205 O-Ring ANELLOTENUTA	$4.01	3
043	8100631	SCREW	8100631 SCREW VITE	$0.11 MSRP: ~~7.37~~ (98.5% off)	1
044	WHT003041	WASHER IN STOCK	WHT003041 WASHER RONDELLA IN STOCK	$0.83 MSRP: ~~7.31~~ (88.6% off)	1
045	1114502	COVER	1114502 COVER COPERCHIO	$176.55 MSRP: ~~191.00~~ (7.6% off)	3
046	8300601	STUD BOLT	8300601 STUD BOLT PRIGIONIERO	$8.04	12
047	8400620	WASHER	8400620 WASHER RONDELLA	$1.40 MSRP: ~~7.38~~ (81% off)	12
048	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.86	12
