Oil Sump of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

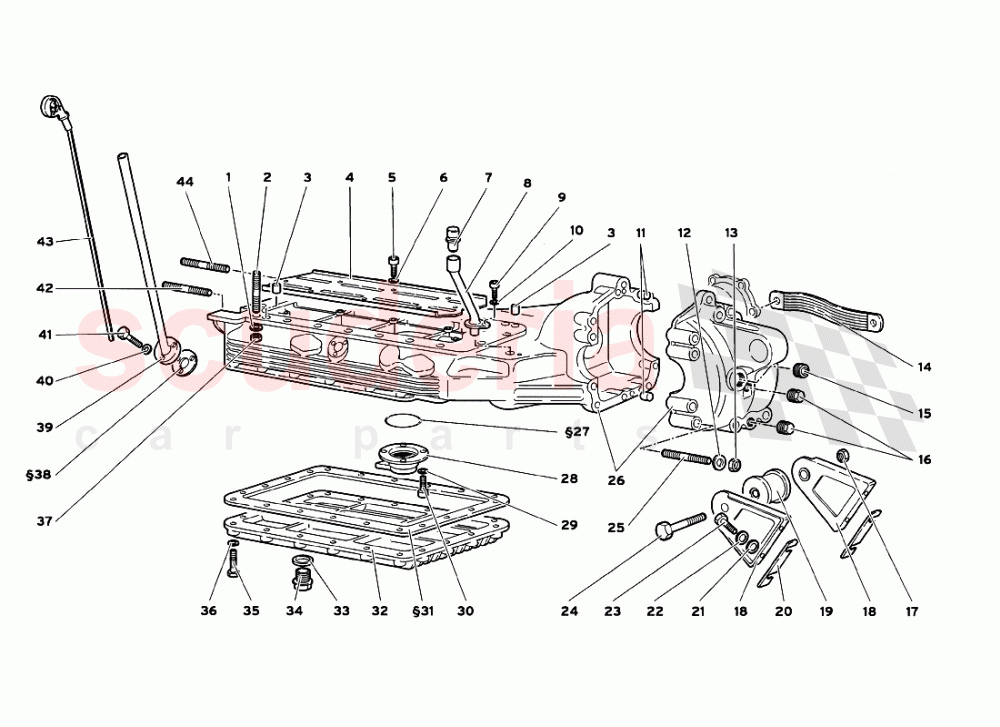

Lamborghini Diablo GT (1999-2000) - Oil Sump

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT000771	WASHER IN STOCK	WHT000771 WASHER RONDELLA IN STOCK	$1.11	18
002	WHT003031	STUD BOLT	WHT003031 STUD BOLT PRIGIONIERO 28 MM	$9.13	8
002	8300806	STUD	8300806 STUD PRIGIONIER070MM	$5.23 MSRP: ~~5.70~~ (8.2% off)	6
002	8300897	STUD	8300897 STUD PRIGIONIERO 106 MM	$13.96 MSRP: ~~15.50~~ (9.9% off)	4
003	8850806	DOWEL	8850806 DOWEL GRAND	-	2	Enquire
004	1827775	PLATE	1827775 PLATE PARATIA ANTISBATTIMENTO	$80.01 MSRP: ~~86.40~~ (7.4% off)	1
005	8700644	SCREW	8700644 SCREW VITE	$0.35 MSRP: ~~7.34~~ (95.2% off)	8
006	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.99	8
007	B9507141	OIL BREATHER PIPE	B9507141 OIL BREATHER PIPE SFIATO OLIO	$65.26	1
008	23001636	PIPE	23001636 PIPE TUBO	$82.07 MSRP: ~~88.50~~ (7.3% off)	1
009	8700547	SCREW IN STOCK	8700547 SCREW VITE IN STOCK	$0.15 MSRP: ~~7.38~~ (98% off)	1
010	8410503	WASHER	8410503 WASHER RONDELLA	$0.18 MSRP: ~~7.37~~ (97.6% off)	1
011	8850806	DOWEL	8850806 DOWEL GRANO	-	2	Enquire
012	WHT000768	WASHER IN STOCK	WHT000768 WASHER IN STOCK	$1.84 MSRP: ~~7.28~~ (74.7% off)	10
013	N10155210	NUT IN STOCK	N10155210 NUT DADO IN STOCK	$2.02 MSRP: ~~7.24~~ (72.1% off)	10
014	1604328	GROUND CABLE	1604328 GROUND CABLE CAVO MASSA	-	2	Enquire
015	8932602	PLUG	8932602 PLUG TAPPO	$3.31 MSRP: ~~3.65~~ (9.3% off)	1
016	86301141A	MAGNETIC PLUG	86301141A MAGNETIC PLUG TAPPO MAGNETICO	$35.10	2
017	8201416	NUT	8201416 NUT DADO	$1.63	1
018	4126765	BRACKET	4126765 BRACKET STAFFA	$256.58 MSRP: ~~287.00~~ (10.6% off)	2
019	B9501144	support mount IN STOCK	B9501144 support mount IN STOCK	$188.04 MSRP: ~~190.50~~ (1.3% off)	1
020	4126766	SPACER	4126766 SPACER SPESSORE Dl REGISTRO	-	1	Enquire
021	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 RONDELLA IN STOCK	$1.45	4
022	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	4
023	8100862	SCREW	8100862 SCREW VITE	$0.60	4
024	8101430	SCREW	8101430 SCREW VITE	$3.31 MSRP: ~~3.65~~ (9.3% off)	1
025	18001643	STUD	18001643 STUD PRIGIONIERO	$12.08 MSRP: ~~13.05~~ (7.4% off)	10
026	450132001	OIL SUMP	450132001 OIL SUMP COPPA OLIO	$8,608.35 MSRP: ~~9,275.00~~ (7.2% off)	1
027	8609302	SEAL	8609302 SEAL (Also Included In The Engine Gaskets Kit) ANELLO TENUTA	-	1	Enquire
028	1832017	FLANGE	1832017 FLANGE FLANGIA	$306.49 MSRP: ~~330.00~~ (7.1% off)	1
029	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.99	4
030	8700644	SCREW	8700644 SCREW VITE	$0.35 MSRP: ~~7.34~~ (95.2% off)	4
031	1826521	GASKET	1826521 GASKET (Also Included In The Engine Gaskets Kit) GUARNIZIONE	$116.67	1
032	1831852	LOWER COVER	1831852 LOWER COVER COPERCHIO INFERIORE	$518.74	1
033	8402202	WASHER IN STOCK	8402202 WASHER (Also Included In The Engine Gaskets Kit) RONDELLA IN STOCK	$4.02 MSRP: ~~4.45~~ (9.7% off)	1
034	8932211	Drain Plug	8932211 Drain Plug TAPPO Dl SCARICO	$24.18	1
035	8100603	SCREW	8100603 SCREW VITE	$1.29 MSRP: ~~7.35~~ (82.4% off)	20
036	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.99	20
037	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.95	18
038	1830006	GASKET	1830006 GASKET (Also Included In The Engine Gaskets Kit) GUARNIZIONE	$7.87	1
039	1837263	PIPE	1837263 PIPE TUBO PORTA ASIA	$97.07 MSRP: ~~105.00~~ (7.6% off)	1
040	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.99	3
041	8100601	SCREW	8100601 SCREW VITE	$0.25	3
042	8300808	STUD BOLT	8300808 STUD BOLT use : WHT003027	$5.69	2
043	1837261	LEVEL ROD	1837261 LEVEL ROD ASTA LIVELLO	$325.06	1
044	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	$20.87	1
