Timing System 2

Lamborghini Diablo GT (1999-2000)

Find Your Part

Lamborghini Diablo GT (1999-2000) - Timing System 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

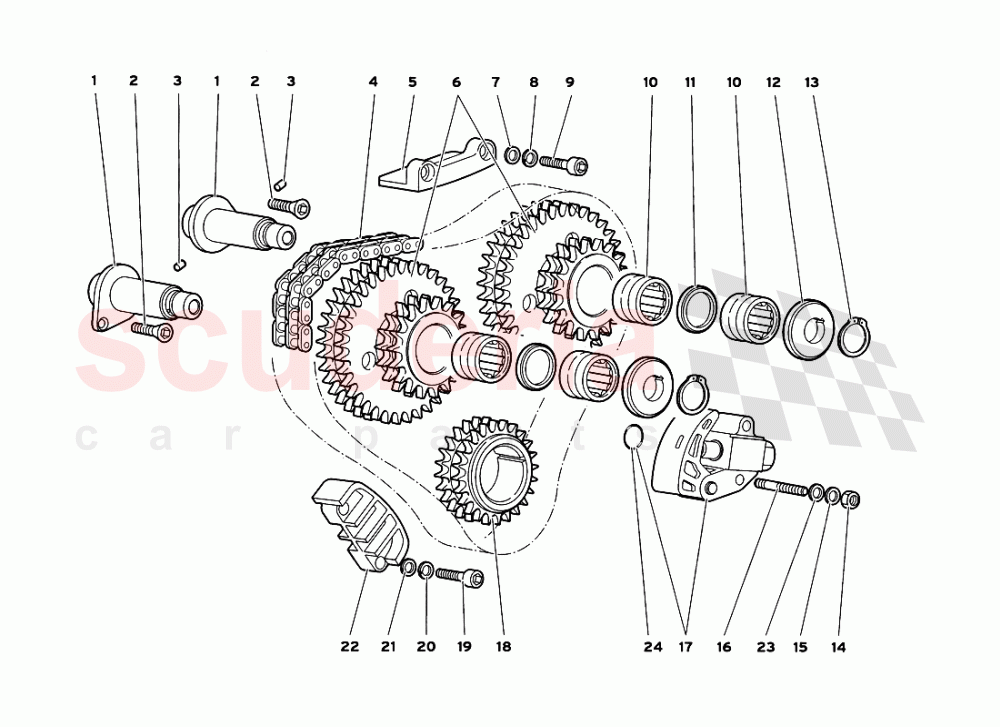

Timing System 2 of Lamborghini Lamborghini Diablo GT (1999-2000) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 1232199
PIN
PERNO 		- 2 Enquire
002 WHT003068
COUNTERSUNK BOLT
VITE
IN STOCK 		$1.34 (81.3% off) 2
003 8850302
PIN - SPINA
SA 		- 2 Enquire
004 12001137
CHAIN
CATENA INFERIORE DISTR. 		- 1 Enquire
005 7M109201
Guide
GUIDA 		$68.36 1
006 7M109569
GEAR
INGRANAGGIO 		$1,605.22 2
007 1231040
WASHER
RONDELLA 		- 2 Enquire
008 8410820
WASHER
RONDELLA 		$0.18 (97.6% off) 2
009 8700850
SCREW
VITE 		- 2 Enquire
010 8522508
BEARING
CUSCINETTO 		- 4 Enquire
011 7M109135
SPACER
DISTANZIALE 		$204.55 2
012 12004032
WASHER
RONDELLA Dl RITEGNO 		- 2 Enquire
013 WHT002646
RETAINING RING
ANELLO RITEGNO
IN STOCK 		$1.02 (85.9% off) 2
014 N01100637
NUT M6
DADO
IN STOCK 		$0.31 (95.7% off) 2
015 8410602
WASHER
RONDELLA
IN STOCK 		$42.03 2
016 8300660
STUD BOLT
PRIGIONIERO 		$14.10 2
017 7M109077A
CHAIN TIGHTENER WITH RING
TENDICATENA 		$771.58 1
018 1232196
GEAR
INGRANAGGIO COMANDO DISTR. 		$2,928.59 1
019 8700848
SCREW
VITE 		- 2 Enquire
020 8410820
WASHER
RONDELLA 		$0.18 (97.6% off) 2
021 N0122094
WASHER
RONDELLA
IN STOCK 		$1.45 (79.7% off) 2
022 7M109203
Guide
GUIDA
IN STOCK 		$1,919.53 1
023 N01152427
WASHER
RONDELLA
IN STOCK 		$0.28 2
024 8601501
SEAL
(Also Included In The Engine Gasket Kit) ANELLO Dl TENUTA 		$5.46 (9% off) 1
