Crankase and Lower Mounting of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

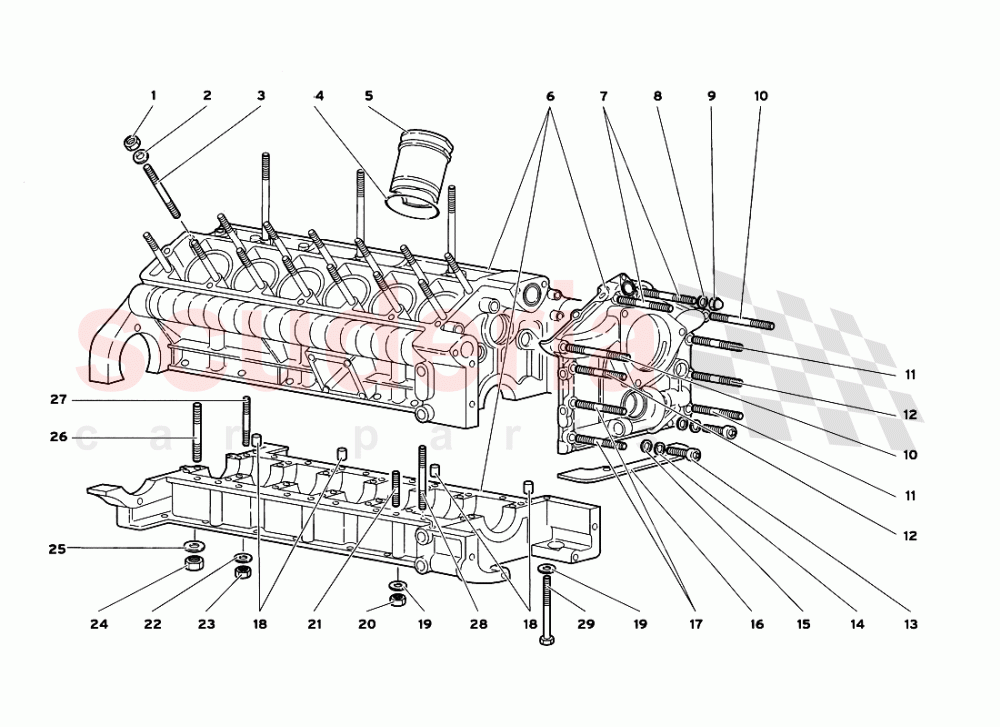

Lamborghini Diablo GT (1999-2000) - Crankase and Lower Mounting

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1120924	CAP NUT IN STOCK	1120924 CAP NUT DADO IN STOCK	$34.13 MSRP: ~~38.15~~ (10.5% off)	28
002	8401230	WASHER IN STOCK	8401230 WASHER RONDELLA IN STOCK	$54.39	28
003	1824761	STUD BOLT	1824761 STUD BOLT PRIGIONIERO	$96.02	28
004	WHT003085	SEAL RING	WHT003085 SEAL RING (Also Included In The Engine Gaskets Kit) ANELLO TENUTA	$4.14 MSRP: ~~7.06~~ (41.4% off)	12
005	1829442	CYLINDER	1829442 CYLINDER CILINDRO	$442.33 MSRP: ~~479.00~~ (7.7% off)	12
007	8300904	STUD	8300904 STUD PRIGIONIERO 45 MM	$26.58 MSRP: ~~29.70~~ (10.5% off)	2
008	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.45 MSRP: ~~7.15~~ (79.7% off)	9
009	8200816	NUT	8200816 NUT DADO	$4.81	9
010	8300905	STUD	8300905 STUD PRIGIONIERO 55 MM	$17.41 MSRP: ~~19.45~~ (10.5% off)	2
011	8300902	STUD BOLT	8300902 STUD BOLT PRIGIONIERO 35 MM	$8.66 MSRP: ~~9.55~~ (9.3% off)	4
012	N0444416	STUD BOLT IN STOCK	N0444416 STUD BOLT PRIGIONIERO 40 MM IN STOCK	$3.67 MSRP: ~~7.04~~ (47.9% off)	2
013	8700822	SCREW	8700822 SCREW VITE	$0.71 MSRP: ~~7.29~~ (90.3% off)	2
014	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	2
015	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.45 MSRP: ~~7.15~~ (79.7% off)	2
016	1232219	GASKET	1232219 GASKET (Also Included In The Engine Gaskets Kit) GUARNIZIONE	$4.41 MSRP: ~~4.85~~ (9.1% off)	1
017	8300902	STUD BOLT	8300902 STUD BOLT PRIGIONIERO 35 MM	$8.66 MSRP: ~~9.55~~ (9.3% off)	2
018	8851105	DOWEL	8851105 DOWEL GRAND	-	4	Enquire
019	8410815	WASHER	8410815 WASHER RONDELLA	$0.21 MSRP: ~~7.37~~ (97.2% off)	15
020	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.95	13
021	8300826	STUD BOLT	8300826 STUD BOLT PRIGIONIERO 35 MM	$10.89	2
021	8300803	STUD BOLT	8300803 STUD BOLT PRIGIONIERO 25 MM	$12.68	10
022	8400820	WASHER	8400820 WASHER RONDELLA	$16.74	14
023	8200805	NUT	8200805 NUT DADO	$0.13	14
024	8201221	NUT	8201221 NUT DADO	$3.03	14
025	8401227	WASHER	8401227 WASHER RONDELLA	$15.72	14
026	8301238	STUD BOLT	8301238 STUD BOLT PRIGIONIERO	$15.72	14
027	8300917	STUD BOLT	8300917 STUD BOLT PRIGIONIERO	$12.01	14
028	8300884	STUD	8300884 STUD PRIGIONIERO 95 MM	$31.22 MSRP: ~~34.85~~ (10.4% off)	1
029	8100871	SCREW	8100871 SCREW VITE 95 MM	$3.89 MSRP: ~~4.30~~ (9.5% off)	2
