Climate Control (Valid For Gb & Australia - March 2001) 1

Lamborghini Diablo VT 6.0 (2000-2001)

Find Your Part

Lamborghini Diablo VT 6.0 (2000-2001) - Climate Control (Valid for GB & Australia - March 2001) 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

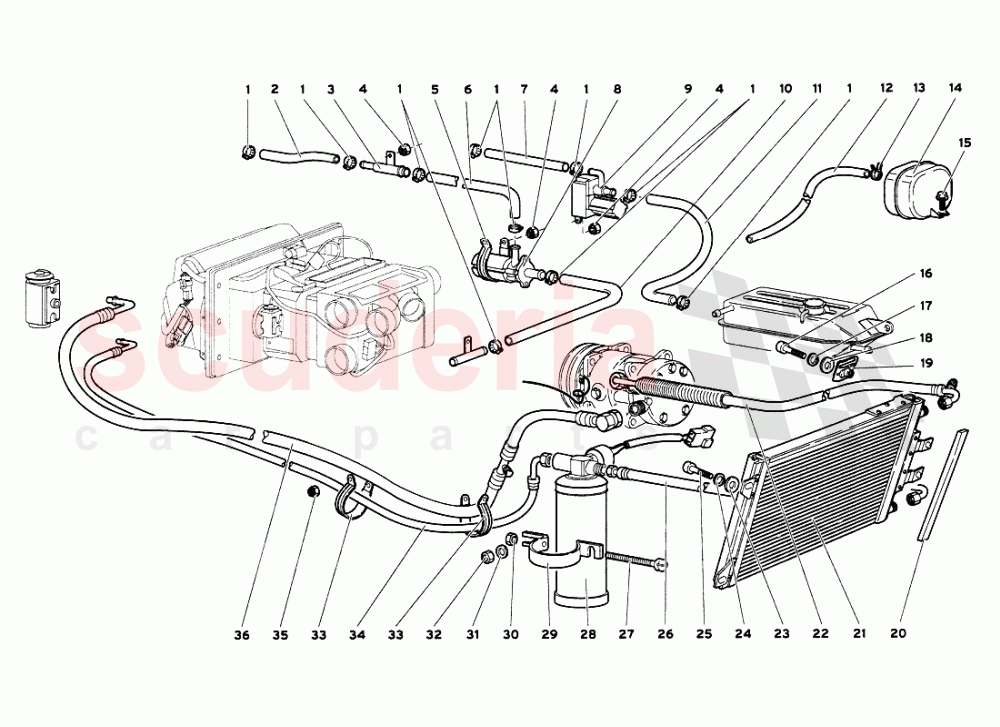

Climate Control (Valid for GB & Australia - March 2001) 1 of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 8831524
STRAP
(Valid for GB & AUSTRALIA - March 2001) 		- 8 Enquire
002 45007992
PIPE
(Valid for GB & AUSTRALIA - March 2001) 		$46.60 1
003 410819377
CONNECTOR
(Valid for GB & AUSTRALIA - March 2001) 		$91.70 1
004 N01118312
HEXAGON NUT, SELF-LOCKING
(Valid for GB & AUSTRALIA - March 2001)
IN STOCK 		$2.07 3
005 8834401
CLAMP
(Valid for GB & AUSTRALIA - March 2001) 		$12.04 (10.8% off) 2
006 45006942
PIPE
(Valid for GB & AUSTRALIA - March 2001) 		$55.56 1
007 45007993
PIPE
(Valid for GB & AUSTRALIA - March 2001) 		$69.59 (8.1% off) 1
008 45006135
PUMP
(Valid for GB & AUSTRALIA - March 2001) 		- 1 Enquire
009 410260155
SOLENOID VALVE
(Valid for GB & AUSTRALIA - March 2001) 		$393.71 1
010 45006941
PIPE
(Valid for GB & AUSTRALIA - March 2001) 		$44.52 (8.2% off) 1
011 45006945
PIPE
(Valid for GB & AUSTRALIA - March 2001) 		$62.22 (8.2% off) 1
012 6231411
PIPE
(Valid for GB & AUSTRALIA - March 2001) (Not valid for USA or CANADA) 		$11.52 (8.6% off) 1
013 8830128
CLAMP
(Valid for GB & AUSTRALIA - March 2001) (Not valid for USA or CANADA) 		$0.43 2
014 1323406
VACUUM TANK
(Valid for GB & AUSTRALIA - March 2001) (Not valid for USA or CANADA) 		$42.17 (8.1% off) 1
015 N90319404
SCREW
(Valid for GB & AUSTRALIA - March 2001) (Not valid for USA or CANADA)
IN STOCK 		$2.07 2
016 8700614
SCREW
(Valid for GB & AUSTRALIA - March 2001) 		$0.25 2
017 WHT002963
WASHER
(Valid for GB & AUSTRALIA - March 2001)
IN STOCK 		$0.12 (98.4% off) 2
018 WHT002961
WASHER
(Valid for GB & AUSTRALIA - March 2001)
IN STOCK 		$0.39 2
019 N90327506
SPEED NUT
(Valid for GB & AUSTRALIA - March 2001)
IN STOCK 		$1.23 2
020 63700313
GASKET
(Valid for GB & AUSTRALIA - March 2001) 		- 2 Enquire
021 45001234
A/C CONDENSER
(Valid for GB & AUSTRALIA - March 2001) 		$1,391.90 (10.8% off) 1
022 45006131
PIPE
(Valid for GB & AUSTRALIA - March 2001) 		$218.78 1
023 WHT002961
WASHER
(Valid for GB & AUSTRALIA - March 2001)
IN STOCK 		$0.39 4
024 WHT002963
WASHER
(Valid for GB & AUSTRALIA - March 2001)
IN STOCK 		$0.12 (98.4% off) 4
025 8700614
SCREW
(Valid for GB & AUSTRALIA - March 2001) 		$0.25 4
026 45006130
PIPE
(Valid for GB & AUSTRALIA - March 2001) 		$154.16 (8.2% off) 1
027 8700542
SCREW
(Valid for GB & AUSTRALIA - March 2001) 		$0.63 (91.3% off) 1
028 45003629
FILTER
(Valid for GB & AUSTRALIA - March 2001) 		$240.44 1
029 4531395
STRAP
(Valid for GB & AUSTRALIA - March 2001) 		$8.31 (10.6% off) 1
030 N0211963
NUT
(Valid for GB & AUSTRALIA - March 2001)
IN STOCK 		$0.72 1
031 N90179103
WASHER 18X8,4X2,5
(Valid for GB & AUSTRALIA - March 2001)
IN STOCK 		$1.43 2
032 N0111849
NUT
(Valid for GB & AUSTRALIA - March 2001)
IN STOCK 		$2.12 (70.8% off) 2
033 8834401
CLAMP
(Valid for GB & AUSTRALIA - March 2001) 		$12.04 (10.8% off) 6
034 45007990
PIPE
(Valid for GB & AUSTRALIA - March 2001) 		$152.42 (11.1% off) 1
035 N01118312
HEXAGON NUT, SELF-LOCKING
(Valid for GB & AUSTRALIA - March 2001)
IN STOCK 		$2.07 8
036 45007991
PIPE
(Valid for GB & AUSTRALIA - March 2001) 		$329.01 (10.8% off) 1
