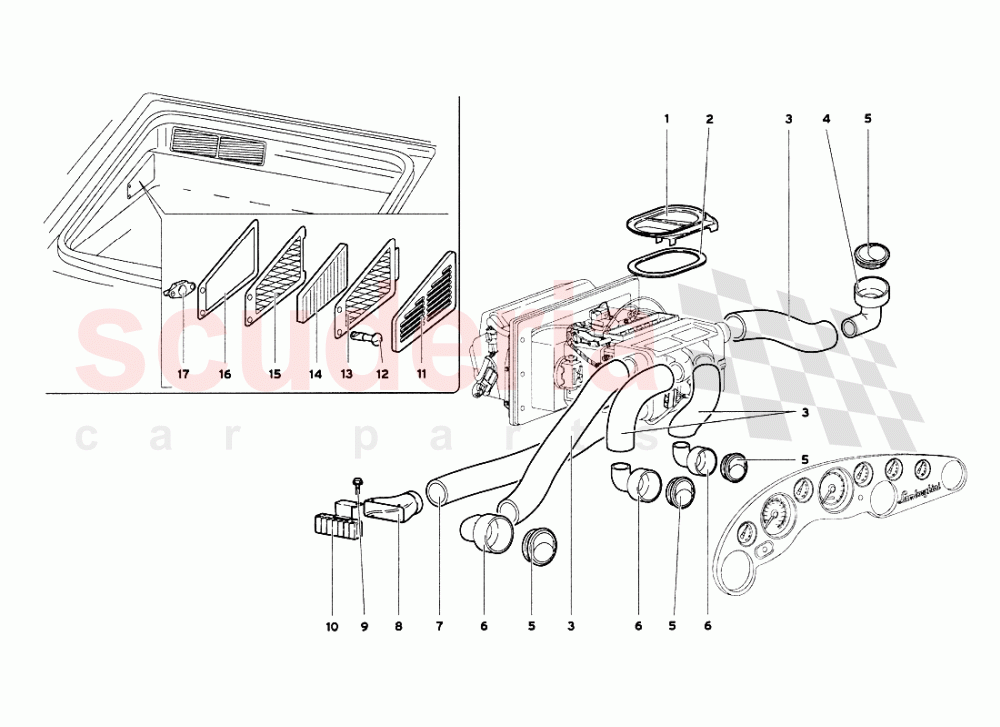

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	69005594	CENTRAL VENT	69005594 CENTRAL VENT	-	1	Enquire
002	69005083	GASKET	69005083 GASKET	-	1	Enquire
003	45003634	PIPE	45003634 PIPE	$53.88	2
004	7014135	CONNECTION	7014135 CONNECTION	-	1	Enquire
005	9914500	AIR VENT	9914500 AIR VENT	$76.23 MSRP: ~~82.70~~ (7.8% off)	4
006	7114006	SUPPORT	7114006 SUPPORT	-	3	Enquire
007	45003635	PIPE	45003635 PIPE	$27.05	1
008	78006875	OUTLET	78006875 OUTLET	-	1	Enquire
009	N90319404	SCREW IN STOCK	N90319404 SCREW IN STOCK	$2.07	2
010	78006876	GRILLE	78006876 GRILLE	$61.22 MSRP: ~~66.50~~ (7.9% off)	1
011	65008986	LH TRIM	65008986 LH TRIM	-	1	Enquire
011	65008985	RH TRIM	65008985 RH TRIM	-	1	Enquire
012	4131085	PIN	4131085 PIN	-	4	Enquire
013	41006830	RH COVER GRID	41006830 RH COVER GRID	-	1	Enquire
013	410805391	LEFT CLOSING GRID	410805391 LEFT CLOSING GRID	$52.51	1
014	410820367A	Pollen Filter IN STOCK	410820367A Pollen Filter replaces 0045006134 IN STOCK	$59.03	2
014	45006134	AIR FILTER	45006134 AIR FILTER not as spare part - use part number: 410820367A	-	2	Enquire
015	410805396	LEFT SUPPORT	410805396 LEFT SUPPORT	$132.38	1
015	410805395	RIGHT SUPPORT	410805395 RIGHT SUPPORT	$132.38	1
016	410805349	RH GASKET	410805349 RH GASKET	$21.43	1
016	9490205	LEFT GASKET	9490205 LEFT GASKET	-	1	Enquire
017	4131086	SECURING DEVICE	4131086 SECURING DEVICE	-	4	Enquire
