Lamborghini Diablo VT 6.0 (2000-2001) - Radiators and Electric Fans

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

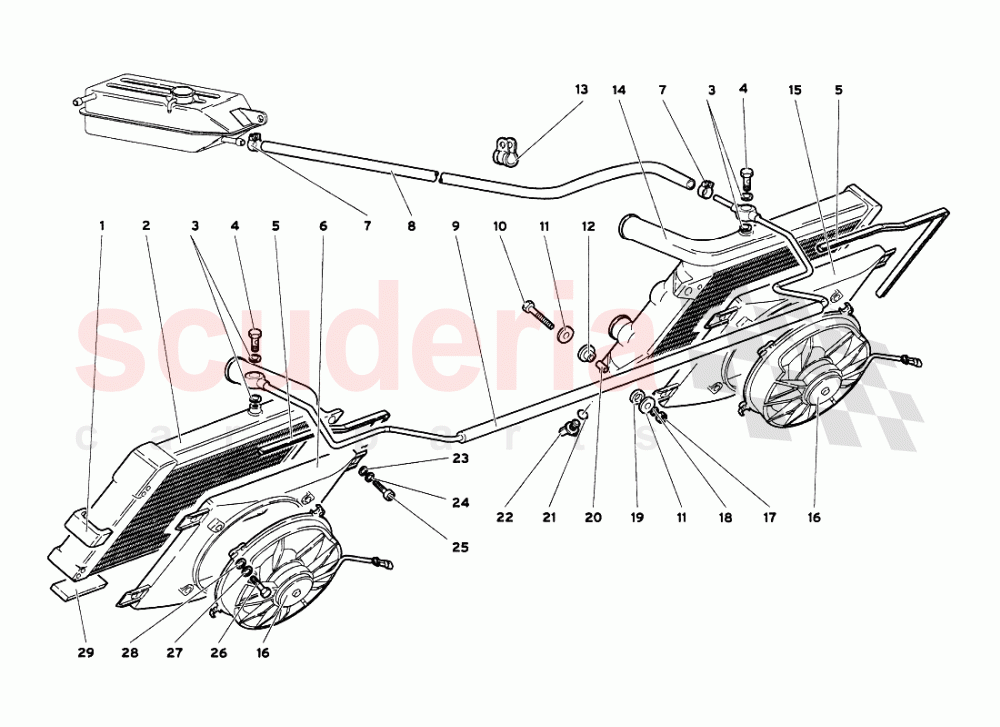

Radiators and Electric Fans of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 1733004
GASKET 		$20.20 (10.4% off) 4
002 1735035
LH RADIATOR 		$2,924.13 1
003 8400818
WASHER
(Includes the engine gasket kit & cover gasket kit) 		- 4 Enquire
004 WHT000524
BANJO BOLT 		$26.20 2
005 410121539
GASKET 		$54.55 2
006 410121333
LEFT CONVEYOR 		$417.57 1
007 8830817
CLAMP 		$2.05 2
008 1735264
PIPE 		$15.58 (7.8% off) 1
009 17006959
VENT PIPE 		$773.34 (10.8% off) 1
010 8100824
SCREW 		$1.29 (81.9% off) 4
011 WHT001942
WASHER
IN STOCK 		$3.08 8
012 1733266
RUBBER BUSHING 		$6.82 4
013 8831515
CLAMP 		$9.34 1
014 1735034
RH RADIATOR 		$4,403.08 1
015 410121334A
RH CONVEYOR
CONVOGLIATORE DESTRO 		$1,510.93 1
016 17017063
ELECTROFAN 		$1,002.56 2
017 N0111849
NUT
IN STOCK 		$2.13 (70.6% off) 4
018 N90179103
WASHER 18X8,4X2,5
IN STOCK 		$1.44 4
019 WHT001189
PLASTIC WASHER
IN STOCK 		$5.89 4
020 400121277
DISTANCE PIECE 		$9.79 4
021 8600906
SEAL 		- 2 Enquire
022 410121299
PLUG 		$218.18 2
023 WHT002961
WASHER
IN STOCK 		$0.39 8
024 WHT003213
WASHER 		$1.25 (82.5% off) 8
025 8700644
SCREW 		$0.35 (95.2% off) 8
026 8100502
SCREW
IN STOCK 		$0.15 8
027 8410502
WASHER 		$0.07 (99.1% off) 8
028 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System) 		$7.08 8
029 1731451
GASKET 		$13.67 (7.9% off) 2
