Fuel System (Valid For June 1992 Version) 3

Lamborghini Diablo (1990-1998)

Find Your Part

Lamborghini Diablo (1990-1998) - Fuel System (Valid for June 1992 Version) 3

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

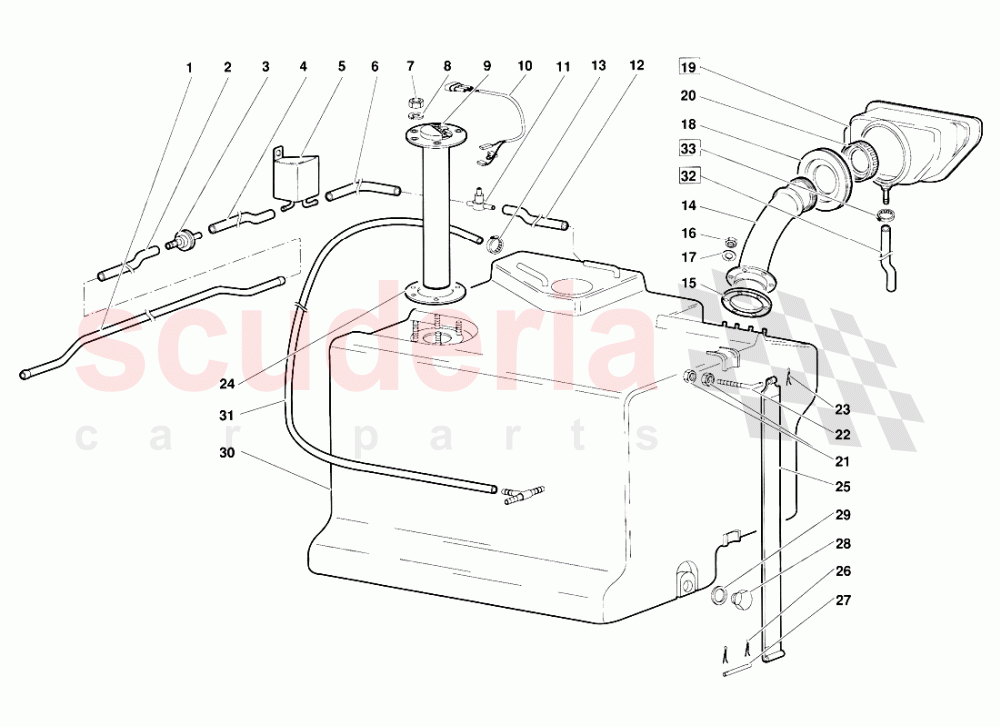

Fuel System (Valid for June 1992 Version) 3 of Lamborghini Lamborghini Diablo (1990-1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 6231441
PIPE
(Valid for June 1992 version) TUBO IN RAME 		$432.10 1
002 6231442
PIPE
(Valid for June 1992 version) TUBO 		$6.63 1
003 6229379
SAFETY VALVE
(Valid for June 1992 version) VALVOLA Dl SOVRAPRESSIONE 		$121.23 1
004 6230435
PIPE
(Valid for June 1992 version) TUBO 		$8.00 1
005 6231444
VAPOUR TANK
(Valid for June 1992 version) SEPARATORE VAPORI BENZINA 		- 1 Enquire
006 6230437
PIPE
(Valid for June 1992 version) TUBO 		- 1 Enquire
007 8200501
NUT
(Valid for June 1992 version) DADO 		$0.06 5
008 8410502
WASHER
(Valid for June 1992 version) RONDELLA 		$0.07 (99.1% off) 5
009 6229648
LEVEL GAUGE
(Valid for June 1992 version) INDICATORE LIVELLO 		$318.31 (52.2% off) 1
010 6130617
ELECT CABLE
(Valid for June 1992 version) CABLAGGIO GALLEGGIANTE 		$33.55 1
011 6230531
SAFETY VALVE
(Valid for June 1992 version) VALVOLA SICUREZZA 		$272.94 1
012 6230438
PIPE
(Valid for June 1992 version) TUBO 		$13.29 1
013 N0245097
CLAMP
(Valid for June 1992 version) FASCETTA 		$16.94 2
014 6221128
UNION
(Valid for June 1992 version) TUBO INTRODUZIONE 		$1,856.83 1
015 6205360
GASKET
(Valid for June 1992 version) GUARNIZIONE
IN STOCK 		$130.40 1
016 N01100412
HEXAGON NUT
(Valid for June 1992 version) DADO 		- 6 Enquire
017 WHT003052
WASHER 4,3
(Valid for June 1992 version) RONDELLA
IN STOCK 		$3.50 (52.6% off) 6
018 9409215
GASKET
(Valid for June 1992 version) GUARNIZIONE 		$30.40 (11.4% off) 1
019 9490517
CASE
(Valid for June 1992 version) SCATOLA (dalla 1 2471 sostit. 0094905,06) 		- 1 Enquire
020 400201587A
Fuel Filler Plug
(Valid for June 1992 version) TAPPO SERBATOIO
IN STOCK 		$903.76 1
021 N01100845
HEXAGON NUT
(Valid for June 1992 version) DADO
IN STOCK 		$1.93 2
022 6226884
TIE ROD
(Valid for June 1992 version) TIRANTE 		- 1 Enquire
023 8820304
SPLIT PIN
(Valid for June 1992 version) COPIGLIA 		$1.68 (76.3% off) 1
024 6229649
FUEL LEVEL GAUGE FLANGE SEAL
(Valid for June 1992 version) GUARNIZIONE
IN STOCK 		$27.65 1
025 6229506
STRAP
(Valid for June 1992 version) TIRANTE 		$36.25 (8.2% off) 1
026 8820201
SPLIT PIN
(Valid for June 1992 version) COPIGLIA 		$6.04 (8.5% off) 2
027 6231344
PIN
(Valid for June 1992 version) PERNO
IN STOCK 		$302.94 1
028 8931203
PLUG
(Valid for June 1992 version) TAPPO Dl SCARICO 		$25.28 (8.2% off) 1
029 WHT003362
WASHER
(Valid for June 1992 version) RONDELLA
IN STOCK 		$1.32 (81.6% off) 1
030 6229504
FUEL TANK
(Valid for June 1992 version) SERBATOIO COMBUSTIBILE 		- 1 Enquire
031 6230215
PIPE
(Valid for June 1992 version) TUBO 		$124.11 1
032 9490516
PIPE
(Valid for June 1992 version) TUBO (dalla 12471 sostit. 009490513) 		$12.30 (8.6% off) 1
033 8832205
STRAP
(Valid for June 1992 version) FASCETTA (dalla 12471) 		$19.14 (11% off) 1
