Fuel System (Valid for June 1992 Version) 1 of Lamborghini Lamborghini Diablo (1990-1998)

View All

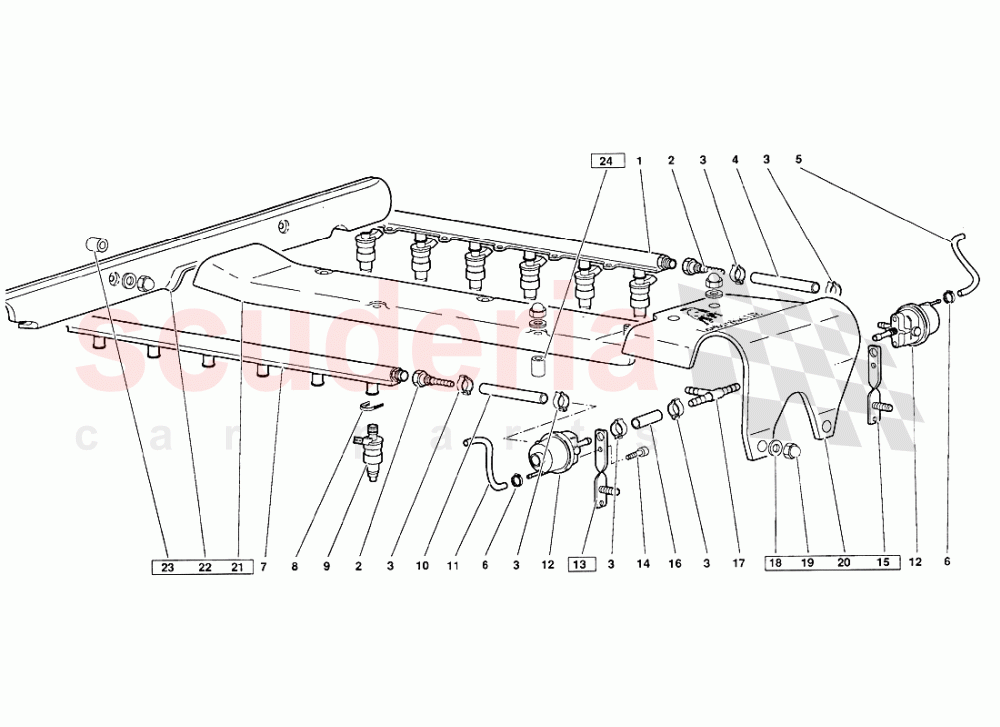

Lamborghini Diablo (1990-1998) - Fuel System (Valid for June 1992 Version) 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2027643	INJECTOR ASSEMBLY	2027643 INJECTOR ASSEMBLY (Valid for June 1992 version) ASSIEME TUBAZIONE INIETTORI	$4,151.93	2
002	6227630	CONNECTION	6227630 CONNECTION (Valid for June 1992 version) RACCORDO	$13.94	2
003	8830902	STRAP	8830902 STRAP (Valid for June 1992 version) FASCETTA	$5.33	8
004	2030229	PIPE	2030229 PIPE (Valid for June 1992 version) TUBO	$196.46	1
005	1330451	PIPE	1330451 PIPE (Valid for June 1992 version) TUBO	$54.22	1
006	8830128	CLAMP	8830128 CLAMP (Valid for June 1992 version) FASCETTA	$0.43	2
007	2027643	INJECTOR ASSEMBLY	2027643 INJECTOR ASSEMBLY (Valid for June 1992 version) TUBAZIONE RIGIDA	$4,151.93	2
008	2027642	CLIP	2027642 CLIP (Valid for June 1992 version) MOLLETTA	-	2	Enquire
009	2024396	INJECTOR	2024396 INJECTOR (Valid for June 1992 version) INIETTORE	$324.09	12
010	2030231	PIPE	2030231 PIPE (Valid for June 1992 version) TUBO	-	1	Enquire
011	1330452	PIPE	1330452 PIPE (Valid for June 1992 version) TUBO	-	1	Enquire
012	2027648	PRESSURE REGULATOR IN STOCK	2027648 PRESSURE REGULATOR (Valid for June 1992 version) REGOLATORE PRESSIONE IN STOCK	$930.17	2
013	2032830	SUPPORT - (Valid for June 1992 version) SUPPORTO SINISTRO	2032830 SUPPORT - (Valid for June 1992 version) SUPPORTO SINISTRO (Valid for June 1992 version) O SINISTRO	$228.93	1
014	8700643	SCREW	8700643 SCREW (Valid for June 1992 version) VITE	$0.37 MSRP: ~~7.32~~ (94.9% off)	2
015	2032829	SUPPORT - (Valid for June 1992 version) SUPPORTO DESTRO	2032829 SUPPORT - (Valid for June 1992 version) SUPPORTO DESTRO (Valid for June 1992 version) O DESTRO	$228.93	1
016	2030233	PIPE	2030233 PIPE (Valid for June 1992 version) TUBO	$369.95	2
017	2032279	CONNECTION	2032279 CONNECTION (Valid for June 1992 version) RACCORDO A TRE VIE	$47.40	1
018	N01152427	WASHER IN STOCK	N01152427 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$0.28	10
019	8200620	NUT	8200620 NUT (Valid for June 1992 version) DADO	$7.38 MSRP: ~~8.25~~ (10.5% off)	10
020	2032408	SHIELD	2032408 SHIELD (Valid for June 1992 version) PROTEZIONE REGOLAT.I PRESSIONE	-	1	Enquire
021	1632838	SHIELD	1632838 SHIELD (Valid for June 1992 version) PROTEZIONE CABLAGGIO INIEZIONE	-	1	Enquire
022	1631652	SHIELD	1631652 SHIELD (Valid for June 1992 version) PROTEZIONE CABL. SU PARAFIAMMA	$196.06	1
023	1632588	SPACER	1632588 SPACER (Valid for June 1992 version) DISTANZIALE	$9.81	2
024	1331681	SPACER	1331681 SPACER (Valid for June 1992 version) DISTANZIALE	$17.66	4
