Rear Suspension of Lamborghini Lamborghini Diablo (1990-1998)

View All

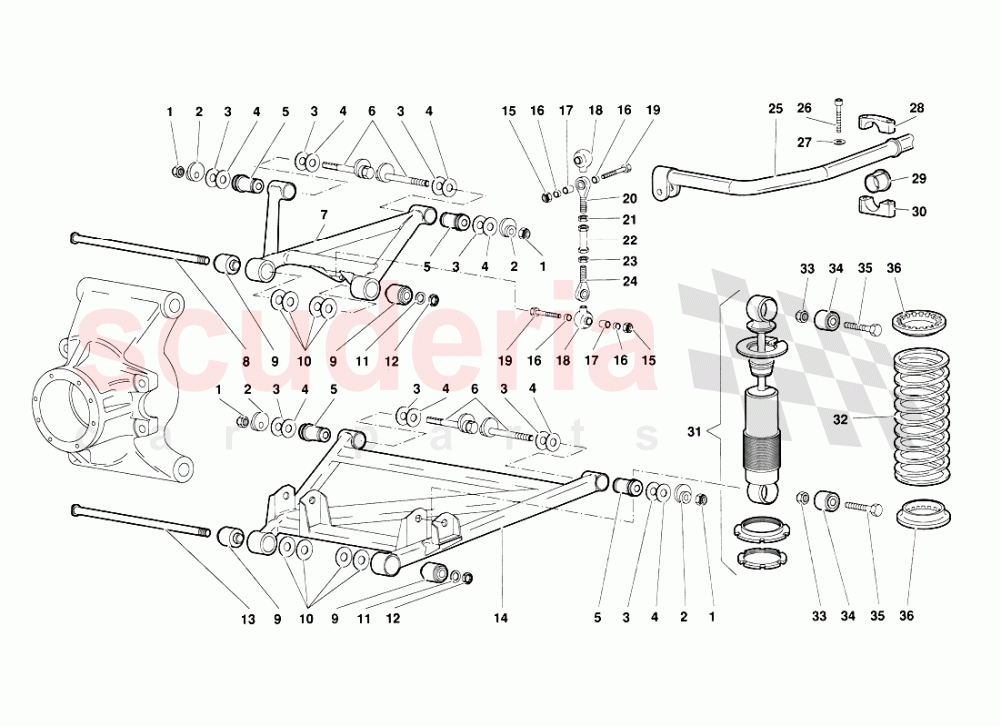

Lamborghini Diablo (1990-1998) - Rear Suspension

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT003355	NUT M12X1,25 IN STOCK	WHT003355 NUT M12X1,25 DADO IN STOCK	$20.46	8
002	410407127A	BOLT	410407127A BOLT ECCENTRICO	$2,169.41	8
003	8401235	SHIM	8401235 SHIM SPESSORE Dl REGISTRO SP = 1 MM	$0.15	1
004	8401236	SHIM	8401236 SHIM SPESSORE Dl REGISTRO SP = 0.5 MM	$0.08	1
005	8921206	RESILIENT BUSHING	8921206 RESILIENT BUSHING BOCCOLA ELASTICA	$46.68	8
006	410407127A	BOLT	410407127A BOLT PERNO CON ECCENTRICO	$2,169.41	8
007	5225909	ARM	5225909 ARM BRACCIO SUPERIORE SINISTRO	$2,483.99	1
007	5225908	RH UPPER SUSPENSION ARM	5225908 RH UPPER SUSPENSION ARM	$2,215.92	1
008	5225204	PIN	5225204 PIN PERNO	$85.19 MSRP: ~~92.50~~ (7.9% off)	2
009	5225207	RESILIENT BUSHING	5225207 RESILIENT BUSHING BOCCOLA ELASTICA	$421.69	8
010	8401710	WASHER	8401710 WASHER SPESSORE Dl REGISTRO	$38.46	16
011	8401708	WASHER	8401708 WASHER RONDELLA	$2.37 MSRP: ~~2.55~~ (7.1% off)	4
012	8251702	PLUG IN STOCK	8251702 PLUG GHIERA IN STOCK	$3.57 MSRP: ~~3.95~~ (9.6% off)	4
013	5225205	PIN	5225205 PIN PERNO	$85.19 MSRP: ~~92.50~~ (7.9% off)	2
014	5225906	ARM	5225906 ARM BRACCIO INFERIORE DESTRO	$1,846.63	1
014	5225907	ARM	5225907 ARM BRACCIO INFERIORE SINISTRO	$1,826.45	1
015	N0111849	NUT IN STOCK	N0111849 NUT DADO IN STOCK	$2.12 MSRP: ~~7.25~~ (70.8% off)	4
016	5227297	BUSHING	5227297 BUSHING BOCCOLA	$30.02	8
017	5227298	BUSHING	5227298 BUSHING BOCCOLA	$16.35 MSRP: ~~17.80~~ (8.1% off)	4
018	5109714	BOOT	5109714 BOOT CAPPUCCIO	$24.36	4
019	8100807	SCREW	8100807 SCREW VITE	$0.77 MSRP: ~~7.27~~ (89.4% off)	4
020	417801931A	BALL JOINT	417801931A BALL JOINT GlUNTO SFERICO	$248.11	2
021	8201014	NUT	8201014 NUT DADO	$5.71	1
022	5209770	TIE ROD	5209770 TIE ROD TIRANTE	$105.91 MSRP: ~~115.00~~ (7.9% off)	1
023	8201016	NUT	8201016 NUT DADO	$21.12	2
024	5227295	BALL JOINT	5227295 BALL JOINT GlUNTO SFERICO	$141.69	2
025	5230211	STABILIZER BAR	5230211 STABILIZER BAR BARRA STABILIZZATRIC	$1,317.46	1
026	8700609	SCREW	8700609 SCREW VITE	$0.50 MSRP: ~~7.31~~ (93.2% off)	4
027	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.63	8
028	5230256	RETAINER	5230256 RETAINER CAVALLOTTO	-	2	Enquire
029	5238302	BUSHING IN STOCK	5238302 BUSHING BOCCOLA IN STOCK	$134.36	2
030	5230257	RETAINER	5230257 RETAINER CAVALLOTTO	-	2	Enquire
031	5229803	SHOCK ABSORBER	5229803 SHOCK ABSORBER AMMORTIZZATORE POSTERIORE	$1,243.34	4
032	5226158	SPRING	5226158 SPRING MOLLA	$631.97	4
033	8201206	NUT	8201206 NUT DADO	$5.47	8
034	410512383	FLEXIBLE BUSHING	410512383 FLEXIBLE BUSHING	$549.84	4
035	8101274	SCREW	8101274 SCREW VITE	$5.94	8
036	410512385	RUBBER RING	410512385 RUBBER RING	$49.57	8
