Lamborghini Diablo (1990-1998) - Steering (Valid for June 1992 Version) 2

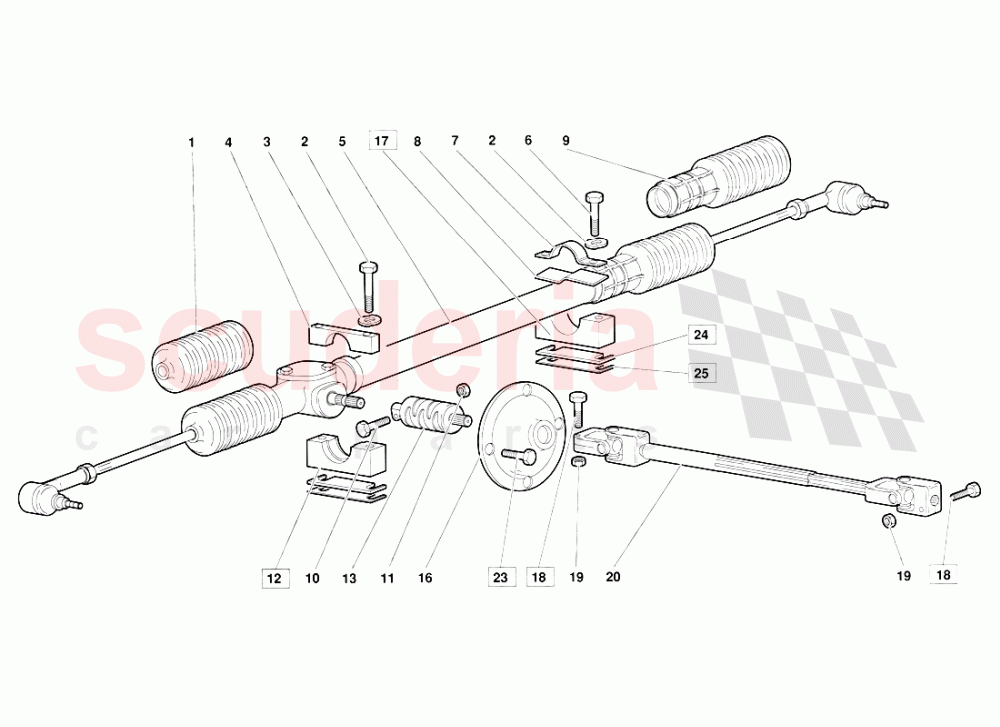

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4329544	BOOT	4329544 BOOT (Valid for June 1992 version) CUFFIA	$18.72	1
002	8101045	SCREW	8101045 SCREW (Valid for June 1992 version) VITE	$0.82	2
003	WHT000768	WASHER IN STOCK	WHT000768 WASHER IN STOCK	$1.83 MSRP: ~~7.28~~ (74.9% off)	4
004	4324742	RETAINER	4324742 RETAINER (Valid for June 1992 version) CAVALLOTTO	$189.95	1
005	4329542	RACK	4329542 RACK (Valid for June 1992 version) ASSIEME CREMAGLIERA	$1,622.48	1
006	8101018	SCREW	8101018 SCREW (Valid for June 1992 version) VITE	$0.53 MSRP: ~~7.28~~ (92.7% off)	2
007	4313892	RETAINER	4313892 RETAINER (Valid for June 1992 version) CAVALLOTTO	$103.23	1
008	4324743	FLEX PAD	4324743 FLEX PAD (Valid for June 1992 version) SPESSORE IN COMMA	$11.10	1
009	4329545	BOOT	4329545 BOOT (Valid for June 1992 version) CUFFIA	$270.23	1
010	8100636	SCREW	8100636 SCREW (Valid for June 1992 version) VITE	$0.18 MSRP: ~~7.37~~ (97.6% off)	1
011	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING (Valid for June 1992 version) DADO IN STOCK	$2.07	1
012	4326049	RETAINER	4326049 RETAINER (Valid for June 1992 version) CAVALLOTTO (fino 12639)	$95.04	1
012	4333029	RETAINER	4333029 RETAINER (Valid for June 1992 version) CAVALLOTTO (dalla 12640)	-	1	Enquire
013	4330155	COUPLING	4330155 COUPLING (Valid for June 1992 version) GIUNTO COLLASSABILE	$258.11	1
014	8400620	WASHER	8400620 WASHER (Valid for June 1992 version) RONDELLA (particolare eliminato)	$1.40 MSRP: ~~7.38~~ (81% off)	4
015	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING (Valid for June 1992 version) DADO (particolare eliminato) IN STOCK	$2.07	4
016	410422326	GASKET	410422326 GASKET (Valid for June 1992 version) FLANGIA	$253.92	1
017	4326048	RETAINER	4326048 RETAINER (Valid for June 1992 version) CAVALLOTTO (fino 12639)	$90.19	1
017	4333028	RETAINER	4333028 RETAINER (Valid for June 1992 version) CAVALLOTTO (dalla12640) (particolare intercambiabile se montato assieme agli spessori 004333030 e 004333035)	-	1	Enquire
018	N01033520	SCREW M8X35 IN STOCK	N01033520 SCREW M8X35 (Valid for June 1992 version) VITE (sostituisce 008100807) IN STOCK	$3.14 MSRP: ~~7.19~~ (56.3% off)	2
019	N0111849	NUT IN STOCK	N0111849 NUT (Valid for June 1992 version) DADO IN STOCK	$2.13 MSRP: ~~7.25~~ (70.6% off)	2
020	4329850	JOINTED SHAFT	4329850 JOINTED SHAFT (Valid for June 1992 version) ALBERO SNODATO	-	1	Enquire
023	8700673	SCREW	8700673 SCREW (Valid for June 1992 version) VITE (sostituisce 008400620 e 008200606)	$10.72	4
024	4333030	SHIM	4333030 SHIM (Valid for June 1992 version) SPESSORE Dl REGISTRO SP 1 mm (dalla 12640) (particolari da accoppiare ai cavallotti 004333029 e 004333028)	$1.80	10
025	4333035	SHIM	4333035 SHIM (Valid for June 1992 version) SPESSORE Dl REGISTRO SP 0.5 mm (dalla 12640) (particolari da accoppiare ai cavallotti 004333029 e 004333028)	$1.67	4
