Lamborghini Diablo (1990-1998) - Front Suspension (Valid for June 1992 Version)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

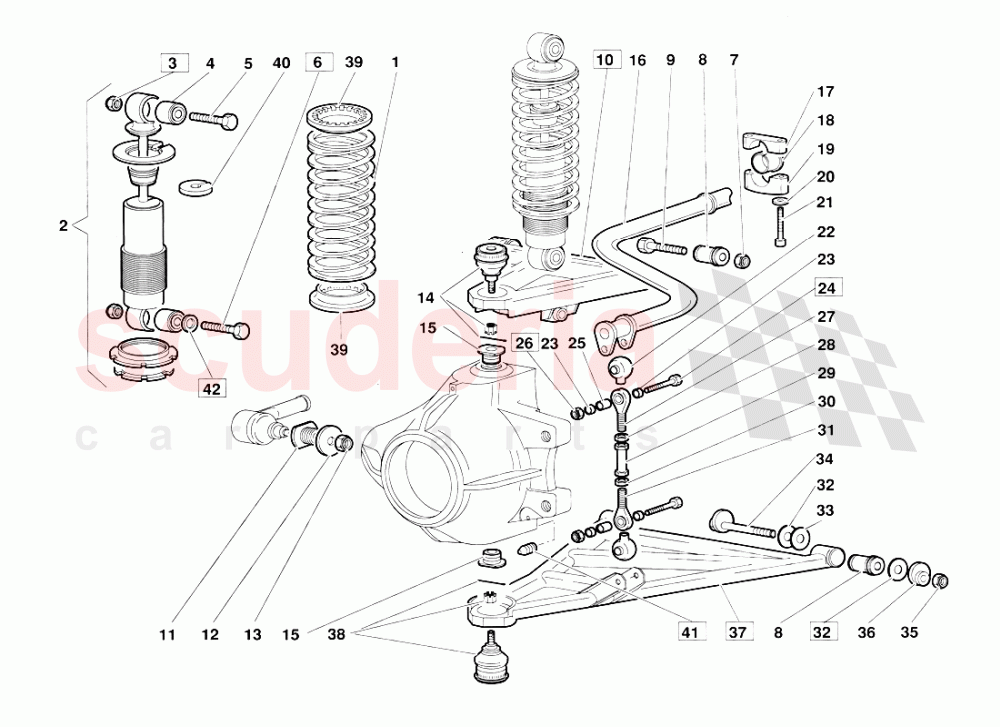

Front Suspension (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 5126155
SPRING
(Valid for June 1992 version) MOLLA AMMORTIZZATORE ANTERIORE 		$394.16 2
002 5129802
SHOCK ABSORBER
(Valid for June 1992 version) AMMORTIZZATORE ANTERIORE 		$1,076.55 2
003 WHT003355
NUT M12X1,25
(Valid for June 1992 version) DADO (Sostituisce il 008201206)
IN STOCK 		$20.42 4
004 410512383
FLEXIBLE BUSHING 		$548.89 4
005 8101259
SCREW
(Valid for June 1992 version) VITE 		$14.38 2
006 5133229
SCREW
(Valid for June 1992 version) VITE (sostotuisce il 0081 01 268) 		$102.73 2
007 WHT003355
NUT M12X1,25
(Valid for June 1992 version) DADO
IN STOCK 		$20.42 4
008 8921206
RESILIENT BUSHING
(Valid for June 1992 version) BOCCOLA ELASTICA 		$46.59 8
009 8101269
SCREW
(Valid for June 1992 version) VITE 		$4.84 4
010 5129602
ARM
(Valid for June 1992 version) BRACCIO SUPERIORE DX (fino 12677) 		- 1 Enquire
010 5133344
ARM
(Valid for June 1992 version) BRACCIO SUPERIORE DX (dalla 12678) (Particolare intercambiabile) 		$1,555.19 1
010 5129603
ARM
(Valid for June 1992 version) BRACCIO SUPERIORE SX (fino 12677) 		$607.21 1
010 5133345
ARM
(Valid for June 1992 version) BRACCIO SUPERIORE SX (dalla 12678) (Particolare intercambiabile) 		$1,628.92 1
011 5129541
BUSHING
(Valid for June 1992 version) BOCCOLA FILETTATA 		$43.86 2
012 WHT000919
WASHER 		$14.01 2
013 8201003
NUT
(Valid for June 1992 version) DADO 		$3.22 2
014 410407365
Coupling
(Valid for June 1992 version) TESTA A SNODO 		$245.80 2
015 410407171C
BUSH
(Valid for June 1992 version) BOCCOLA FILETTATA 		$1,369.08 4
016 5130255
STABILIZER BAR
(Valid for June 1992 version) BARRA STABILIZZATRICE 		$1,315.18 1
017 5230256
RETAINER
(Valid for June 1992 version) CAVALLOTTO SUPERIORE 		- 2 Enquire
018 5238302
BUSHING
(Valid for June 1992 version) BOCCOLA
IN STOCK 		$134.13 4
019 5230257
RETAINER
(Valid for June 1992 version) CAVALLOTTO INFERIORE 		- 2 Enquire
020 8410602
WASHER
(Valid for June 1992 version) RONDELLA
IN STOCK 		$41.56 4
021 8700609
SCREW
(Valid for June 1992 version) VITE 		$0.50 (93.2% off) 4
022 5109714
BOOT
(Valid for June 1992 version) CAPPUCCIO 		$24.32 4
023 5227297
BUSHING
(Valid for June 1992 version) BOCCOLA 		$29.97 8
024 8100810
SCREW
(Valid for June 1992 version) VITE (dalla 12609 sostituisce 008100807) 		- 4 Enquire
025 5227298
BUSHING
(Valid for June 1992 version) BOCCOLA 		$16.32 (8.3% off) 4
026 N0111849
NUT
(Valid for June 1992 version) DADO (dalla 12609 sostituisce 008200809)
IN STOCK 		$2.12 (70.8% off) 4
027 417801931A
BALL JOINT
(Valid for June 1992 version) GIUNTO SFERICO 		$247.68 2
028 8201014
NUT
(Valid for June 1992 version) DADO 		$5.70 2
029 5209770
TIE ROD
(Valid for June 1992 version) TIRANTE 		$105.73 (8.1% off) 2
030 8201016
NUT
(Valid for June 1992 version) DADO 		$21.08 2
031 5227295
BALL JOINT
(Valid for June 1992 version) GIUNTO SFERICO 		$141.45 2
032 410407295D
WASHER
(Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 3 MM 		$27.52 1
032 410407295C
2.5 MM ADJUSTMENT SHIM
(Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 2,5 MM 		$6.85 1
032 410407295
1.0 MM ADJUSTMENT SHIM
(Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 1 MM 		$4.24 1
032 410407295B
2.0 MM ADJUSTMENT SHIM
(Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 2 MM 		$6.22 1
032 5133488
SHIM
(Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 1,5 MM 		$3.10 1
034 410407127A
BOLT
(Valid for June 1992 version) PERNO CON ECCENTRICO 		$2,165.66 4
035 WHT003355
NUT M12X1,25
(Valid for June 1992 version) DADO
IN STOCK 		$20.42 8
036 410407127A
BOLT
(Valid for June 1992 version) ECCENTRICO 		$2,165.66 4
037 5133038
ARM
(Valid for June 1992 version) BRACCIO INFERIORE DX (dalla 12746) (Particolare intercambiabile se sostituito su entrambi i lati) 		$1,209.29 1
037 5127023
ARM
(Valid for June 1992 version) BRACCIO INFERIORE DX (fino 12745) 		- 1 Enquire
037 5127024
ARM
(Valid for June 1992 version) BRACCIO INFERIORE SX (fino 12745) 		- 1 Enquire
037 5133039
ARM
(Valid for June 1992 version) BRACCIO INFERIORE SX (dalla 12746) (Particolare intercambiabile se sostituito su entrambi i lati) 		$1,209.29 4
038 410407361B
COUPLING
(Valid for June 1992 version) TESTA A SNODO 		$1,167.72 2
039 410512385
RUBBER RING 		$49.48 4
040 5131484
SPACER
(Valid for June 1992 version) DISTANZIALE 		$32.70 2
041 WHT002941
SCREW M6X1X10
(Valid for June 1992 version) GRAND (dalla 12678) 		$0.89 (87.7% off) 4
042 8401234
WASHER
(Valid for June 1992 version) RONDELLA 		$1.55 (78.2% off) 6
