Climate Control of Lamborghini Lamborghini Diablo (1990-1998)

View All

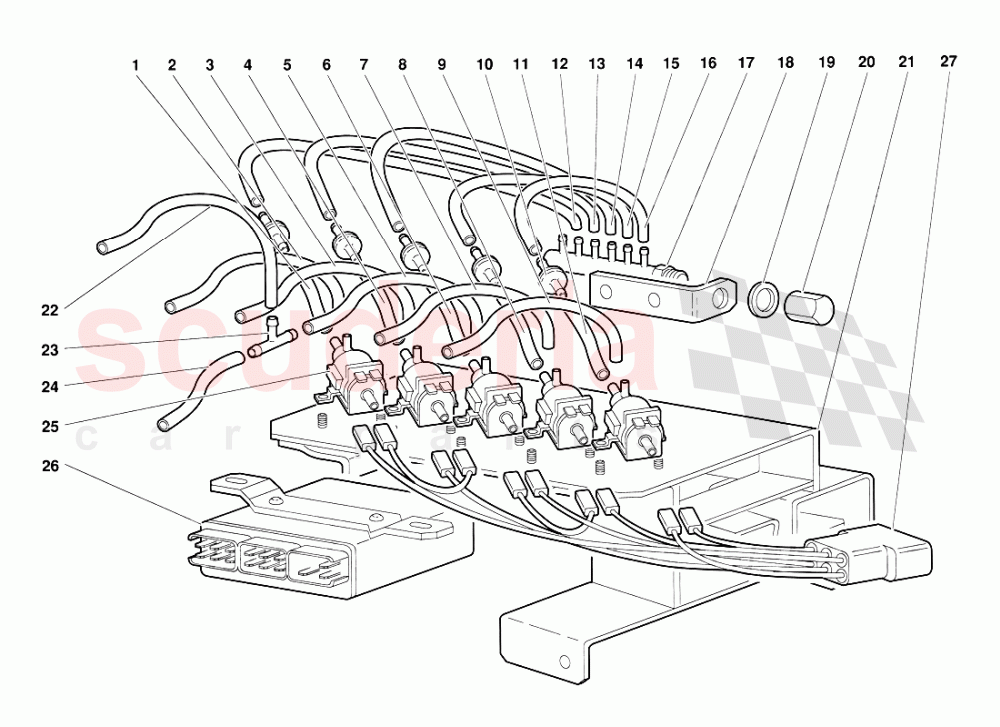

Lamborghini Diablo (1990-1998) - Climate Control

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9414612	RED PIPE	9414612 RED PIPE TUBO (ROSSO)	$8.31	1
002	9414613	RED PIPE	9414613 RED PIPE TUBO (ROSSO)	$8.31	1
003	9414614	GREEN PIPE	9414614 GREEN PIPE TUBO (VERDE)	$8.31	1
004	9414611	GREEN PIPE	9414611 GREEN PIPE TUBO (VERDE)	$8.31	1
005	9414615	BLUE PIPE	9414615 BLUE PIPE TUBO (BLU)	$8.31	1
006	9414610	BLUE PIPE	9414610 BLUE PIPE TUBO (BLU)	$8.31	1
007	9414616	WHITE PIPE	9414616 WHITE PIPE TUBO (BIANCO)	$8.31	1
008	9414609	WHITE PIPE	9414609 WHITE PIPE TUBO (BIANCO)	$8.31	1
009	9414617	BLACK PIPE	9414617 BLACK PIPE TUBO (NERO)	$8.31	1
010	4621574	VALVE	4621574 VALVE VALVOLA Dl NON RITQPWO	$18.08	5
011	9414608	BLACK PIPE	9414608 BLACK PIPE TUBO (NERO)	$8.31	1
012	9414601	RED PIPE	9414601 RED PIPE TUBO (ROSSO)	$8.31	1
013	9414602	GREEN PIPE	9414602 GREEN PIPE TUBO (VERDE)	$8.31	1
014	9414604	BLUE PIPE	9414604 BLUE PIPE TUBO (BLU)	$8.31	1
015	9414603	WHITE PIPE	9414603 WHITE PIPE TUBO (BIANCO)	$8.31	1
016	9414605	BLACK PIPE	9414605 BLACK PIPE TUBO (NERO)	$8.31	1
017	4621565	CONNECTION	4621565 CONNECTION TUBO DEL VUOTO A SEI USCITE	$74.50 MSRP: ~~81.00~~ (8% off)	1
018	4621570	PLATE	4621570 PLATE PIASTRA	$113.20	1
019	8401008	WASHER	8401008 WASHER RONDELLA	-	1	Enquire
020	9414606	PLUG	9414606 PLUG TAPPO	$65.75 MSRP: ~~74.10~~ (11.3% off)	1
021	9414628	PLATE	9414628 PLATE PIASTRA	$242.36 MSRP: ~~264.00~~ (8.2% off)	1
022	9414620	BLUE PIPE	9414620 BLUE PIPE TUBO	$8.31	1
023	7014169	T UNION	7014169 T UNION RACCORDOATREVIE	$22.85 MSRP: ~~25.65~~ (10.9% off)	1
024	9414621	BLUE PIPE	9414621 BLUE PIPE TUBO	$8.31	1
025	77906283	SOLENOID VALVE IN STOCK	77906283 SOLENOID VALVE ELETTROVALVOLA IN STOCK	$53.08	5
026	4526659	ELECTRONIC CONT. U.	4526659 ELECTRONIC CONT. U. CENTRALINA IMPIANTO CLIMATIZZ.	$4,943.22	1
027	6130618	ELECT CABLE	6130618 ELECT CABLE CABLAGGIO	$111.58 MSRP: ~~126.00~~ (11.4% off)	1
