Engine Oil Pump (Valid For June 1992 Version)

Lamborghini Diablo (1990-1998)

Find Your Part

Lamborghini Diablo (1990-1998) - Engine Oil Pump (Valid for June 1992 Version)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

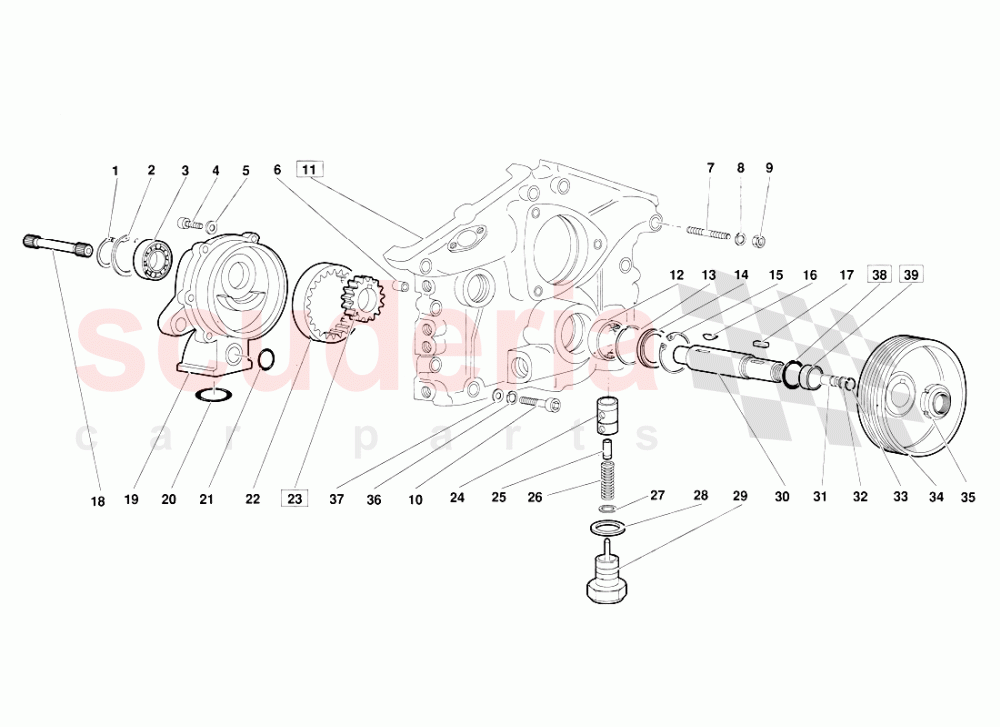

Engine Oil Pump (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 8582501
RETAINER RING
(Valid for June 1992 version) ANELLO RITEGNO 		$5.42 (9.7% off) 1
002 8575001
RETAINER RING
(Valid for June 1992 version) ANELLO RITEGNO 		$0.76 1
003 8502515
BEARING
(Valid for June 1992 version)CUSCINETTO 		$986.76 1
004 8700624
SCREW
(Valid for June 1992 version) VITE 		$0.12 6
005 8410602
WASHER
(Valid for June 1992 version) RONDELLA
IN STOCK 		$41.74 6
006 8851304
DOWEL
(Valid for June 1992 version) GRANO 		$58.64 (11% off) 2
007 8300902
STUD BOLT
(Valid for June 1992 version) PRIGIONIERO L = 35 MM 		$8.61 (9.8% off) 4
007 N0444416
STUD BOLT
(Valid for June 1992 version) PRIGIONIERO L = 40 MM
IN STOCK 		$3.65 (48.2% off) 2
007 8300904
STUD
(Valid for June 1992 version) PRIGIONIERO L = 45 MM 		$26.42 (11% off) 2
007 8300905
STUD
(Valid for June 1992 version) PRIGIONIEROL = 55MM 		$17.30 (11.1% off) 2
008 N0122094
WASHER
(Valid for June 1992 version) RONDELLA
IN STOCK 		$1.44 (79.9% off) 10
009 8200816
NUT
(Valid for June 1992 version) DADO 		$4.78 10
010 8700822
SCREW
(Valid for June 1992 version) VITE 		$0.70 (90.4% off) 2
011 1229182
TIMING COVER
(Valid for June 1992 version) COPERCHIO DISTRIBUZIONE (Per esigenze di lavorazione questo particolare non e piu fornito singolarmente ma nell'assieme 403400100) 		$2,683.27 1
012 8523513
BEARING
(Valid for June 1992 version) CUSCINETTO 		$29.42 1
013 8574502
RETAINER RING
(Valid for June 1992 version) ANELLO DI SPALLAMENTO
IN STOCK 		$9.12 1
014 8613507
SEAL
(Valid for June 1992 version) ANELLO TENUTA 		$5.85 1
015 8575000
RETAINER RING
(Valid for June 1992 version) ANELLO RITEGNO 		$0.75 1
016 8860508
LOCK KEY
(Valid for June 1992 version) LINGUETTA 		$1.69 1
017 8860808
KEY
(Valid for June 1992 version) LINGUETTA 		$0.64 1
018 1521899
SMALL SHAFT
(Valid for June 1992 version) BARRATORSIONE 		$560.90 1
019 1530837
OIL PUMP COVER
(Valid for June 1992 version) COPERCHIO POMPA OLIO 		$3,064.13 1
020 8603503
SEAL RING
(Valid for June 1992 version) ANELLO TENUTA 		$3.87 1
021 8601705
SEAL
(Valid for June 1992 version) ANELLO TENUTA 		$0.44 (94% off) 1
022 1530839
DRIVEN GEAR
(Valid for June 1992 version) INGRANAGGIO CONDOTTO 		$780.95 1
023 1532497
GEAR
(Valid for June 1992 version) INGR. CONDUTTORE (fino alia 12742) 		$2,382.70 1
023 1532497
GEAR
(Valid for June 1992 version) INGR. CONDUTTORE (dalla 12743) (part, compatibile sulle vetture precedenti) 		$2,382.70 1
024 1228118
BUSHING
(Valid for June 1992 version) BUSSOLA 		$104.58 1
025 1526871
PLUNGER
(Valid for June 1992 version) PISTONCINO OTTURATORE 		$40.29 1
026 1519888
SPRING
(Valid for June 1992 version) VMOLLA 		$23.26 (10.9% off) 1
027 1524378
SPACER
(Valid for June 1992 version) DISTANZIALE 		$29.89 1
028 8402604
WASHER
(Valid for June 1992 version) RONDELLA 		$3.41 1
029 1524375
PLUG
(Valid for June 1992 version) TAPPO 		$59.79 1
030 1531819
SHAFT
(Valid for June 1992 version) ALBERO 		$759.40 1
031 1525193
SPACER
(Valid for June 1992 version) NOTTOLINO 		$96.37 1
032 8601301
SEAL
(Valid for June 1992 version) ANELLO TENUTA 		$1.62 1
033 8571901
RETAINER RING
(Valid for June 1992 version) ANELLO RITEGNO 		$5.42 (9.7% off) 1
034 1525032
PULLEY
(Valid for June 1992 version) PULEGGIA 		$1,260.28 1
035 8253001
PLUG
(Valid for June 1992 version) GHIERA 		$55.23 1
036 N0152785
WASHER
(Valid for June 1992 version) RONDELLA
IN STOCK 		$0.44 2
037 N0122094
WASHER
(Valid for June 1992 version) RONDELLA
IN STOCK 		$1.44 (79.9% off) 2
038 8602603
SEAL
(Valid for June 1992 version) ANELLO TENUTA (dalla 12294) (particolare intercambiabile da accoppiare con 001531818) 		$0.23 1
039 1531818
SUPPORT - SUPPORTO
(Valid for June 1992 version) PISTA ANELLO TENUTA (dalla 12294) (particolare intercambiabile da accoppiare con 008602603) 		$385.45 1
