Climate Control (Valid For June 1992 Version) 1

Lamborghini Diablo (1990-1998)

Find Your Part

Lamborghini Diablo (1990-1998) - Climate Control (Valid for June 1992 Version) 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

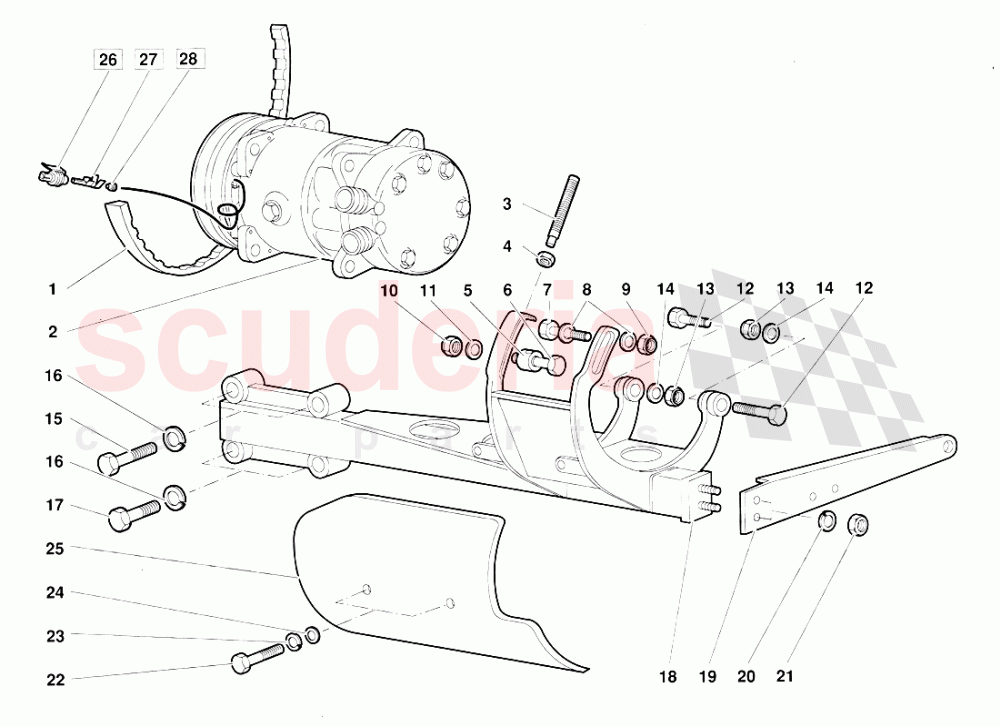

Climate Control (Valid for June 1992 Version) 1 of Lamborghini Lamborghini Diablo (1990-1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 4529536
T. BELT (until 12042)
(Valid for June 1992 version) CINGHIA 		$169.02 1
001 WHT003355
NUT M12X1,25
(Valid for June 1992 version) DADO
IN STOCK 		$20.57 8
002 4530198
AIR COMPRESSOR
(Valid for June 1992 version) COMPRESSORE 		$1,485.72 1
002 410407127A
BOLT
(Valid for June 1992 version) ECCENTRICO 		$2,181.77 8
003 410407295D
WASHER
(Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 3 MM (dalla 12678) 		$27.73 1
003 410407295B
2.0 MM ADJUSTMENT SHIM
(Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 2 MM (dalla 12678) 		$6.27 1
003 8700841
SCREW
(Valid for June 1992 version) VITE REGISTRO
IN STOCK 		$2.08 (11.5% off) 1
003 410407295C
2.5 MM ADJUSTMENT SHIM
(Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 2,5 MM (dalla 12678) 		$6.90 1
003 410407295
1.0 MM ADJUSTMENT SHIM
(Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 1 MM (dalla 12678) 		$4.27 1
003 5133488
SHIM
(Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 1,5 MM (dalla 12678) 		$3.12 1
004 N01100845
HEXAGON NUT
(Valid for June 1992 version) DADO
IN STOCK 		$1.94 1
005 8921206
RESILIENT BUSHING
(Valid for June 1992 version) BOCCOLA ELASTICA 		$46.94 8
005 4529646
SPACER
(Valid for June 1992 version) DISTANZIALE 		$23.12 (7.7% off) 4
006 8101035
SCREW
(Valid for June 1992 version) VITE 		$9.68 1
006 410407127A
BOLT
(Valid for June 1992 version) PERNO CON ECCENTRICO 		$2,181.77 8
007 8101022
bolt
(Valid for June 1992 version) VITE 		$3.95 1
007 5225908
RH UPPER SUSPENSION ARM 		$2,228.55 1
007 5225909
ARM
(Valid for June 1992 version) BRACCIO SUPERIORE SINISTRO 		$2,498.15 1
008 N0122115
WASHER
(Valid for June 1992 version) RONDELLA
IN STOCK 		$0.83 (88.6% off) 2
008 5225204
PIN
(Valid for June 1992 version) PERNO 		$85.68 (7.4% off) 2
009 5225207
RESILIENT BUSHING
(Valid for June 1992 version) BOCCOLA ELASTICA 		$424.10 8
009 8201008
NUT
(Valid for June 1992 version) DADO
IN STOCK 		$0.75 (89.6% off) 1
010 8201008
NUT
(Valid for June 1992 version) DADO
IN STOCK 		$0.75 (89.6% off) 1
010 8401710
WASHER
(Valid for June 1992 version) SPESSORE Dl REGISTRO 		$38.68 16
011 N0122115
WASHER
(Valid for June 1992 version) RONDELLA
IN STOCK 		$0.83 (88.6% off) 1
011 8401708
WASHER
(Valid for June 1992 version) RONDELLA 		$2.38 (6.7% off) 4
012 8251702
PLUG
(Valid for June 1992 version) GHIERA
IN STOCK 		$3.59 (9.1% off) 4
012 8101019
bolt
(Valid for June 1992 version) VITE 		$4.24 2
013 8201010
NUT
(Valid for June 1992 version) DADO
IN STOCK 		$1.16 2
013 5225205
PIN
(Valid for June 1992 version) PERNO 		$85.68 (7.4% off) 2
014 N0122115
WASHER
(Valid for June 1992 version) RONDELLA
IN STOCK 		$0.83 (88.6% off) 2
014 5225906
ARM
(Valid for June 1992 version) BRACCIO INFERIORE DESTRO 		$1,857.16 1
014 5225907
ARM
(Valid for June 1992 version) BRACCIO INFERIORE SINISTRO 		$1,836.86 1
015 WHT002952
SCREW M8X1,25X30
(Valid for June 1992 version) VITE
IN STOCK 		$4.70 2
015 N0111849
NUT
(Valid for June 1992 version) DADO (sostituisce II 008200809)
IN STOCK 		$2.13 (70.6% off) 4
016 N0152785
WASHER
(Valid for June 1992 version) RONDELLA
IN STOCK 		$0.44 4
016 5227297
BUSHING
(Valid for June 1992 version) BOCCOLA 		$30.19 8
017 5227298
BUSHING
(Valid for June 1992 version) BOCCOLA 		$16.44 (7.6% off) 4
017 N01033520
SCREW M8X35
(Valid for June 1992 version) VITE
IN STOCK 		$3.15 (56.2% off) 2
018 5109714
BOOT
(Valid for June 1992 version) CAPPUCCIO 		$24.50 4
018 4529535
SUPPORT - SUPPORTO
(Valid for June 1992 version) O 		$1,221.36 1
019 4529645
TIE ROD
(Valid for June 1992 version) TIRANTE 		$369.31 1
019 8100810
SCREW
(Valid for June 1992 version) VITE (sostituisce il 0081 00807) 		- 4 Enquire
020 N0152785
WASHER
(Valid for June 1992 version) RONDELLA
IN STOCK 		$0.44 2
020 417801931A
BALL JOINT
(Valid for June 1992 version) GIUNTO SFERICO 		$249.53 2
021 8201014
NUT
(Valid for June 1992 version) DADO 		$5.74 1
021 N01100845
HEXAGON NUT
(Valid for June 1992 version) DADO
IN STOCK 		$1.94 2
022 5209770
TIE ROD
(Valid for June 1992 version) TIRANTE 		$106.51 (7.4% off) 1
022 8100620
Bolt
(Valid for June 1992 version) VITE 		$5.43 (9.5% off) 2
023 WHT003053
WASHER
(Valid for June 1992 version) RONDELLA 		$3.08 2
023 8201016
NUT
(Valid for June 1992 version) DADO 		$21.24 2
024 N01152427
WASHER
(Valid for June 1992 version) RONDELLA
IN STOCK 		$0.28 2
024 5227295
BALL JOINT
(Valid for June 1992 version) GIUNTO SFERICO 		$142.50 2
025 5230211
STABILIZER BAR
(Valid for June 1992 version) BARRA STABILIZZATRICE 		$1,324.97 1
025 4532221
SHIELD
(Valid for June 1992 version) PARATIA ANTICALORE 		$791.85 1
026 8700609
SCREW
(Valid for June 1992 version) VITE 		$0.50 (93.2% off) 4
026 6132546
CONNECTION
(Valid for June 1992 version) CONNESSIONE 		$16.84 1
027 6131992
KEY
(Valid for June 1992 version) LINGUETTA 		- 1 Enquire
027 8410602
WASHER
(Valid for June 1992 version) RONDELLA
IN STOCK 		$41.87 8
028 5230256
RETAINER
(Valid for June 1992 version) CAVALLOTTO 		- 2 Enquire
028 6132584
KEY
(Valid for June 1992 version) E 		$7.40 1
029 5238302
BUSHING
(Valid for June 1992 version) BOCCOLA
IN STOCK 		$135.13 2
030 5230257
RETAINER
(Valid for June 1992 version) CAVALLOTTO 		- 2 Enquire
031 5233269
SHOCK ABSORBER
(Valid for June 1992 version) AMMORTIZZATORE POSTERIORE (dalla 12679) (compatibili sulle vetture precedenti solo se abbinati alle molle 0052261 57 q.ta 4) 		$707.35 4
031 5229803
SHOCK ABSORBER
(Valid for June 1992 version) AMMORTIZZATORE POSTERIORE (fino 12678) 		$1,250.43 4
032 5226157
SPRING
(Valid for June 1992 version) MOLLA (dalla 12679 compatibile solo con gli ammortizzatori 005233269) 		$355.42 (10.7% off) 4
032 5226158
SPRING
(Valid for June 1992 version) MOLLA (fino 12678) 		$635.57 4
033 WHT003355
NUT M12X1,25
(Valid for June 1992 version) DADO (sostituisce il 008201206)
IN STOCK 		$20.57 8
034 410512383
FLEXIBLE BUSHING 		$552.97 4
035 8101259
SCREW
(Valid for June 1992 version) VITE (sostituisce il 008101274) 		$14.49 8
036 410512385
RUBBER RING 		$49.85 8
