Tunnel

Lamborghini Aventador LP740 S

Find Your Part

Lamborghini Aventador LP740 S - Tunnel

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

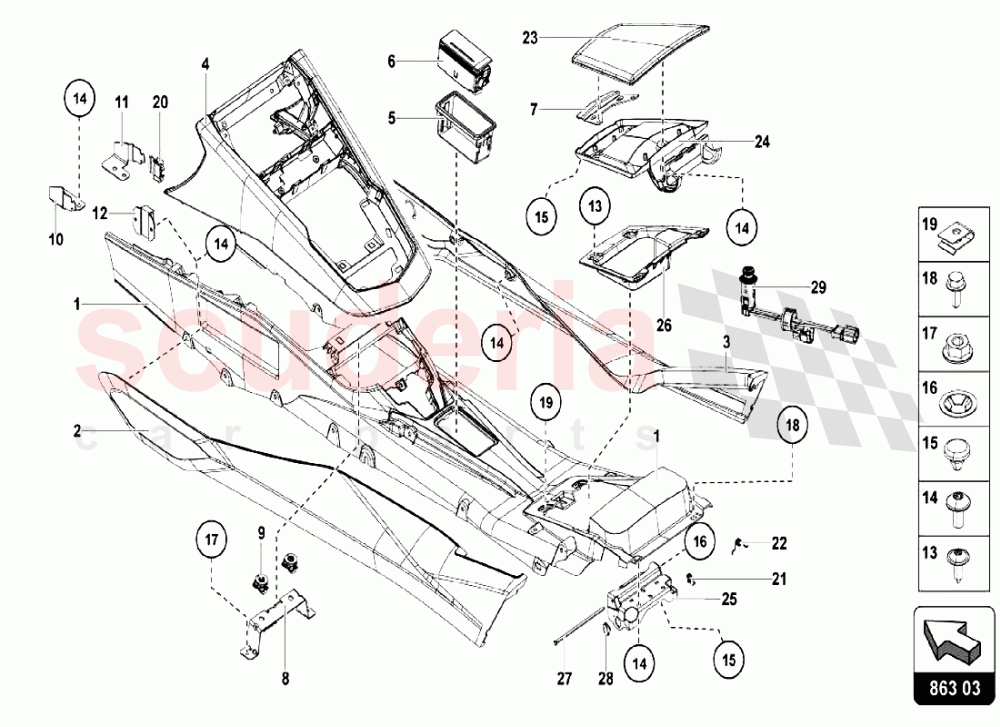

Tunnel of Lamborghini Lamborghini Aventador LP740 S Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
002 470863667C
Side Panel Trim For Centre Console (alcantara Upholstery - Supply Vin) 		$1,637.40 1
002 470863667D
Side Panel Trim For Centre Console (cup Holder - Leather Interior - Supply Vin- Rhd) 		$1,543.63 1
003 470863668B
Side Panel Trim For Centre Console (leather Interior -supply Vin) 		$1,543.63 1
003 470863668C
Side Panel Trim For Centre Console (alcantara Upholstery - Supply Vin) 		$1,637.40 1
004 470863315A
Lining For Console (leather Interior - Supply Vin) 		$1,317.73 1
005 472863849
CORNER TRIM 		$129.24 1
006 4G8857406A6PS
ASHTRAY 		$63.49 1
007 470868186
T-BAR 		$101.63 1
008 470863253
ATTACHMENT BARS 		$56.97 1
009 8E0806193
COMPENSATING PIECE
IN STOCK 		$16.41 2
010 470863583
ATTACHMENT BARS 		$14.93 1
011 470863584
ATTACHMENT BARS 		$401.51 1
012 470863346
BRACKET 		$27.11 2
013 N90986803
HEXAGON SOCKET HEAD PANEL BOLT 2 X13
IN STOCK 		$1.37 4
014 N10653801
HEXAGON SOCKET HEAD BOLT 		$3.08 (57.8% off) 16
014 N10586401
OVAL HEXAGON SOCKET HEAD BOLT
IN STOCK 		$0.89 16
015 N91092001
RUBBER STOP 4.50X2.2X8.60 		$0.96 (86.7% off) 2
016 N90657502
CLAMPING WASHER
IN STOCK 		$0.39 (94.7% off) 1
017 N01508210
HEXAGON COLLAR NUT
IN STOCK 		$2.01 3
018 N10653201
HEX COLLARED BOLT
IN STOCK 		$2.19 2
019 N0154487
SPEED NUT
IN STOCK 		$1.00 4
020 4D0857949A
GROMMET 		$8.09 2
021 400863285
LEFT SPRING 		$35.12 1
022 400863286
RIGHT SPRING 		$35.12 1
023 470863761
COVER FOR DRAWER 		$445.44 1
023 470863761A
Cover For Drawer (alcantara Upholstery - Supply Vin-alcantara) 		$739.18 1
023 470863761B
Cover For Drawer (supply Vin-carbon Effect) 		$739.18 1
024 470863273A
TRIM 		$1,386.46 1
025 470861871C
SECURING BRACKET 		$388.97 1
026 470863300
Glove Compartment 		$166.27 1
027 470863348
PIN 		$31.68 1
028 418880324
BRAKE ELEMENT 		$17.19 2
029 8J0919303
CIGARETTE LIGHTER 		$22.60 1
029 8J0919303A
SOCKET 		$18.78 1
030 8T0853107
CLIP
IN STOCK 		$0.69 (90.5% off) 6
031 N10602101
HEXAGON SOCKET FLAT HEAD BOLT
IN STOCK 		$0.96 (86.8% off) 10
032 N10721401
OVAL HD. SELF-TAPP FITT. SCREW
IN STOCK 		$3.40 (53.6% off) 3
033 N10405604
OVAL HEXAGON SOCKET HEAD BOLT
IN STOCK 		$1.37 4
