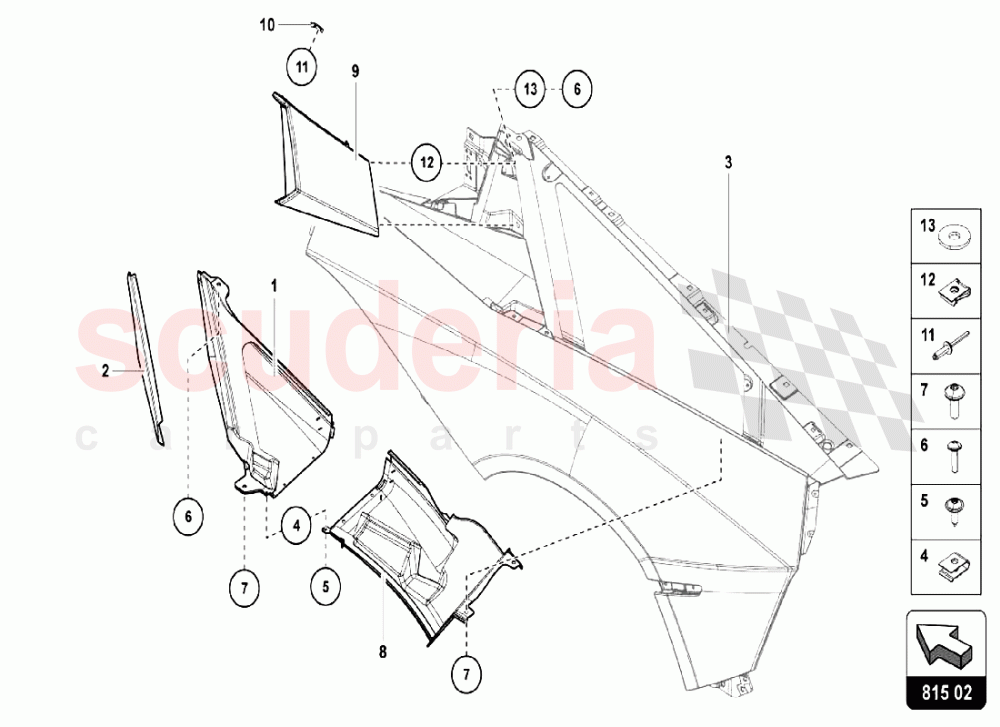

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470119363E	AIR GUIDE	470119363E AIR GUIDE	$519.46	1
001	470119364E	AIR GUIDE	470119364E AIR GUIDE	$519.46	1
002	470827281B	AIR GUIDE GRILLE	470827281B AIR GUIDE GRILLE	$39.89	1
002	470827282B	AIR GUIDE GRILLE	470827282B AIR GUIDE GRILLE	$39.89	1
004	N0154487	SPEED NUT IN STOCK	N0154487 SPEED NUT IN STOCK	$1.00	6
005	N90986803	HEXAGON SOCKET HEAD PANEL BOLT 2 X 13 IN STOCK	N90986803 HEXAGON SOCKET HEAD PANEL BOLT 2 X 13 IN STOCK	$1.38	6
006	N10661002	HEX SOCKET OVAL HEAD COLLARED IN STOCK	N10661002 HEX SOCKET OVAL HEAD COLLARED IN STOCK	$1.44 MSRP: ~~7.27~~ (80.2% off)	8
007	N90780903	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90780903 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$0.92	6
008	470117331D	AIR GUIDE	470117331D AIR GUIDE	$521.96	1
008	470117332D	AIR GUIDE	470117332D AIR GUIDE	$547.18	1
009	470122193D	AIR DUCT CARDBOARD	470122193D AIR DUCT CARDBOARD	$1,227.74	1
009	470122194D	AIR DUCT CARDBOARD	470122194D AIR DUCT CARDBOARD	$1,227.74	1
010	470117085B	ARM	470117085B ARM	$10.36	1
010	470117086B	ARM	470117086B ARM	$10.36	1
011	N91083301	POP RIVET	N91083301 POP RIVET	$1.63 MSRP: ~~7.14~~ (77.2% off)	4
012	N90688703	SPEED NUT CLAMP M6 X 23 8 X 16 IN STOCK	N90688703 SPEED NUT CLAMP M6 X 23 8 X 16 IN STOCK	$1.24	4
013	N01166623	WASHER IN STOCK	N01166623 WASHER IN STOCK	$1.44	4
