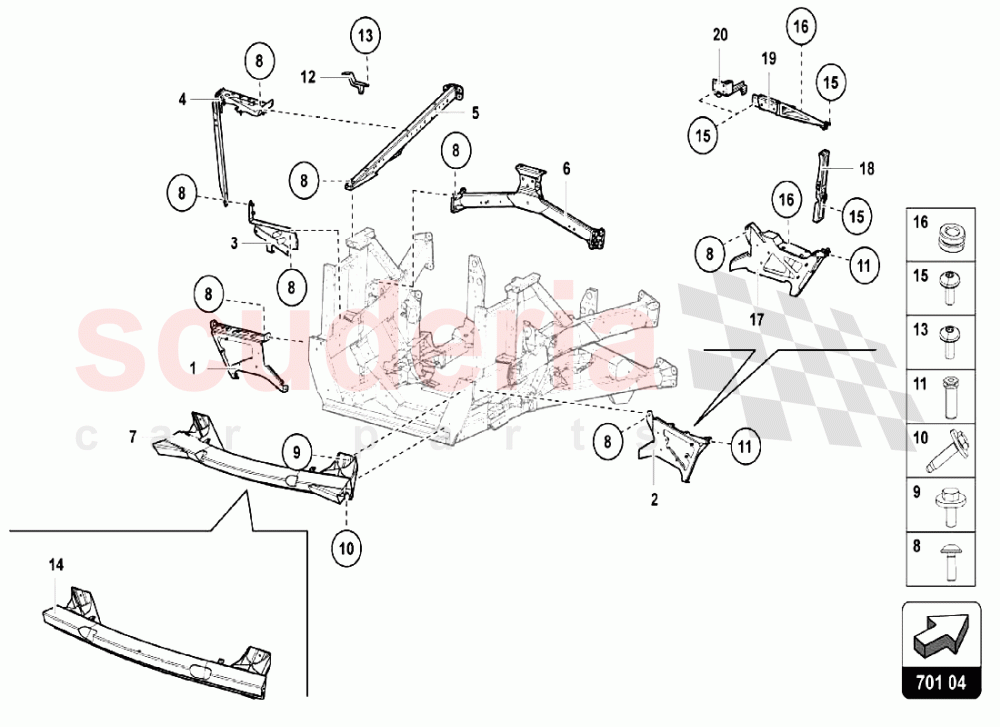

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470814907C	ARM	470814907C ARM	$793.04	1
002	470814908E	ARM	470814908E ARM	$554.75	1
003	470814149D	Arm (left Rear)	470814149D Arm (left Rear)	$194.77	1
003	470814150C	ARM	470814150C ARM	$197.94	1
004	470813541B	BRACKET	470813541B BRACKET	$1,481.13	1
004	470813542B	BRACKET	470813542B BRACKET	$2,464.34	1
005	470813650E	SIDE MEMBER	470813650E SIDE MEMBER	$571.16	1
005	470813649K	SIDE MEMBER	470813649K SIDE MEMBER	$600.13	1
007	470807307D	Bumper Carrier (rear)	470807307D Bumper Carrier (rear)	$1,581.96	1
008	N91000203	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91000203 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$10.91	32
009	N90786503	HEXAGON HEAD BOLT (COMBI) IN STOCK	N90786503 HEXAGON HEAD BOLT (COMBI) IN STOCK	$2.20 MSRP: ~~7.16~~ (69.3% off)	2
010	N90862302	HEXAGON HEAD BOLT (COMBI)	N90862302 HEXAGON HEAD BOLT (COMBI)	$5.81	2
011	8H0806221	COMPENSATING PIECE IN STOCK	8H0806221 COMPENSATING PIECE IN STOCK	$10.47	2
012	470854729A	Arm (rear)	470854729A Arm (rear)	$53.00	2
013	N90944603	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90944603 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.20	4
015	N90900402	HEX SOCKET OVAL HEAD COLLARED IN STOCK	N90900402 HEX SOCKET OVAL HEAD COLLARED IN STOCK	$1.44 MSRP: ~~7.24~~ (80.1% off)	4
016	4D0317867A	RUBBER BUSH IN STOCK	4D0317867A RUBBER BUSH IN STOCK	$8.14	2
017	470814908E	ARM	470814908E ARM	$554.75	1
018	470813983A	ARM	470813983A ARM	$1,097.91	1
020	470814942C	BRACKET	470814942C BRACKET	$80.30	1
