EXTERNAL SIDE MEMBER of Lamborghini Lamborghini Aventador LP750 SV Roadster

View All

Lamborghini Aventador LP750 SV Roadster - EXTERNAL SIDE MEMBER

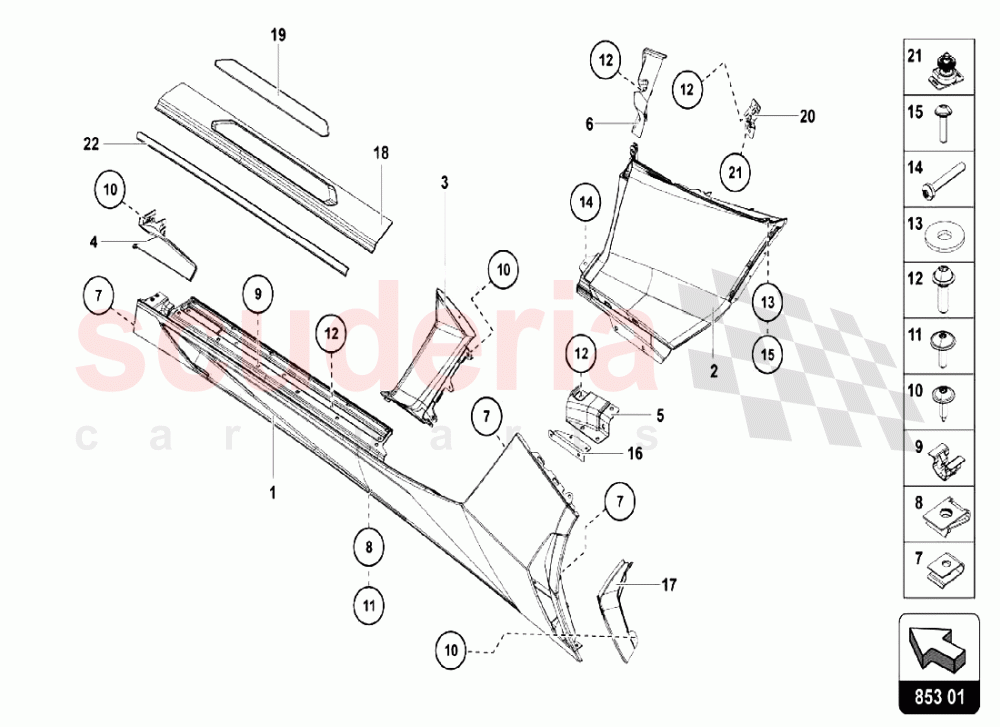

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470853564D	FRONT RIGHT SIDE MEMBER ASSEMBLY (CONTACT YOUR AREA MANAGER)	470853564D FRONT RIGHT SIDE MEMBER ASSEMBLY (CONTACT YOUR AREA MANAGER)	$3,839.13	1
001	470853563D	FRONT LEFT SIDE MEMBER ASSEMBLY (CONTACT YOUR AREA MANAGER)	470853563D FRONT LEFT SIDE MEMBER ASSEMBLY (CONTACT YOUR AREA MANAGER)	$3,839.13	1
002	470853989C	LEFT COVER ( CONTACT YOUR AREA MANAGER)	470853989C LEFT COVER ( CONTACT YOUR AREA MANAGER)	$562.54	1
002	470853990C	RIGHT COVER (CONTACT YOUR AREA MANAGER)	470853990C RIGHT COVER (CONTACT YOUR AREA MANAGER)	$562.54	1
003	470854776A	RH ORNAMENT	470854776A RH ORNAMENT	$1,265.09	1
003	470854776B	RH ORNAMENT (EXTERNAL CARBON)	470854776B RH ORNAMENT (EXTERNAL CARBON)	$6,438.21	1
003	470854775B	LH ORNAMENT (EXTERNAL CARBON)	470854775B LH ORNAMENT (EXTERNAL CARBON)	$6,438.21	1
003	470854775A	LH ORNAMENT	470854775A LH ORNAMENT	$1,265.09	1
004	470853294A	RIGHT COVER IN STOCK	470853294A RIGHT COVER IN STOCK	$247.37	1
004	470853293A	LEFT COVER	470853293A LEFT COVER	$247.37	1
005	470814708	ARM IN STOCK	470814708 ARM IN STOCK	$22.62	1
005	470814707	ARM	470814707 ARM	$22.62	1
006	470809921A	LEFT COVER	470809921A LEFT COVER	$82.18	1
006	470809922A	RIGHT COVER	470809922A RIGHT COVER	$82.18	1
007	N0154487	SPEED NUT IN STOCK	N0154487 SPEED NUT IN STOCK	$1.00	20
008	N90688703	SPEED NUT CLAMP M6 X 23 8 X 16 IN STOCK	N90688703 SPEED NUT CLAMP M6 X 23 8 X 16 IN STOCK	$1.23	4
009	6N0867190A	CLIP	6N0867190A CLIP	$4.51 MSRP: ~~7.28~~ (38% off)	6
010	N90986803	HEXAGON SOCKET HEAD PANEL BOLT 2 X 13 IN STOCK	N90986803 HEXAGON SOCKET HEAD PANEL BOLT 2 X 13 IN STOCK	$1.37	18
011	N91188301	HEXAGON SOCKET HEAD BOLT IN STOCK	N91188301 HEXAGON SOCKET HEAD BOLT IN STOCK	$1.83 MSRP: ~~7.23~~ (74.7% off)	16
012	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$4.09	26
013	N01166623	WASHER IN STOCK	N01166623 WASHER IN STOCK	$1.43	20
014	N10405702	HEXAGON SOCKET HEAD BOLT IN STOCK	N10405702 HEXAGON SOCKET HEAD BOLT IN STOCK	$3.05	2
015	N10661002	HEX SOCKET OVAL HEAD COLLARED IN STOCK	N10661002 HEX SOCKET OVAL HEAD COLLARED IN STOCK	$1.43 MSRP: ~~7.27~~ (80.3% off)	10
016	470853884A	SECURING BRACKET	470853884A SECURING BRACKET	$164.14	1
016	470853883A	SECURING BRACKET	470853883A SECURING BRACKET	$58.71	1
017	470853654C	RADIATOR GRILLE	470853654C RADIATOR GRILLE	$949.68	1
017	470853653A	LEFT GRID	470853653A LEFT GRID	$140.95	1
018	470853491B	SILL TRIM STRIP	470853491B SILL TRIM STRIP	$433.51	1
018	470853492B	SILL TRIM STRIP	470853492B SILL TRIM STRIP	$433.51	1
019	470853655A	MOLDING FOR SIDE MEMBER IN STOCK	470853655A MOLDING FOR SIDE MEMBER IN STOCK	$340.96	2
019	470853655B	MOLDING FOR SIDE MEMBER	470853655B MOLDING FOR SIDE MEMBER	$2,042.14	2
020	470814590	BRACKET	470814590 BRACKET	$32.45	1
020	470814589	BRACKET	470814589 BRACKET	$19.24	1
021	7L6868243	CLIP IN STOCK	7L6868243 CLIP IN STOCK	$1.16 MSRP: ~~7.22~~ (83.9% off)	2
022	470853383	SEAL FOR SILL PANEL	470853383 SEAL FOR SILL PANEL	$423.37	1
022	470853384	SEAL FOR SILL PANEL	470853384 SEAL FOR SILL PANEL	$693.92	1
