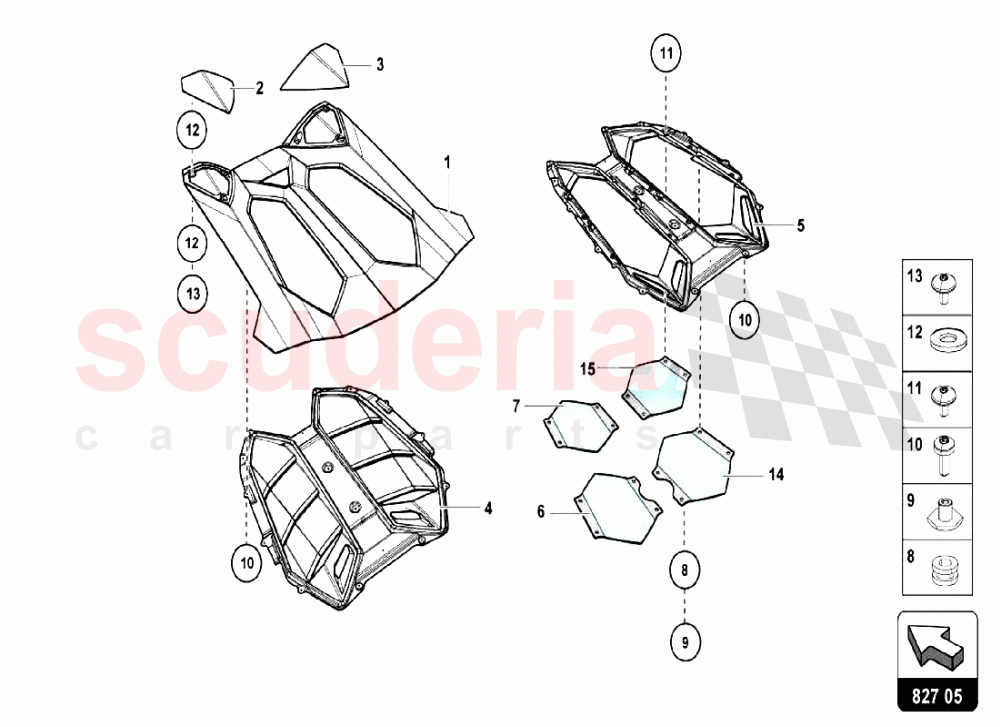

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	475827025	ENGINE COVER WITH INSP. COVER	475827025 ENGINE COVER WITH INSP. COVER	$14,520.95	1
002	475827213	LEFT COVER	475827213 LEFT COVER	$1,918.22	1
003	475827214	RIGHT COVER	475827214 RIGHT COVER	$1,918.22	1
004	475827631B	COVERING	475827631B COVERING	$6,784.14	1
005	475827195	INSERT PIECE	475827195 INSERT PIECE	$5,384.84	1
006	475827631C	ENGINE HOOD GLASS	475827631C ENGINE HOOD GLASS	$937.06	1
007	475827631A	ENGINE HOOD GLASS	475827631A ENGINE HOOD GLASS	$893.31	1
008	475827594	DAMPING SLEEVE	475827594 DAMPING SLEEVE	$12.13	16
009	475827317	BUSH	475827317 BUSH	$18.70	16
010	N91188301	HEXAGON SOCKET HEAD BOLT IN STOCK	N91188301 HEXAGON SOCKET HEAD BOLT IN STOCK	$1.82 MSRP: ~~7.23~~ (74.8% off)	14
011	N91096603	HEXAGON SOCKET FLAT HEAD BOLT	N91096603 HEXAGON SOCKET FLAT HEAD BOLT	$4.25 MSRP: ~~7.01~~ (39.4% off)	16
012	WHT006968	WASHER	WHT006968 WASHER	$2.32 MSRP: ~~2.80~~ (17.1% off)	12
013	N10406504	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10406504 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.89 MSRP: ~~7.20~~ (73.8% off)	6
014	475827632C	ENGINE HOOD GLASS	475827632C ENGINE HOOD GLASS	$937.06	1
015	475827632A	ENGINE HOOD GLASS	475827632A ENGINE HOOD GLASS	$893.31	1
