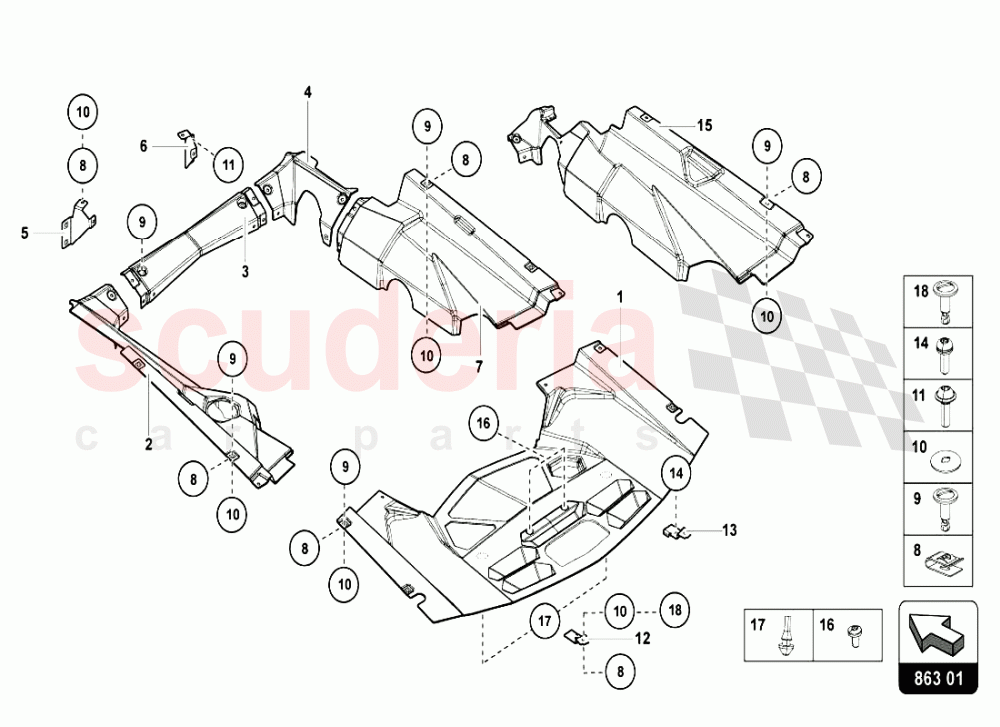

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470103786C	COVER	470103786C COVER	$858.05	1
001	470103786D	COVER	470103786D COVER	$13,657.48	1
002	475103723	COVER	475103723 COVER	$190.05	1
002	475103723A	COVER	475103723A COVER	$7,616.08	1
003	475103917A	COVER	475103917A COVER	$3,676.29	1
003	475103917	COVER	475103917 COVER	$120.97	1
005	475103933	BRACKET	475103933 BRACKET	$109.54	1
006	475103932	BRACKET	475103932 BRACKET	$54.23	1
008	8D0805960	SPEED NUT IN STOCK	8D0805960 SPEED NUT IN STOCK	$3.18	24
009	8D0805121	GRIP PIN IN STOCK	8D0805121 GRIP PIN IN STOCK	$6.32	20
010	4A0805137A	RETAINING WASHER IN STOCK	4A0805137A RETAINING WASHER IN STOCK	$1.57 MSRP: ~~7.27~~ (78.4% off)	22
011	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$4.09	4
015	475103724A	COVER	475103724A COVER	$7,043.67	1
015	475103724	COVER	475103724 COVER	$196.95	1
016	N90638102	ROUND HD. SCREW IN STOCK	N90638102 ROUND HD. SCREW IN STOCK	$1.57 MSRP: ~~7.25~~ (78.3% off)	2
017	410853809	MOUNTING BUFFER	410853809 MOUNTING BUFFER	$40.17	2
