Lamborghini Aventador LP720 Roadster - DOORS 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

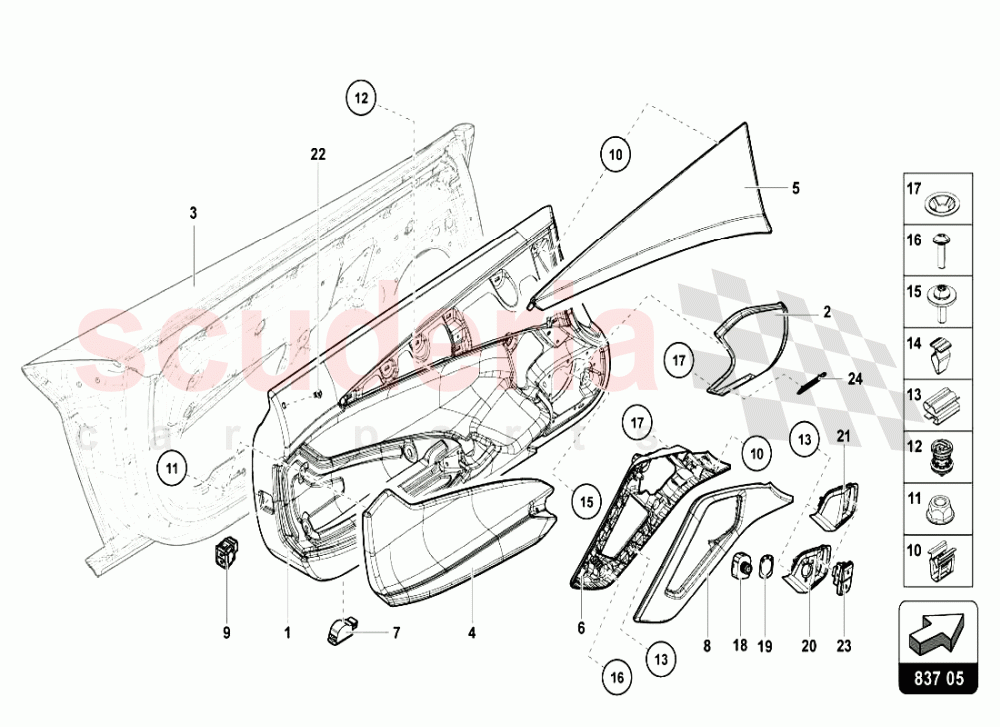

DOORS 2 of Lamborghini Lamborghini Aventador LP720 Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 471867005D
DOOR PANEL 		$2,522.24 1
001 471867006B
RH DOOR PANEL ASSEMBLY (UNTIL THE VIN ELA02187 - LEATHER 		$2,522.24 1
001 471867006D
DOOR PANEL 		$2,522.24 1
001 471867005B
LH DOOR PANEL ASSEMBLY (UNTIL THE VIN ELA02187 - LEATHER 		$2,522.24 1
002 470868152A
LOUDSPEAKER GRILLE 		$177.16 1
002 470868151B
LOUDSPEAKER GRILLE 		$177.16 1
002 470868151A
LOUDSPEAKER GRILLE 		$177.16 1
002 470868152B
LOUDSPEAKER GRILLE 		$177.16 1
004 470867165D
INSERT 		$1,333.11 1
004 470867166E
INSERT 		$1,333.11 1
004 470867166F
RIGHT DOOR UPHOLSTERY (LEATHER INTERIOR - Q-CITURA - SUPPLY 		$1,258.27 1
004 470867165E
INSERT 		$1,333.11 1
004 470867166D
INSERT 		$1,333.11 1
004 470867165F
LEFT DOOR UPHOLSTERY (LEATHER INTERIOR - Q-CITURA - SUPPLY 		$1,258.27 1
005 470868109D
COVER FOR DOOR TRIM PANEL 		$963.86 1
005 470868109C
COVER FOR DOOR TRIM PANEL 		$963.86 1
005 470868109A
LEFT UPPER BODY ASSEMBLY (UNTIL THE VIN ELA02187 - LEATHER 		$907.70 1
005 470868110D
COVER FOR DOOR TRIM PANEL 		$963.86 1
005 470868110A
RIGHT UPPER BODY ASSEMBLY (UNTIL THE VIN ELA02187 - LEATHER 		$907.70 1
005 470868110C
COVER FOR DOOR TRIM PANEL 		$963.86 1
006 470867151
DOOR HANDLE, INNER 		$6,984.69 1
006 470867152
DOOR HANDLE, INNER 		$6,984.69 1
006 470867158A
RH HANDLE 		$232.82 1
006 470867157A
LH HANDLE 		$232.82 1
007 6Y0947411
DOOR WARNING LIGHT 		$28.05 2
008 470867172A
HANDLE SHELL, UPPER PART 		$188.40 1
008 470867171A
HANDLE SHELL, UPPER PART
IN STOCK 		$188.40 1
009 4F0962109
BUTTON FOR DEACTIVATION OF ANTI-THEFT ALARM SYSTEM AND TOW-AWAY PROTECTION 		$40.25 1
010 8T0853107
CLIP
IN STOCK 		$0.69 (90.5% off) 20
011 N90663601
HEX. NUT WITH WASHER 		$0.30 (95.9% off) 6
012 7L6868243
CLIP
IN STOCK 		$1.16 (83.9% off) 10
013 N90776001
CLIP 		$0.54 (92.6% off) 30
014 4A0867276A
CLIP
IN STOCK 		$0.89 (87.7% off) 8
015 N90684705
HEXAGON SOCKET HEAD BOLT (COMBI) 		$2.84 (60.7% off) 4
016 N10661002
HEX SOCKET OVAL HEAD COLLARED
IN STOCK 		$1.43 (80.3% off) 4
017 N90657502
CLAMPING WASHER
IN STOCK 		$0.39 (94.7% off) 2
018 4T0959565
SWITCH FOR EXTERIOR MIRROR WITH ELECTRIC ADJUSTMENT 		$152.73 1
019 8T0919173A
FIBRE OPTIC CONDUCTOR 		$6.77 1
020 471837239A
ACTUATING LEVER 		$88.63 1
021 471837240A
ACTUATING LEVER 		$88.63 1
022 8Z0919424A4PK
SLEEVE DWA 		- 1 Enquire
023 470962242
SAFETY SWITCH FOR CENTRAL LOCKING SYSTEM 		$71.98 1
023 470962241
SAFETY SWITCH FOR CENTRAL LOCKING SYSTEM 		$36.00 1
023 4G8962107
SAFETY SWITCH FOR CENTRAL LOCKING SYSTEM 		$37.67 1
023 4G8962108
SAFETY SWITCH FOR CENTRAL LOCKING SYSTEM 		$37.67 1
024 470853740
LETTERING 		$213.43 1
024 470853741
LETTERING 		$213.43 1
