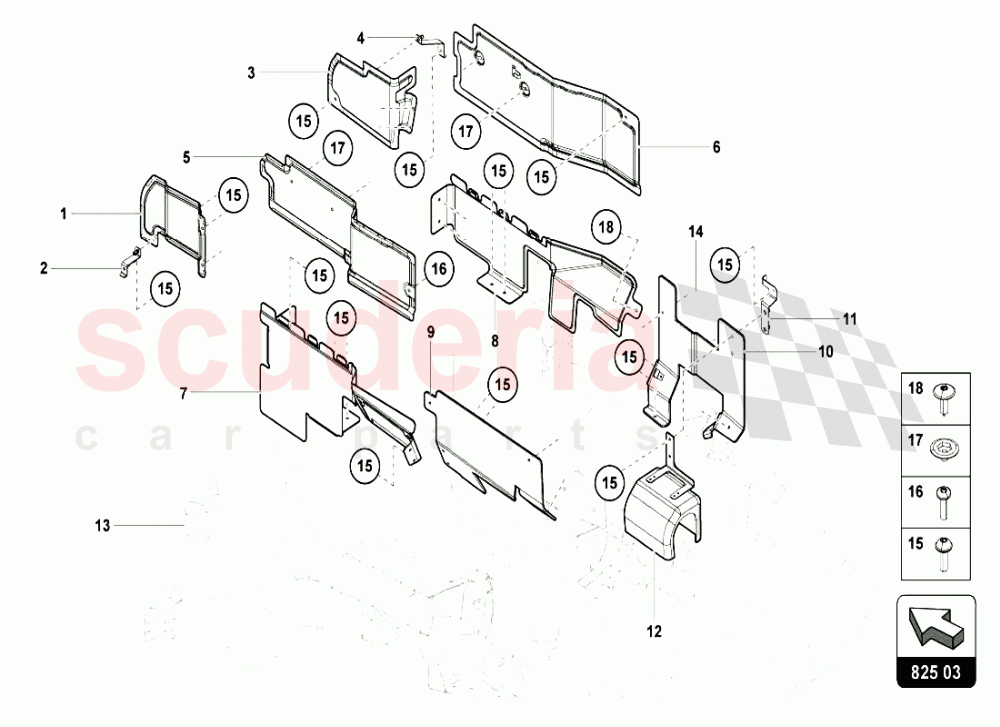

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470825731A	HEAT SHIELD	470825731A HEAT SHIELD	$216.05	1
002	470825241A	RETAINER FOR HEAT SHIELD	470825241A RETAINER FOR HEAT SHIELD	$19.74	1
003	470825732C	HEAT SHIELD	470825732C HEAT SHIELD	$216.05	1
004	470825242B	RETAINER FOR HEAT SHIELD	470825242B RETAINER FOR HEAT SHIELD	$25.89	1
005	470825757B	HEAT SHIELD	470825757B HEAT SHIELD	$593.34	1
006	470825758C	HEAT SHIELD	470825758C HEAT SHIELD	$256.35	1
007	470825735A	HEAT SHIELD	470825735A HEAT SHIELD	$4,611.54	1
008	470825733A	HEAT SHIELD	470825733A HEAT SHIELD	$4,611.54	1
009	470825741A	GUARD PLATE	470825741A GUARD PLATE	$5,751.82	1
010	470825742A	GUARD PLATE	470825742A GUARD PLATE	$5,777.03	1
011	470825513	RETAINER FOR HEAT SHIELD	470825513 RETAINER FOR HEAT SHIELD	$39.67	1
012	470825720B	HEAT SHIELD FOR REAR SILENCER	470825720B HEAT SHIELD FOR REAR SILENCER	$501.39	1
015	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	N91032702 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	$1.70	29
016	N10632202	ROUND HD. SCREW IN STOCK	N10632202 ROUND HD. SCREW IN STOCK	$1.89 MSRP: ~~7.13~~ (73.5% off)	1
017	N90745001	HEXAGON COLLAR NUT IN STOCK	N90745001 HEXAGON COLLAR NUT IN STOCK	$0.92 MSRP: ~~7.24~~ (87.3% off)	4
018	N90775001	HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	N90775001 HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	$2.27	1
