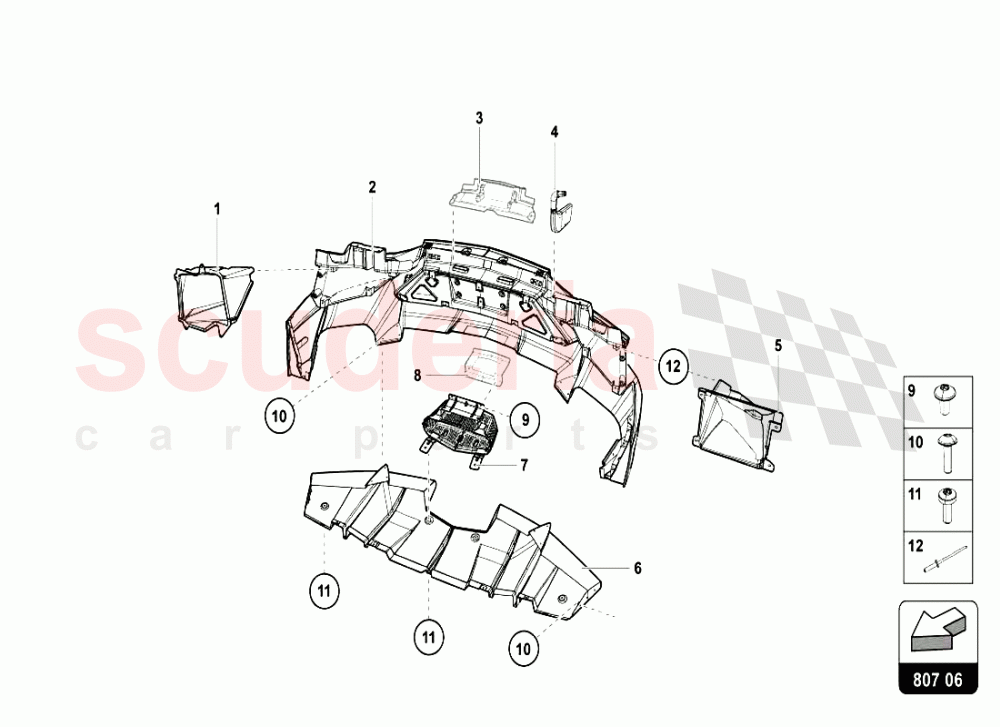

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470825260C	RH CONVEYOR	470825260C RH CONVEYOR	$527.82	1
002	470807511P	REAR BUMPER (WITH RVC)	470807511P REAR BUMPER (WITH RVC)	$12,958.92	1
004	470117157B	GASOLINE SYSTEM BREATHER	470117157B GASOLINE SYSTEM BREATHER	$91.46	1
005	470825259D	LH CONVEYOR	470825259D LH CONVEYOR	$232.43	1
006	470807568	REAR END PLATE	470807568 REAR END PLATE Valid For SV Bumper	$13,985.80	1
006	470807539D	REAR BUMPER LOWER PART	470807539D REAR BUMPER LOWER PART	$7,559.90	1
007	470253697C	AESTHETIC END	470253697C AESTHETIC END	$634.90	1
009	N90780903	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90780903 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$0.92	1
010	N10661002	HEX SOCKET OVAL HEAD COLLARED IN STOCK	N10661002 HEX SOCKET OVAL HEAD COLLARED IN STOCK	$1.43 MSRP: ~~7.27~~ (80.3% off)	12
011	N91165701	HEX SOCKET HEAD BOLT (COMBI)	N91165701 HEX SOCKET HEAD BOLT (COMBI)	$1.63 MSRP: ~~7.28~~ (77.6% off)	1
012	N90248401	POP RIVET IN STOCK	N90248401 POP RIVET IN STOCK	$1.63 MSRP: ~~7.36~~ (77.9% off)	1
