REAR FRAME ELEMENTS 1 of Lamborghini Lamborghini Aventador LP720 Coupe

View All

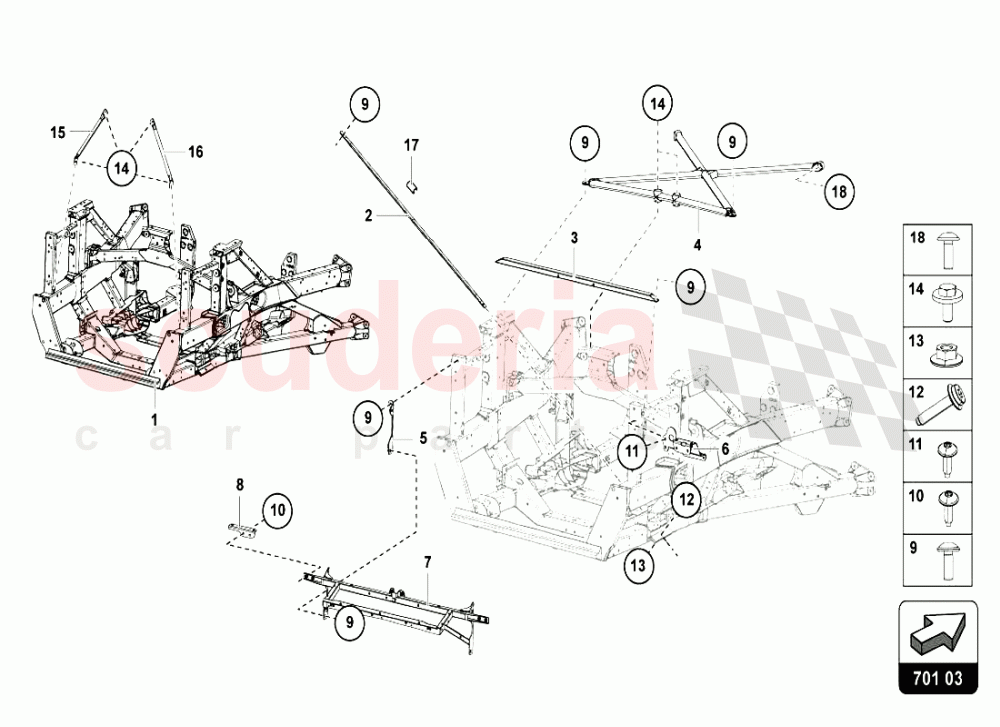

Lamborghini Aventador LP720 Coupe - REAR FRAME ELEMENTS 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470813031B	REAR END ASSEMBLY (CONTACT YOUR AREA MANAGER)	470813031B REAR END ASSEMBLY (CONTACT YOUR AREA MANAGER)	$23,523.03	1
002	470813249B	CROSS MEMBER	470813249B CROSS MEMBER	$326.03	2
003	470814519D	CROSS MEMBER IN STOCK	470814519D CROSS MEMBER IN STOCK	$189.61 MSRP: ~~264.00~~ (28.2% off)	1
005	470814658B	ARM	470814658B ARM	$54.55	1
005	470814657B	ARM	470814657B ARM	$54.55	1
006	470814942B	Bracket (rear)	470814942B Bracket (rear)	$104.84	1
008	470814186B	Arm (right Rear)	470814186B Arm (right Rear)	$40.15	1
008	470814185B	Arm (left Rear)	470814185B Arm (left Rear)	$40.15	1
009	N0195306	BOLT, HEX. HD. WITH SHOULDER, SELF-LOCKING IN STOCK	N0195306 BOLT, HEX. HD. WITH SHOULDER, SELF-LOCKING IN STOCK	$3.27 MSRP: ~~7.15~~ (54.3% off)	14
010	N90900401	HEX SOCKET OVAL HEAD COLLARED M6 X 20 IN STOCK	N90900401 HEX SOCKET OVAL HEAD COLLARED M6 X 20 IN STOCK	$2.20	4
011	N90900401	HEX SOCKET OVAL HEAD COLLARED M6 X 20 IN STOCK	N90900401 HEX SOCKET OVAL HEAD COLLARED M6 X 20 IN STOCK	$2.20	2
012	WHT001237	HEX SOCKET HEAD COLLARED BOLT IN STOCK	WHT001237 HEX SOCKET HEAD COLLARED BOLT IN STOCK	$1.37 MSRP: ~~7.16~~ (80.9% off)	2
013	N90798805	HEXAGON COLLAR NUT IN STOCK	N90798805 HEXAGON COLLAR NUT IN STOCK	$2.08 MSRP: ~~7.29~~ (71.5% off)	2
014	N90863802	HEXAGON HEAD BOLT (COMBI) IN STOCK	N90863802 HEXAGON HEAD BOLT (COMBI) IN STOCK	$2.65 MSRP: ~~7.21~~ (63.2% off)	6
015	470813465B	SIDE REINFORCEMENT	470813465B SIDE REINFORCEMENT	$52.49	1
016	470813466B	SIDE REINFORCEMENT	470813466B SIDE REINFORCEMENT	$52.49	1
017	N10761201	TOOTHED LOCK WASHER	N10761201 TOOTHED LOCK WASHER	$6.17	2
