Timing System - Tappets And Shafts

Ferrari LaFerrari

Find Your Part

Ferrari LaFerrari - TIMING SYSTEM - TAPPETS AND SHAFTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
238485 EXHAUST VALVE $24.26 IN STOCK
198581 INTAKE VALVE $15.80 IN STOCK
Photo Part No Description Price (each) Stock
242574 LOWER STOP CAP $10.20 IN STOCK
247484 LOWER STOP COLLAR $5.55 To Order
Photo Part No Description Price (each) Stock
221473 VALVE STEM OIL SEAL $1.81 IN STOCK
Photo Part No Description Price (each) Stock
238640 EXTERNAL VALVE RETURN SPRING $9.58 To Order
Photo Part No Description Price (each) Stock
238641 INTERNAL VALVE RETURN SPRING $6.84 To Order
Photo Part No Description Price (each) Stock
237390 UPPER STOP CAP $9.20 To Order
Photo Part No Description Price (each) Stock
179763 VALVE SPRING SEMI-CONE $0.85 IN STOCK
Photo Part No Description Price (each) Stock
255431 HYDRAULIC TAPPET $44.27 IN STOCK
Photo Part No Description Price (each) Stock
286638 RH INTAKE CAMSHAFT $822.64 To Order
Photo Part No Description Price (each) Stock
240559 DIAMOND COATED WASHER $8.16 IN STOCK
Photo Part No Description Price (each) Stock
241906 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT $481.97 IN STOCK
Photo Part No Description Price (each) Stock
254892 SCREW $12.16 IN STOCK
Photo Part No Description Price (each) Stock
197975 SEAL RING $6.86 IN STOCK
Photo Part No Description Price (each) Stock
286639 RH EXHAUST CAMSHAFT $822.64 To Order
Photo Part No Description Price (each) Stock
248020 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT $481.97 IN STOCK
Photo Part No Description Price (each) Stock
286640 LH INTAKE CAMSHAFT $822.64 To Order
Photo Part No Description Price (each) Stock
286641 LH EXHAUST CAMSHAFT $822.64 To Order
Photo Part No Description Price (each) Stock
6222848 EXHAUST VALVE SEAT $9.32 To Order
6222847 INTAKE VALVE SEAT $8.80 To Order
Photo Part No Description Price (each) Stock
6213498 VALVE GUIDE $3.15 To Order
View All

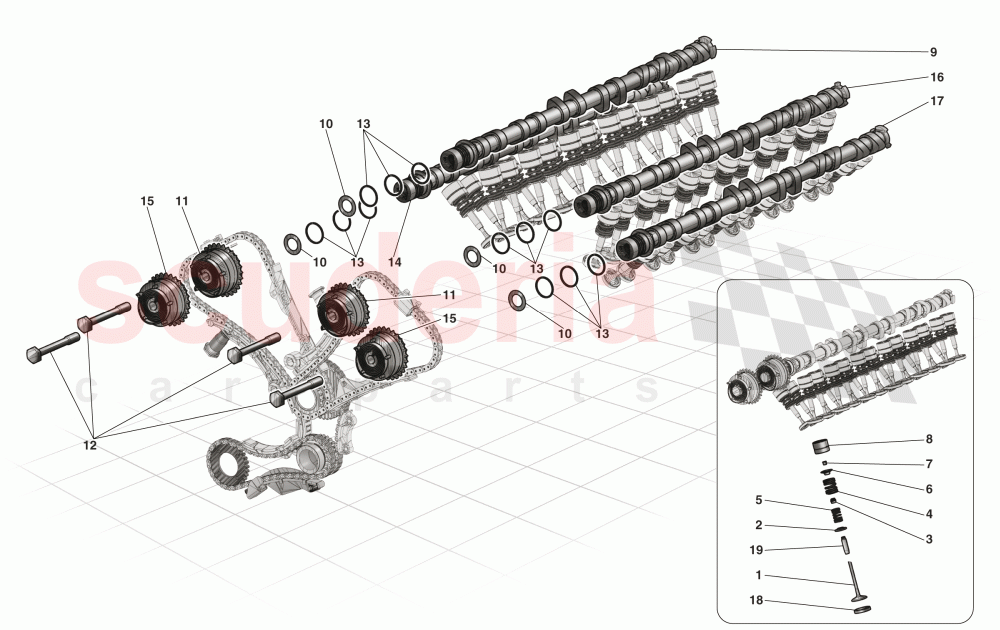

TIMING SYSTEM - TAPPETS AND SHAFTS of Ferrari Ferrari LaFerrari Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 238485
EXHAUST VALVE
IN STOCK 		$24.26 24
1 198581
INTAKE VALVE
IN STOCK 		$15.80 (34.1% off) 24
2 242574
LOWER STOP CAP
IN STOCK 		$10.20 24
2 247484
LOWER STOP COLLAR 		$5.55 24
3 221473
VALVE STEM OIL SEAL
IN STOCK 		$1.81 (30.4% off) 48
4 238640
EXTERNAL VALVE RETURN SPRING 		$9.58 48
5 238641
INTERNAL VALVE RETURN SPRING 		$6.84 48
6 237390
UPPER STOP CAP 		$9.20 48
7 179763
VALVE SPRING SEMI-CONE
IN STOCK 		$0.85 (5.6% off) 96
8 255431
HYDRAULIC TAPPET
IN STOCK 		$44.27 48
9 286638
RH INTAKE CAMSHAFT 		$822.64 1
10 240559
DIAMOND COATED WASHER
IN STOCK 		$8.16 4
11 241906
VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT
IN STOCK 		$481.97 2
12 254892
SCREW
IN STOCK 		$12.16 4
13 197975
SEAL RING
IN STOCK 		$6.86 (46.6% off) 12
14 286639
RH EXHAUST CAMSHAFT 		$822.64 1
15 248020
VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT
IN STOCK 		$481.97 2
16 286640
LH INTAKE CAMSHAFT 		$822.64 1
17 286641
LH EXHAUST CAMSHAFT
Applicable only for S.T. Schedule 		$822.64 1
18 6222848
EXHAUST VALVE SEAT 		$9.32 24
18 6222847
INTAKE VALVE SEAT 		$8.80 24
19 6213498
VALVE GUIDE 		$3.15 (27.3% off) 48
