Left Hand Cylinder Head

Ferrari LaFerrari

Find Your Part

Ferrari LaFerrari - LEFT HAND CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
296080 LH HEAD $3,822.10 To Order
303927 LH HEAD $3,961.94 To Order
Photo Part No Description Price (each) Stock
256827 GRUB SCREW $4.82 To Order
Photo Part No Description Price (each) Stock
127635 THREADED PLUG $2.88 To Order
Photo Part No Description Price (each) Stock
282755 THREADED PLUG $1.87 To Order
Photo Part No Description Price (each) Stock
282400 THREADED PLUG $3.38 To Order
Photo Part No Description Price (each) Stock
127635 THREADED PLUG $2.88 To Order
Photo Part No Description Price (each) Stock
199760 THREADED PLUG $0.29 IN STOCK
Photo Part No Description Price (each) Stock
211641 STUD BOLT $0.98 IN STOCK
Photo Part No Description Price (each) Stock
801187 OIL PRESSURE REGULATOR VALVE $222.93 IN STOCK
Photo Part No Description Price (each) Stock
14304221 SCREW $0.09 To Order
Photo Part No Description Price (each) Stock
11181574 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
292566 LH CYLINDER HEAD COVER $672.64 To Order
Photo Part No Description Price (each) Stock
271521 CONNECTOR $5.92 To Order
Photo Part No Description Price (each) Stock
243802 LH HEAD COVER GASKET $78.67 To Order
Photo Part No Description Price (each) Stock
339948 STUD BOLT $19.02 To Order
Photo Part No Description Price (each) Stock
300510 STUD BOLT $13.53 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
293278 SCREW $12.69 To Order
Photo Part No Description Price (each) Stock
986847 CONICAL WASHER $0.60 To Order
Photo Part No Description Price (each) Stock
229353 SOLENOID VALVE GASKET $18.17 To Order
Photo Part No Description Price (each) Stock
223982 SPARK PLUG TUBE SEAL $2.40 IN STOCK
Photo Part No Description Price (each) Stock
339948 STUD BOLT $19.02 To Order
Photo Part No Description Price (each) Stock
269228 STUD BOLT $5.75 To Order
Photo Part No Description Price (each) Stock
293215 REAR LH HEAD HEAT SHIELD $304.58 To Order
Photo Part No Description Price (each) Stock
293214 FRONT LH HEAD HEAT SHIELD $266.50 To Order
Photo Part No Description Price (each) Stock
11628424 SCREW $0.55 To Order
Photo Part No Description Price (each) Stock
11625524 SCREW $0.69 IN STOCK
Photo Part No Description Price (each) Stock
291172 RH HEAD HEAT SHIELD BRACKET $24.09 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
321187 NUT Enquire To Order
Photo Part No Description Price (each) Stock
151117 WASHER $1.06 IN STOCK
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL $1.01 To Order
Photo Part No Description Price (each) Stock
224573 TIMING SENSOR $37.12 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
294472 WIRING HARNESS MOUNTING BRACKET $25.36 To Order
View All

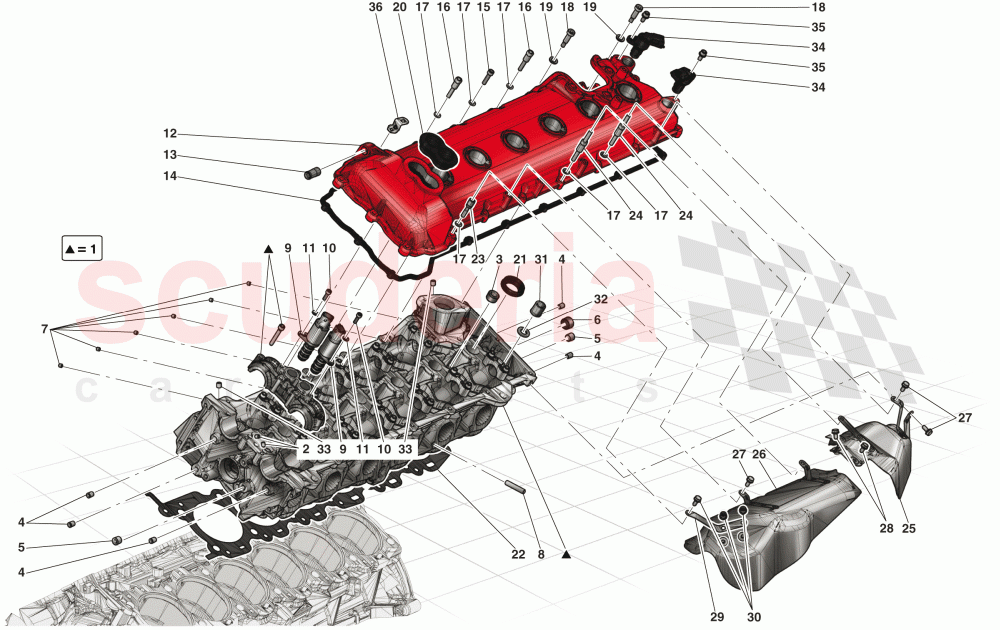

LEFT HAND CYLINDER HEAD of Ferrari Ferrari LaFerrari Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 296080
LH HEAD
Applicable from engine No. 234044; Applicable after depletion of 287816 		$3,822.10 1
1 303927
LH HEAD
Applicable up to engine No. 234043; Applicable until depletion 		$3,961.94 1
2 256827
GRUB SCREW 		$4.82 2
3 127635
THREADED PLUG
M18 X 11 X 1.5 		$2.88 (30.9% off) 12
4 282755
THREADED PLUG 		$1.87 5
5 282400
THREADED PLUG 		$3.38 1
6 127635
THREADED PLUG
M18 X 11 X 1.5 		$2.88 (30.9% off) 1
7 199760
THREADED PLUG
D. 6 X 1
IN STOCK 		$0.29 6
8 211641
STUD BOLT
IN STOCK 		$0.98 (2% off) 12
9 801187
OIL PRESSURE REGULATOR VALVE
IN STOCK 		$222.93 2
10 14304221
SCREW
M5 X 16 		$0.09 2
11 11181574
WASHER
IN STOCK 		$0.02 2
12 292566
LH CYLINDER HEAD COVER 		$672.64 1
13 271521
CONNECTOR 		$5.92 1
14 243802
LH HEAD COVER GASKET 		$78.67 (29.5% off) 1
15 339948
STUD BOLT
M6 X 25 		$19.02 14
16 300510
STUD BOLT 		$13.53 2
17 11197774
WASHER
IN STOCK 		$0.06 (80% off) 18
18 293278
SCREW 		$12.69 2
19 986847
CONICAL WASHER 		$0.60 2
20 229353
SOLENOID VALVE GASKET 		$18.17 (38% off) 1
21 223982
SPARK PLUG TUBE SEAL
IN STOCK 		$2.40 (39.5% off) 6
23 339948
STUD BOLT 		$19.02 1
24 269228
STUD BOLT
M6 X 25 		$5.75 2
25 293215
REAR LH HEAD HEAT SHIELD 		$304.58 1
26 293214
FRONT LH HEAD HEAT SHIELD 		$266.50 1
27 11628424
SCREW 		$0.55 3
28 11625524
SCREW
IN STOCK 		$0.69 2
29 291172
RH HEAD HEAT SHIELD BRACKET 		$24.09 1
30 248334
SCREW
M6 X 12
IN STOCK 		$0.58 3
31 321187
NUT 		- 14 Enquire
32 151117
WASHER
IN STOCK 		$1.06 (7.8% off) 14
33 102725
CENTERING DOWEL 		$1.01 (55.1% off) 2
34 224573
TIMING SENSOR 		$37.12 (33% off) 2
35 248334
SCREW
M6 X 14
IN STOCK 		$0.58 2
36 294472
WIRING HARNESS MOUNTING BRACKET 		$25.36 1
