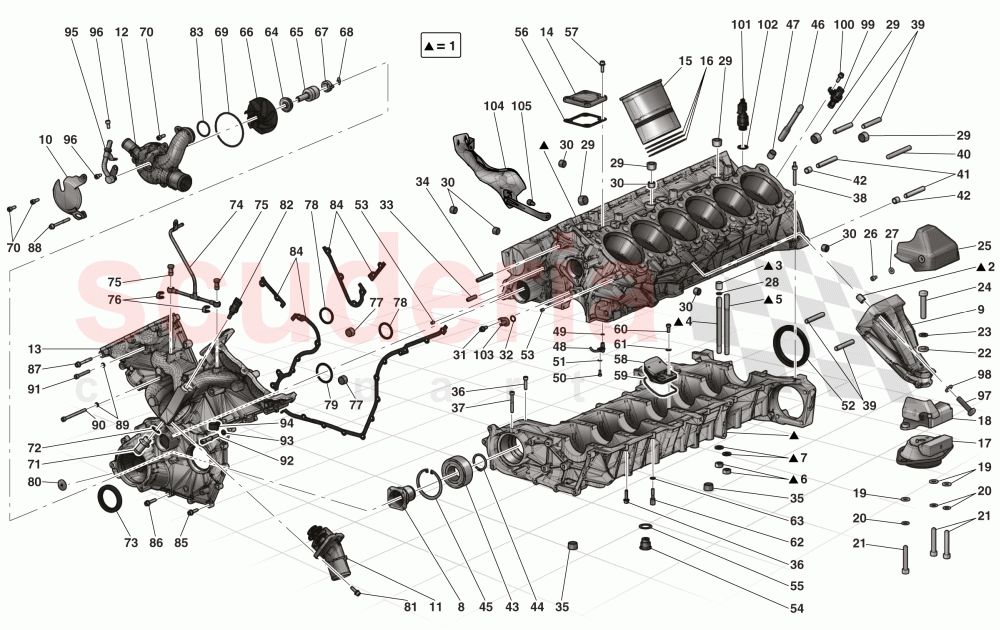

Ferrari LaFerrari - CRANKCASE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	306547	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	$7,638.17	To Order

Photo	Part No	Description	Price (each)	Stock
	218440	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176421	CENTERING DOWEL	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	217796	STUD BOLT	$10.07	To Order

Photo	Part No	Description	Price (each)	Stock
	231823	STUD BOLT	$6.59	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	178348	WASHER D.10.2-20 X 2	$0.73	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	295132	PUMP DRIVE JOINT	$390.56	To Order

Photo	Part No	Description	Price (each)	Stock
	298098	RH ENGINE STRUT	$415.75	To Order
	267424	LH ENGINE STRUT	$302.36	To Order

Photo	Part No	Description	Price (each)	Stock
	305332	PUMP GUARD	$188.96	To Order

Photo	Part No	Description	Price (each)	Stock
	262913	THERMOSTAT/PRESSURE SWITCH	$247.34	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	876523	PUMP COVER	$907.11	To Order

Photo	Part No	Description	Price (each)	Stock
	301653	FRONT CRANKCASE COVER	$3,095.62	To Order

Photo	Part No	Description	Price (each)	Stock
	208451	INSPECTION HATCH COVER	$32.74	To Order

Photo	Part No	Description	Price (each)	Stock
	266366	CYLINDER SLEEVE	$270.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	186251	O-RING	$2.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	271886	COMPL. RH BUSHING	$415.75	To Order
	271887	COMPL. LH BUSHING	$415.75	To Order

Photo	Part No	Description	Price (each)	Stock
	291126	RH BRACKET	$201.56	To Order
	291127	LH BRACKET	$201.56	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	$1.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127497	SPRING WASHER M10	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14308134	SCREW	$2.43	To Order

Photo	Part No	Description	Price (each)	Stock
	10738021	WASHER	$1.09	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127498	WASHER	$0.14	To Order

Photo	Part No	Description	Price (each)	Stock
	15215834	SCREW	$1.52	To Order

Photo	Part No	Description	Price (each)	Stock
	292705	HEAT SHIELD	$214.17	To Order

Photo	Part No	Description	Price (each)	Stock
	14305024	SCREW	$0.17	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	$0.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	134704	O-RING	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	$5.71	To Order

Photo	Part No	Description	Price (each)	Stock
	164400	THREADED PLUG	$3.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	282393	SCREW	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	137192	O-RING	$0.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13543124	STUD BOLT	$5.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13543824	STUD BOLT	$3.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	$5.71	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	$0.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	219283	STUD BOLT	$16.36	To Order

Photo	Part No	Description	Price (each)	Stock
	13546834	STUD BOLT	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	13547234	STUD BOLT	$13.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13546934	STUD BOLT	$1.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	100052	CENTERING DOWEL	$2.22	To Order

Photo	Part No	Description	Price (each)	Stock
	128799	BEARING	$90.69	To Order

Photo	Part No	Description	Price (each)	Stock
	11068376	SEEGER RING	$0.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11061576	SEEGER RING	$1.52	To Order

Photo	Part No	Description	Price (each)	Stock
	802590	STUD BOLT CRANKCASE	$13.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	$2.78	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	264087	PISTON COOLING NOZZLE	$28.56	To Order

Photo	Part No	Description	Price (each)	Stock
	164877	O-RING	$0.27	To Order

Photo	Part No	Description	Price (each)	Stock
	14302921	SCREW	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	242269	REAR MAIN OIL SEAL	$46.19	To Order

Photo	Part No	Description	Price (each)	Stock
	175611	CENTERING DOWEL	$1.67	To Order

Photo	Part No	Description	Price (each)	Stock
	104280	MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5	$5.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10261860	GASKET	$0.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	317312	GASKET	$3.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	255136	COMPL. VALVE HOLDER	$239.36	To Order

Photo	Part No	Description	Price (each)	Stock
	154691	GASKET	$1.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13026924	SCREW	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	339948	STUD BOLT	$18.89	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	252192	WATER PUMP GASKET	$194.51	To Order

Photo	Part No	Description	Price (each)	Stock
	295219	WATER PUMP BEARING	$204.72	To Order

Photo	Part No	Description	Price (each)	Stock
	917267	WATER PUMP ROTOR	$194.57	To Order

Photo	Part No	Description	Price (each)	Stock
	295218	JOINT	$247.52	To Order

Photo	Part No	Description	Price (each)	Stock
	255939	CLIP	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	253797	GASKET	$5.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	253823	CONNECTOR	$111.80	To Order

Photo	Part No	Description	Price (each)	Stock
	11270550	O-RING	$0.93	To Order

Photo	Part No	Description	Price (each)	Stock
	210359	GASKET CRANKCASE D.48-65-8	$39.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	306599	VAPOUR VENT PIPE	$239.36	To Order

Photo	Part No	Description	Price (each)	Stock
	211847	HOSE	$142.79	To Order

Photo	Part No	Description	Price (each)	Stock
	10260160	Copper Washer D. 10 - 14 x 1	$0.71	IN STOCK
	10260960	GASKET	$0.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	$2.86	To Order

Photo	Part No	Description	Price (each)	Stock
	183010	O-RING D-32.93	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	289278	O-RING	$2.86	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10159001	PLUG	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	$28.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	271463	O-RING	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	255495	SCREW	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	216292	GASKET	$3.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10589624	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	$0.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	260965	STUD BOLT	$5.04	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	316888	CLIP	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	302329	PUMP INLET PIPE	$516.54	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11234734	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	11190574	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	857098	ANGULAR SPEED SENSOR	$78.29	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	304074	OIL PRESSURE SENDER	$218.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	$0.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	294944	COMPL. CHAIN COOLING NOZZLE	$91.95	To Order

Photo	Part No	Description	Price (each)	Stock
	290295	ALTERNATOR HEAT SHIELD	$201.56	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	306547	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	306547 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	$7,638.17	1
2	218440	THREADED INSERT	218440 THREADED INSERT	-	8	Enquire
3	176421	CENTERING DOWEL	176421 CENTERING DOWEL	$4.03	14
4	217796	STUD BOLT	217796 STUD BOLT	$10.07	14
5	231823	STUD BOLT	231823 STUD BOLT	$6.59	14
6	133988	HEX NUT M10 X 1.25 X 8 IN STOCK	133988 HEX NUT M10 X 1.25 X 8 IN STOCK	$0.20 MSRP: ~~0.35~~ (42.9% off)	28
7	178348	WASHER D.10.2-20 X 2 IN STOCK	178348 WASHER D.10.2-20 X 2 IN STOCK	$0.73	28
8	295132	PUMP DRIVE JOINT	295132 PUMP DRIVE JOINT	$390.56	1
9	298098	RH ENGINE STRUT	298098 RH ENGINE STRUT	$415.75	1
9	267424	LH ENGINE STRUT	267424 LH ENGINE STRUT	$302.36	1
10	305332	PUMP GUARD	305332 PUMP GUARD	$188.96	1
11	262913	THERMOSTAT/PRESSURE SWITCH ARRIVING SOON	262913 THERMOSTAT/PRESSURE SWITCH ARRIVING SOON	$247.34 MSRP: ~~360.40~~ (31.4% off)	1
12	876523	PUMP COVER	876523 PUMP COVER	$907.11	1
13	301653	FRONT CRANKCASE COVER	301653 FRONT CRANKCASE COVER	$3,095.62	1
14	208451	INSPECTION HATCH COVER	208451 INSPECTION HATCH COVER	$32.74	1
15	266366	CYLINDER SLEEVE IN STOCK	266366 CYLINDER SLEEVE IN STOCK	$270.74 MSRP: ~~466.10~~ (41.9% off)	12
16	186251	O-RING IN STOCK	186251 O-RING IN STOCK	$2.42 MSRP: ~~3.20~~ (24.4% off)	36
17	271886	COMPL. RH BUSHING	271886 COMPL. RH BUSHING	$415.75	1
17	271887	COMPL. LH BUSHING	271887 COMPL. LH BUSHING	$415.75	1
18	291126	RH BRACKET	291126 RH BRACKET	$201.56	1
18	291127	LH BRACKET	291127 LH BRACKET	$201.56	1
19	126648	WASHER D.10.5-21 X 2 IN STOCK	126648 WASHER D.10.5-21 X 2 IN STOCK	$1.66 MSRP: ~~1.75~~ (5.1% off)	6
20	127497	SPRING WASHER M10 IN STOCK	127497 SPRING WASHER M10 IN STOCK	$0.06 MSRP: ~~0.75~~ (92% off)	6
21	14308134	SCREW	14308134 SCREW	$2.43	6
22	10738021	WASHER IN STOCK	10738021 WASHER IN STOCK	$1.09	2
23	127498	WASHER	127498 WASHER	$0.14 MSRP: ~~0.60~~ (76.7% off)	2
24	15215834	SCREW	15215834 SCREW	$1.52	2
25	292705	HEAT SHIELD	292705 HEAT SHIELD	$214.17	2
26	14305024	SCREW	14305024 SCREW	$0.17	4
27	14498801	WASHER IN STOCK	14498801 WASHER IN STOCK	$0.11 MSRP: ~~0.20~~ (45% off)	4
28	134704	O-RING IN STOCK	134704 O-RING IN STOCK	$0.14 MSRP: ~~1.00~~ (86% off)	28
29	282753	THREADED PLUG	282753 THREADED PLUG	$5.71	5
30	164400	THREADED PLUG IN STOCK	164400 THREADED PLUG IN STOCK	$3.28	6
31	282393	SCREW	282393 SCREW	$0.67	1
32	137192	O-RING IN STOCK	137192 O-RING IN STOCK	$0.33 MSRP: ~~0.50~~ (34% off)	1
33	13543124	STUD BOLT IN STOCK	13543124 STUD BOLT IN STOCK	$5.96	1
34	13543824	STUD BOLT IN STOCK	13543824 STUD BOLT IN STOCK	$3.24	1
35	282753	THREADED PLUG	282753 THREADED PLUG	$5.71	2
36	231620	SCREW IN STOCK	231620 SCREW M6 X 25 IN STOCK	$0.30 MSRP: ~~0.35~~ (14.3% off)	14
37	231624	SCREW IN STOCK	231624 SCREW M6 X 45 IN STOCK	$0.41	1
38	219283	STUD BOLT	219283 STUD BOLT	$16.36	1
39	13546834	STUD BOLT	13546834 STUD BOLT	$1.43	4
40	13547234	STUD BOLT IN STOCK	13547234 STUD BOLT IN STOCK	$13.43	1
41	13546934	STUD BOLT IN STOCK	13546934 STUD BOLT IN STOCK	$1.67	2
42	100052	CENTERING DOWEL	100052 CENTERING DOWEL	$2.22	2
43	128799	BEARING	128799 BEARING	$90.69	1
44	11068376	SEEGER RING IN STOCK	11068376 SEEGER RING IN STOCK	$0.41 MSRP: ~~0.66~~ (37.9% off)	1
45	11061576	SEEGER RING	11061576 SEEGER RING	$1.52	1
46	802590	STUD BOLT CRANKCASE IN STOCK	802590 STUD BOLT CRANKCASE IN STOCK	$13.02	28
47	185360	CENTERING DOWEL IN STOCK	185360 CENTERING DOWEL IN STOCK	$2.78	4
48	264087	PISTON COOLING NOZZLE	264087 PISTON COOLING NOZZLE	$28.56	12
49	164877	O-RING	164877 O-RING	$0.27	12
50	14302921	SCREW	14302921 SCREW	$0.06	12
51	11181474	WASHER	11181474 WASHER	$0.06	12
52	242269	REAR MAIN OIL SEAL	242269 REAR MAIN OIL SEAL	$46.19	1
53	175611	CENTERING DOWEL	175611 CENTERING DOWEL	$1.67	2
54	104280	MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5 IN STOCK	104280 MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5 IN STOCK	$5.38 MSRP: ~~6.90~~ (22% off)	1
55	10261860	GASKET IN STOCK	10261860 GASKET IN STOCK	$0.43 MSRP: ~~1.00~~ (57% off)	1
56	317312	GASKET IN STOCK	317312 GASKET IN STOCK	$3.25	1
57	231619	SCREW IN STOCK	231619 SCREW M6 X 20 IN STOCK	$0.29	4
58	255136	COMPL. VALVE HOLDER	255136 COMPL. VALVE HOLDER	$239.36	6
59	154691	GASKET IN STOCK	154691 GASKET IN STOCK	$1.52 MSRP: ~~2.40~~ (36.7% off)	6
60	13026924	SCREW	13026924 SCREW	$0.29	12
61	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	12
62	339948	STUD BOLT	339948 STUD BOLT	$18.89	3
63	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	3
64	252192	WATER PUMP GASKET	252192 WATER PUMP GASKET	$194.51	1
65	295219	WATER PUMP BEARING	295219 WATER PUMP BEARING	$204.72	1
66	917267	WATER PUMP ROTOR	917267 WATER PUMP ROTOR	$194.57	1
67	295218	JOINT	295218 JOINT	$247.52	1
68	255939	CLIP	255939 CLIP	$0.11	1
69	253797	GASKET IN STOCK	253797 GASKET IN STOCK	$5.38	1
70	231619	SCREW IN STOCK	231619 SCREW M6 X 18 IN STOCK	$0.29	3
71	253823	CONNECTOR	253823 CONNECTOR	$111.80	1
72	11270550	O-RING	11270550 O-RING	$0.93	1
73	210359	GASKET CRANKCASE D.48-65-8 IN STOCK	210359 GASKET CRANKCASE D.48-65-8 IN STOCK	$39.03	1
74	306599	VAPOUR VENT PIPE	306599 VAPOUR VENT PIPE	$239.36	1
75	211847	HOSE	211847 HOSE	$142.79	2
76	10260160	Copper Washer D. 10 - 14 x 1 IN STOCK	10260160 Copper Washer D. 10 - 14 x 1 Applicable after depletion of 292186 IN STOCK	$0.71 MSRP: ~~0.90~~ (21.1% off)	4
76	10260960	GASKET IN STOCK	10260960 GASKET Applicable until depletion IN STOCK	$0.15	2
77	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5	$2.86 MSRP: ~~4.17~~ (31.4% off)	2
78	183010	O-RING D-32.93 IN STOCK	183010 O-RING D-32.93 IN STOCK	$1.60 MSRP: ~~2.89~~ (44.6% off)	2
79	289278	O-RING IN STOCK	289278 O-RING IN STOCK	$2.86	1
80	10159001	PLUG	10159001 PLUG	$0.41	1
81	231619	SCREW IN STOCK	231619 SCREW M6 X 20 IN STOCK	$0.29	4
82	180137	TEMPERATURE SENSOR IN STOCK	180137 TEMPERATURE SENSOR IN STOCK	$28.34 MSRP: ~~32.99~~ (14.1% off)	1
83	271463	O-RING	271463 O-RING	$1.34	1
85	231620	SCREW IN STOCK	231620 SCREW M6 X 25 IN STOCK	$0.30 MSRP: ~~0.35~~ (14.3% off)	5
86	231620	SCREW IN STOCK	231620 SCREW M6 X 30 IN STOCK	$0.30 MSRP: ~~0.35~~ (14.3% off)	8
87	231625	SCREW IN STOCK	231625 SCREW M6 X 50 IN STOCK	$0.56	9
88	255495	SCREW	255495 SCREW	$0.81	1
89	216292	GASKET IN STOCK	216292 GASKET IN STOCK	$3.77	5
90	10589624	SCREW IN STOCK	10589624 SCREW IN STOCK	$0.29	3
91	231624	SCREW IN STOCK	231624 SCREW IN STOCK	$0.41	2
92	260965	STUD BOLT	260965 STUD BOLT M6 X 23	$5.04	1
93	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	1
94	316888	CLIP IN STOCK	316888 CLIP IN STOCK	$0.20	1
95	302329	PUMP INLET PIPE	302329 PUMP INLET PIPE	$516.54	1
96	248334	SCREW IN STOCK	248334 SCREW M6 X 12 IN STOCK	$0.58	2
97	11234734	SCREW	11234734 SCREW	$0.68	8
98	11190574	WASHER IN STOCK	11190574 WASHER IN STOCK	$0.06	8
99	857098	ANGULAR SPEED SENSOR	857098 ANGULAR SPEED SENSOR	$78.29	1
100	231619	SCREW IN STOCK	231619 SCREW M6 X 20 IN STOCK	$0.29	1
101	304074	OIL PRESSURE SENDER IN STOCK	304074 OIL PRESSURE SENDER IN STOCK	$218.70 MSRP: ~~287.64~~ (24% off)	1
102	10259960	Copper Washer 18 - 24 x 1.5 IN STOCK	10259960 Copper Washer 18 - 24 x 1.5 No longer supplied IN STOCK	$0.30 MSRP: ~~1.25~~ (76% off)	1
103	294944	COMPL. CHAIN COOLING NOZZLE	294944 COMPL. CHAIN COOLING NOZZLE	$91.95	1
104	290295	ALTERNATOR HEAT SHIELD	290295 ALTERNATOR HEAT SHIELD	$201.56	1
105	248334	SCREW IN STOCK	248334 SCREW M6 X 12 IN STOCK	$0.58	2
