Ferrari GTC4Lusso - TIMING SYSTEM - TAPPETS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
241906 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT $483.95 IN STOCK
Photo Part No Description Price (each) Stock
254892 SCREW $12.21 IN STOCK
Photo Part No Description Price (each) Stock
197975 SEAL RING $6.88 IN STOCK
Photo Part No Description Price (each) Stock
240559 DIAMOND COATED WASHER $8.20 IN STOCK
Photo Part No Description Price (each) Stock
261603 RH INTAKE CAMSHAFT $8,127.62 To Order
Photo Part No Description Price (each) Stock
313538 LH INTAKE CAMSHAFT $501.03 To Order
Photo Part No Description Price (each) Stock
248020 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT $483.95 IN STOCK
Photo Part No Description Price (each) Stock
261605 RH EXHAUST CAMSHAFT $8,127.62 To Order
Photo Part No Description Price (each) Stock
313539 LH EXHAUST CAMSHAFT $501.03 To Order
Photo Part No Description Price (each) Stock
247480 HYDRAULIC TAPPET $89.85 IN STOCK
Photo Part No Description Price (each) Stock
179763 VALVE SPRING SEMI-CONE $0.85 IN STOCK
Photo Part No Description Price (each) Stock
237390 UPPER STOP CAP $9.24 To Order
Photo Part No Description Price (each) Stock
228824 INTERNAL VALVE RETURN SPRING $6.96 To Order
Photo Part No Description Price (each) Stock
228823 EXTERNAL VALVE RETURN SPRING $9.10 To Order
Photo Part No Description Price (each) Stock
221473 VALVE STEM OIL SEAL $1.82 IN STOCK
Photo Part No Description Price (each) Stock
247484 LOWER STOP COLLAR $5.57 To Order
Photo Part No Description Price (each) Stock
6213498 VALVE GUIDE $3.16 To Order
Photo Part No Description Price (each) Stock
238485 EXHAUST VALVE $24.36 IN STOCK
198581 INTAKE VALVE $15.86 IN STOCK
Photo Part No Description Price (each) Stock
6222848 EXHAUST VALVE SEAT $9.36 To Order
6222847 INTAKE VALVE SEAT $8.84 To Order
View All

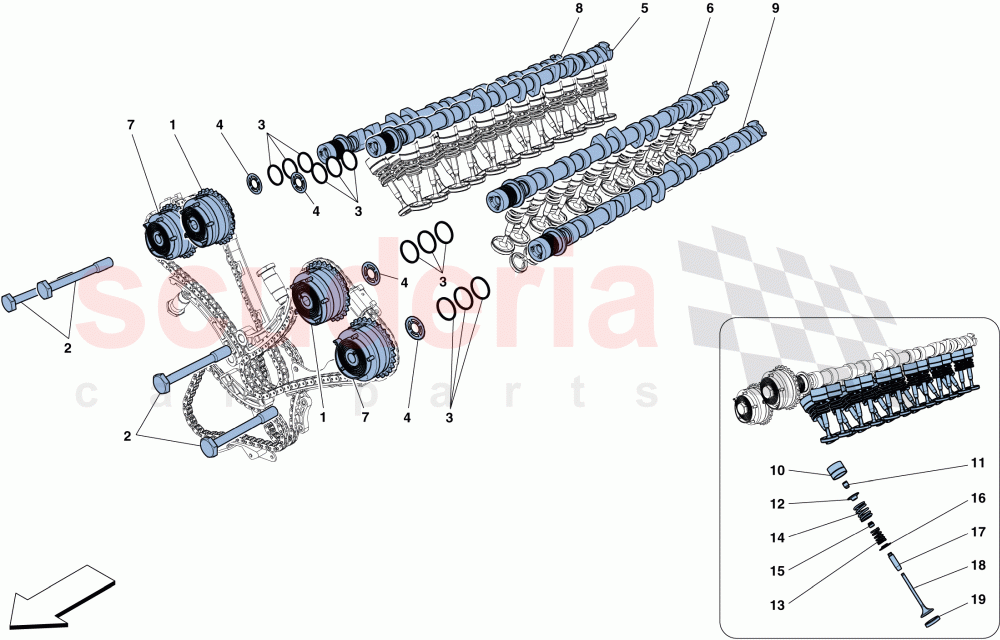

TIMING SYSTEM - TAPPETS of Ferrari Ferrari GTC4Lusso Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 241906
VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT
IN STOCK 		$483.95 2
2 254892
SCREW
M14 X 1.5
IN STOCK 		$12.21 4
3 197975
SEAL RING
Also comes with engine gasket set
IN STOCK 		$6.88 (46.5% off) 12
4 240559
DIAMOND COATED WASHER
IN STOCK 		$8.20 4
5 261603
RH INTAKE CAMSHAFT 		$8,127.62 1
6 313538
LH INTAKE CAMSHAFT 		$501.03 1
7 248020
VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT
IN STOCK 		$483.95 2
8 261605
RH EXHAUST CAMSHAFT 		$8,127.62 1
9 313539
LH EXHAUST CAMSHAFT 		$501.03 1
10 247480
HYDRAULIC TAPPET
IN STOCK 		$89.85 48
11 179763
VALVE SPRING SEMI-CONE
IN STOCK 		$0.85 (5.6% off) 96
12 237390
UPPER STOP CAP 		$9.24 48
13 228824
INTERNAL VALVE RETURN SPRING 		$6.96 48
14 228823
EXTERNAL VALVE RETURN SPRING 		$9.10 48
15 221473
VALVE STEM OIL SEAL
Also comes with engine gasket set
IN STOCK 		$1.82 (30% off) 48
16 247484
LOWER STOP COLLAR 		$5.57 48
17 6213498
VALVE GUIDE 		$3.16 (27% off) 48
18 238485
EXHAUST VALVE
IN STOCK 		$24.36 24
18 198581
INTAKE VALVE
IN STOCK 		$15.86 (33.8% off) 24
19 6222848
EXHAUST VALVE SEAT 		$9.36 24
19 6222847
INTAKE VALVE SEAT 		$8.84 24
