Intake Manifold

Ferrari GTC4Lusso

Find Your Part

Ferrari GTC4Lusso - INTAKE MANIFOLD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
314457 COMPL. INTAKE MANIFOLD $4,627.16 To Order
Photo Part No Description Price (each) Stock
318409 INLET MANIFOLD GASKET $256.86 IN STOCK
Photo Part No Description Price (each) Stock
317648 RH Inlet Manifold Gasket $68.00 To Order
Photo Part No Description Price (each) Stock
317649 LH Inlet Manifold Gasket $68.00 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
257850 COMPL. LH LINER HOLDER FRAME $392.34 To Order
257849 COMPL. RH LINER HOLDER FRAME $392.34 To Order
Photo Part No Description Price (each) Stock
231624 SCREW $0.41 IN STOCK
Photo Part No Description Price (each) Stock
257851 RUBBER LINER $39.21 To Order
Photo Part No Description Price (each) Stock
268877 CONNECTOR $64.53 To Order
Photo Part No Description Price (each) Stock
268875 CONNECTOR $33.75 To Order
Photo Part No Description Price (each) Stock
291079 CONNECTOR $240.45 To Order
Photo Part No Description Price (each) Stock
287120 SCREW $44.60 To Order
Photo Part No Description Price (each) Stock
216292 GASKET $3.79 IN STOCK
Photo Part No Description Price (each) Stock
14300434 SCREW $2.27 IN STOCK
14300434 SCREW $2.27 IN STOCK
14303834 SCREW $1.43 IN STOCK
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
262736 BRACKET $8.84 To Order
Photo Part No Description Price (each) Stock
276166 RH FLUSH PIPE $164.52 To Order
Photo Part No Description Price (each) Stock
276167 LH FLUSH PIPE $164.52 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 IN STOCK
Photo Part No Description Price (each) Stock
261374 BRACKET $215.15 To Order
Photo Part No Description Price (each) Stock
198273 CLIP $1.53 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
245028 AIR FLOW METER $379.26 IN STOCK
Photo Part No Description Price (each) Stock
331005 THROTTLE BODY $719.29 IN STOCK
Photo Part No Description Price (each) Stock
240262 SPACER FOR THROTTLE BODY $104.25 To Order
Photo Part No Description Price (each) Stock
285240 BRACKET $12.64 To Order
285240 BRACKET $12.64 To Order
Photo Part No Description Price (each) Stock
282233 RH SLEEVE $227.80 To Order
282233 RH SLEEVE $227.80 To Order
269866 RH CONNECTOR PIPE $151.85 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
190151 Clamp $3.31 IN STOCK
Photo Part No Description Price (each) Stock
900284 HOSE SCREW COLLAR D.80-100 X 9 $5.24 IN STOCK
Photo Part No Description Price (each) Stock
266404 CONNECTOR PIPE $102.51 To Order
Photo Part No Description Price (each) Stock
219786 THREADED PLUG $14.35 To Order
219786 THREADED PLUG $14.35 To Order
View All

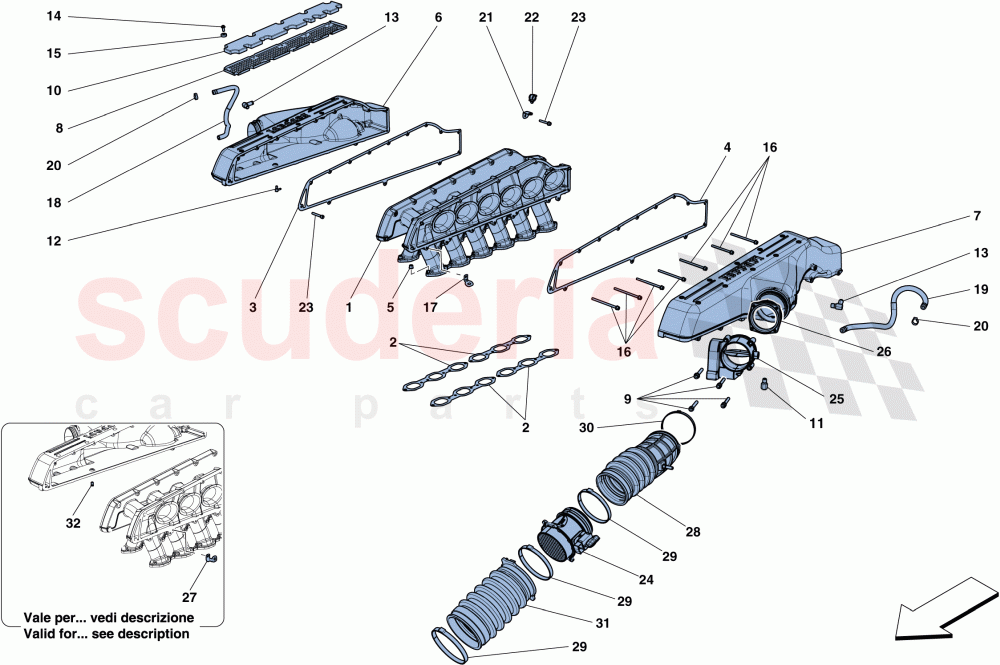

INTAKE MANIFOLD of Ferrari Ferrari GTC4Lusso Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 314457
COMPL. INTAKE MANIFOLD 		$4,627.16 1
2 318409
INLET MANIFOLD GASKET
Also comes with engine gasket set
IN STOCK 		$256.86 4
3 317648
RH Inlet Manifold Gasket
Also comes with engine gasket set 		$68.00 1
4 317649
LH Inlet Manifold Gasket
Also comes with engine gasket set 		$68.00 1
5 14059290
FLANGED NUT M6
IN STOCK 		$1.31 24
8 257850
COMPL. LH LINER HOLDER FRAME 		$392.34 1
8 257849
COMPL. RH LINER HOLDER FRAME 		$392.34 1
9 231624
SCREW
M6 X 45
IN STOCK 		$0.41 8
10 257851
RUBBER LINER 		$39.21 2
11 268877
CONNECTOR 		$64.53 2
12 268875
CONNECTOR
Not for USA, CDN, USA LIGHT 		$33.75 2
13 291079
CONNECTOR 		$240.45 2
14 287120
SCREW
M6 X 14 X 1 		$44.60 20
15 216292
GASKET
Also comes with engine gasket set
IN STOCK 		$3.79 20
16 14300434
SCREW
M6 X 95; Fastening plenums in lower area; Applicable for USA, CDN, USA LIGHT
IN STOCK 		$2.27 12
16 14300434
SCREW
M6 X 95; Fastening plenums in lower area; Not for USA, CDN, USA LIGHT
IN STOCK 		$2.27 12
16 14303834
SCREW
M6 X 60; Fastening plenum in area under RH pump; Applicable for USA, CDN, USA LIGHT
IN STOCK 		$1.43 1
16 14303834
SCREW
M6 X 60; Fastening plenum in area under RH pump; Not for USA, CDN, USA LIGHT
IN STOCK 		$1.43 1
16 278351
SCREW
M6 X 85; Fastening plenum in area under RH pump; Applicable for USA, CDN, USA LIGHT
IN STOCK 		$6.17 1
16 278351
SCREW
M6 X 85; Fastening plenum in area under RH pump; Not for USA, CDN, USA LIGHT
IN STOCK 		$6.17 1
16 14300534
SCREW
M6 X 75; Lower rear fastening for LH plenum in area under pump; Applicable for USA, CDN, USA LIGHT
IN STOCK 		$2.37 1
16 14300534
SCREW
M6 X 75; Lower rear fastening for LH plenum in area under pump; Not for USA, CDN, USA LIGHT
IN STOCK 		$2.37 1
16 285568
SCREW
M6 X 40 X 1; Fastening plenum to manifold 		$0.43 20
17 262736
BRACKET 		$8.84 2
18 276166
RH FLUSH PIPE 		$164.52 1
19 276167
LH FLUSH PIPE 		$164.52 1
20 13432070
HOSE COLLAR
IN STOCK 		$0.49 (54.2% off) 4
21 261374
BRACKET 		$215.15 1
22 198273
CLIP 		$1.53 1
23 248334
SCREW
IN STOCK 		$0.58 3
24 245028
AIR FLOW METER
IN STOCK 		$379.26 (26.3% off) 2
25 331005
THROTTLE BODY
IN STOCK 		$719.29 2
26 240262
SPACER FOR THROTTLE BODY 		$104.25 (41.7% off) 2
27 285240
BRACKET
Applicable for USA, CDN, USA LIGHT 		$12.64 2
27 285240
BRACKET
Applicable for EU GS, AUS, UK; Applicable from engine No. 370176 		$12.64 2
28 282233
RH SLEEVE
Applicable for USA, CDN, USA LIGHT 		$227.80 1
28 282233
RH SLEEVE
Applicable for EU GS, AUS, UK; Applicable from engine No. 370176 		$227.80 1
28 269866
RH CONNECTOR PIPE
Applicable for EU GS, AUS, UK; Applicable up to engine No. 370175 		$151.85 1
28 269866
RH CONNECTOR PIPE
Not for EU GS, AUS, USA, CDN, UK, USA LIGHT 		$151.85 1
28 282234
LH SLEEVE
Applicable for USA, CDN, USA LIGHT 		$227.80 1
28 282234
LH SLEEVE
Applicable for EU GS, AUS, UK; Applicable from engine No. 370176 		$227.80 1
28 269867
LH CONNECTOR PIPE
Applicable for EU GS, AUS, UK; Applicable up to engine No. 370175 		$151.85 1
28 269867
LH CONNECTOR PIPE
Not for EU GS, AUS, USA, CDN, UK, USA LIGHT 		$151.85 1
29 190151
Clamp
IN STOCK 		$3.31 (21.2% off) 6
30 900284
HOSE SCREW COLLAR D.80-100 X 9
IN STOCK 		$5.24 2
31 266404
CONNECTOR PIPE 		$102.51 2
32 219786
THREADED PLUG
Applicable for EU GS, AUS, UK; Applicable from engine No. 370176 		$14.35 2
32 219786
THREADED PLUG
Applicable for USA, CDN, USA LIGHT 		$14.35 2
