Cooling - Water / Oil Pump

Ferrari GTC4Lusso

Find Your Part

Ferrari GTC4Lusso - COOLING - WATER / OIL PUMP

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
319249 OIL / WATER PUMPS $3,802.19 IN STOCK
Photo Part No Description Price (each) Stock
140071 O-RING 3 X 3 X 1 $0.57 IN STOCK
Photo Part No Description Price (each) Stock
133938 O-RING $0.52 IN STOCK
Photo Part No Description Price (each) Stock
14359324 SCREW $0.69 IN STOCK
Photo Part No Description Price (each) Stock
14306424 SCREW $0.23 IN STOCK
Photo Part No Description Price (each) Stock
185345 SCREW $2.59 To Order
Photo Part No Description Price (each) Stock
986847 CONICAL WASHER $0.60 To Order
Photo Part No Description Price (each) Stock
132829 O-RING $1.32 IN STOCK
Photo Part No Description Price (each) Stock
862084 GASKET $4.93 To Order
Photo Part No Description Price (each) Stock
267393 PUMP WATER INLET COVER $152.34 To Order
Photo Part No Description Price (each) Stock
154191 GASKET $1.32 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
14304824 SCREW $0.26 To Order
Photo Part No Description Price (each) Stock
11194374 WASHER $0.52 IN STOCK
Photo Part No Description Price (each) Stock
331418 CONNECTOR $43.15 To Order
Photo Part No Description Price (each) Stock
14457081 O-RING D.2.62 $0.37 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
333737 WIRING HARNESS MOUNTING BRACKET $102.83 To Order
Photo Part No Description Price (each) Stock
915754 OIL FILTER $92.56 IN STOCK
Photo Part No Description Price (each) Stock
177604 THREADED CONNECTOR $13.54 To Order
Photo Part No Description Price (each) Stock
295119 PROTECTIVE SHIELD $228.53 To Order
Photo Part No Description Price (each) Stock
325818 WIRING HARNESS MOUNTING BRACKET $16.49 To Order
View All

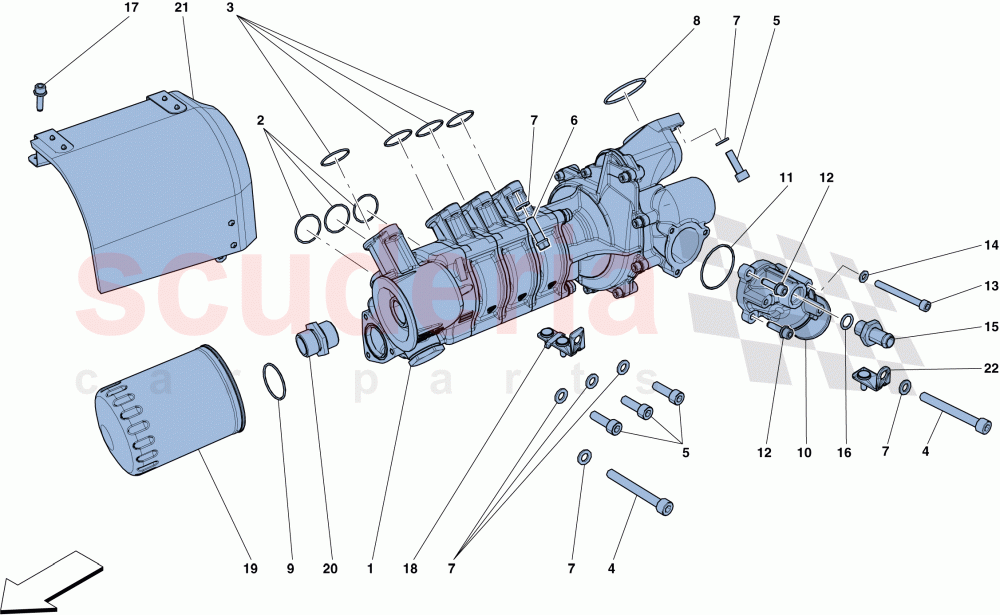

COOLING - WATER / OIL PUMP of Ferrari Ferrari GTC4Lusso Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 319249
OIL / WATER PUMPS
IN STOCK 		$3,802.19 1
2 140071
O-RING 3 X 3 X 1
Also comes with engine gasket set
IN STOCK 		$0.57 (80.7% off) 3
3 133938
O-RING
Also comes with engine gasket set
IN STOCK 		$0.52 (56.7% off) 4
4 14359324
SCREW
M8 X 65
IN STOCK 		$0.69 2
5 14306424
SCREW
IN STOCK 		$0.23 (43.9% off) 4
6 185345
SCREW
M8 X 1.25 X 25 		$2.59 4
7 986847
CONICAL WASHER 		$0.60 10
8 132829
O-RING
Also comes with engine gasket set
IN STOCK 		$1.32 (32.3% off) 1
9 862084
GASKET
Also comes with engine gasket set 		$4.93 1
10 267393
PUMP WATER INLET COVER 		$152.34 1
11 154191
GASKET
Also comes with engine gasket set
IN STOCK 		$1.32 (47.6% off) 1
12 231619
SCREW
M6 X 20
IN STOCK 		$0.29 2
13 14304824
SCREW
M6 X 55 		$0.26 1
14 11194374
WASHER
IN STOCK 		$0.52 1
15 331418
CONNECTOR 		$43.15 1
16 14457081
O-RING D.2.62
Also comes with engine gasket set
IN STOCK 		$0.37 1
17 248334
SCREW
IN STOCK 		$0.58 3
18 333737
WIRING HARNESS MOUNTING BRACKET 		$102.83 1
19 915754
OIL FILTER
IN STOCK 		$92.56 1
20 177604
THREADED CONNECTOR 		$13.54 1
21 295119
PROTECTIVE SHIELD 		$228.53 1
22 325818
WIRING HARNESS MOUNTING BRACKET 		$16.49 1
