Injection - Ignition System

Ferrari FF

Find Your Part

Ferrari FF - INJECTION - IGNITION SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
297423 SPARK PLUG $31.96 IN STOCK
Photo Part No Description Price (each) Stock
260166 COMPL. FRONT RH FUEL PIPE $2,365.65 To Order
260166 COMPL. FRONT RH FUEL PIPE $2,365.65 To Order
311300 COMPL. FRONT RH FUEL PIPE $2,058.83 To Order
Photo Part No Description Price (each) Stock
311301 COMPL. FRONT LH FUEL PIPE $2,058.83 To Order
260167 COMPL. FRONT LH FUEL PIPE $2,365.65 To Order
260167 COMPL. FRONT LH FUEL PIPE $2,365.65 To Order
Photo Part No Description Price (each) Stock
311302 COMPL. REAR FUEL PIPE $1,660.46 To Order
255639 COMPL. REAR FUEL PIPE $1,865.44 To Order
255639 COMPL. REAR FUEL PIPE $1,865.44 To Order
Photo Part No Description Price (each) Stock
247918 FUEL PIPE CONNECTING FRONT AND REAR RAILS $244.93 To Order
Photo Part No Description Price (each) Stock
255724 SHIM $7.65 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
260965 STUD BOLT $5.15 To Order
Photo Part No Description Price (each) Stock
14303834 SCREW $1.47 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
259334 RH FUEL PUMP $498.49 To Order
Photo Part No Description Price (each) Stock
259335 LH FUEL PUMP $577.54 To Order
Photo Part No Description Price (each) Stock
212797 CUP $63.16 To Order
Photo Part No Description Price (each) Stock
14305428 SCREW $0.39 To Order
Photo Part No Description Price (each) Stock
12639724 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
327854 RH FUEL PIPE $270.71 To Order
Photo Part No Description Price (each) Stock
254516 LH FUEL PIPE $270.71 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
248334 SCREW $0.59 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 ARRIVING SOON
Photo Part No Description Price (each) Stock
284961 MOUNTING BRACKET $91.51 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.59 IN STOCK
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.59 IN STOCK
View All

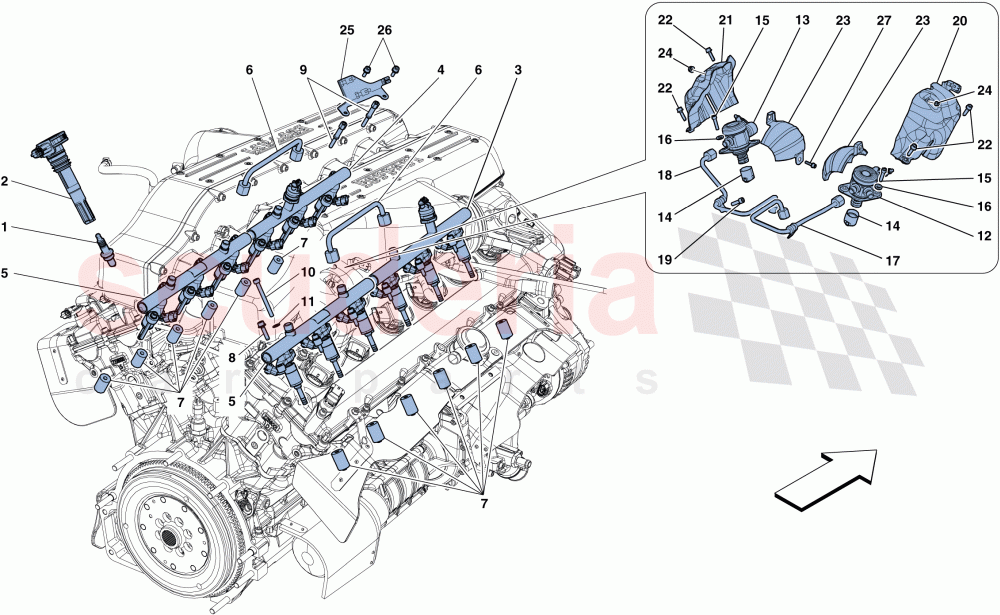

INJECTION - IGNITION SYSTEM of Ferrari Ferrari FF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 297423
SPARK PLUG
NGK
IN STOCK 		$31.96 12
3 260166
COMPL. FRONT RH FUEL PIPE
Also order pipe ref. 6; Applicable for USA, CDN, USA LIGHT 		$2,365.65 1
3 260166
COMPL. FRONT RH FUEL PIPE
Also order pipe ref. 6; Not for USA, CDN, USA LIGHT; Applicable up to engine No. 242908 		$2,365.65 1
3 311300
COMPL. FRONT RH FUEL PIPE
Also order pipe ref. 6; Not for USA, CDN, USA LIGHT; Applicable from engine No. 242909 		$2,058.83 1
4 311301
COMPL. FRONT LH FUEL PIPE
Also order pipe ref. 6; Not for USA, CDN, USA LIGHT; Applicable from engine No. 242909 		$2,058.83 1
4 260167
COMPL. FRONT LH FUEL PIPE
Also order pipe ref. 6; Applicable for USA, CDN, USA LIGHT 		$2,365.65 1
4 260167
COMPL. FRONT LH FUEL PIPE
Also order pipe ref. 6; Not for USA, CDN, USA LIGHT; Applicable up to engine No. 242908 		$2,365.65 1
5 311302
COMPL. REAR FUEL PIPE
Also order pipe ref. 6 and pipe ref. 17 for RH cylinder bank or ref. 18 for LH cylinder bank; Not for USA, CDN, USA LIGHT; Applicable from engine No. 242909 		$1,660.46 2
5 255639
COMPL. REAR FUEL PIPE
Also order pipe ref. 6 and pipe ref. 17 for RH cylinder bank or ref. 18 for LH cylinder bank; Not for USA, CDN, USA LIGHT; Applicable up to engine No. 242908 		$1,865.44 2
5 255639
COMPL. REAR FUEL PIPE
Also order pipe ref. 6 and pipe ref. 17 for RH cylinder bank or ref. 18 for LH cylinder bank; Applicable for USA, CDN, USA LIGHT 		$1,865.44 2
6 247918
FUEL PIPE CONNECTING FRONT AND REAR RAILS 		$244.93 2
7 255724
SHIM 		$7.65 12
8 231620
SCREW
M6 X 25
IN STOCK 		$0.31 (11.4% off) 10
9 260965
STUD BOLT
M6 X 23 		$5.15 2
10 14303834
SCREW
M6 X 60
IN STOCK 		$1.47 12
11 11197774
WASHER
IN STOCK 		$0.06 (80% off) 12
12 259334
RH FUEL PUMP 		$498.49 1
13 259335
LH FUEL PUMP 		$577.54 1
14 212797
CUP 		$63.16 2
15 14305428
SCREW 		$0.39 4
16 12639724
WASHER
IN STOCK 		$0.05 (90% off) 4
17 327854
RH FUEL PIPE 		$270.71 1
18 254516
LH FUEL PIPE 		$270.71 1
19 231619
SCREW
M6 X 20; No longer supplied; Replaced by 231616
IN STOCK 		$0.29 2
19 248334
SCREW
M6 X 14
IN STOCK 		$0.59 2
22 231619
SCREW
M6 X 22
IN STOCK 		$0.29 4
24 14059290
FLANGED NUT M6
ARRIVING SOON 		$1.33 2
25 284961
MOUNTING BRACKET 		$91.51 1
26 248334
SCREW
M6 X 14; No longer supplied; Replaced by 231618
IN STOCK 		$0.59 2
26 231619
SCREW
M6 X 20
IN STOCK 		$0.29 2
27 248334
SCREW
M6 X 16
IN STOCK 		$0.59 2
