Name: ALTERNATOR - STARTER MOTOR
Rating: 5.0 (1 reviews)

ALTERNATOR - STARTER MOTOR of Ferrari Ferrari FF

View All

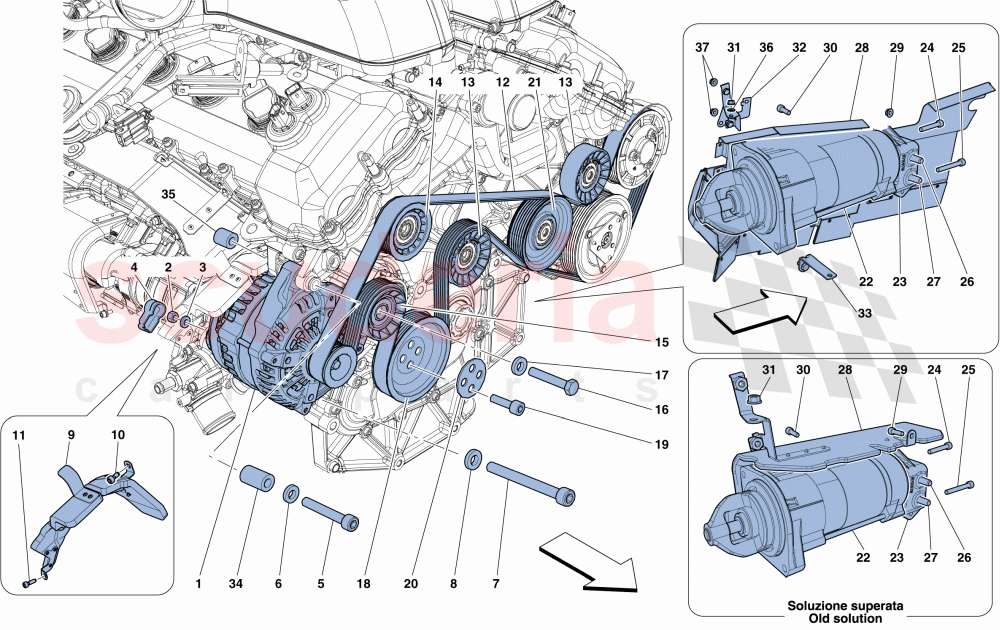

Ferrari FF - ALTERNATOR - STARTER MOTOR

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER D.8.40-15 X 0.8	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	154803	PROTECTIVE CAP	$4.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14308224	SCREW	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	10569474	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14308724	SCREW	$3.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10569474	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	243857	ALTERNATOR BELT	$64.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	272554	SMOOTH PULLEY	$215.54	To Order

Photo	Part No	Description	Price (each)	Stock
	252513	6-GROOVE PULLEY WITH SCREW	$164.82	To Order

Photo	Part No	Description	Price (each)	Stock
	271881	BELT TENSIONER	$157.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	268567	SCREW	$4.82	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	260136	ANCILLARY DRIVE BELT	$125.51	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	$0.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	258597	PLATE	$7.52	To Order

Photo	Part No	Description	Price (each)	Stock
	257942	6-GROOVE PULLEY WITH SCREW	$209.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	272494	STARTER MOTOR	$649.68	To Order

Photo	Part No	Description	Price (each)	Stock
	272479	REAR STARTER MOTOR BRACKET	$101.43	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	$0.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	255494	SCREW	$8.29	To Order

Photo	Part No	Description	Price (each)	Stock
	84317700	SCREW 8 X 30	$21.84	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231629	SCREW	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	272830	HEAT SHIELD	$253.57	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	$6.35	To Order

Photo	Part No	Description	Price (each)	Stock
	290097	BRACKET	$36.76	To Order

Photo	Part No	Description	Price (each)	Stock
	290098	BRACKET	$12.66	To Order

Photo	Part No	Description	Price (each)	Stock
	258137	BUSH	$4.82	To Order

Photo	Part No	Description	Price (each)	Stock
	258138	THREADED BUSHING	$10.14	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
2	16102314	NUT	16102314 NUT	$0.06 MSRP: ~~1.29~~ (95.3% off)	1
3	12601374	WASHER D.8.40-15 X 0.8 IN STOCK	12601374 WASHER D.8.40-15 X 0.8 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	1
4	154803	PROTECTIVE CAP IN STOCK	154803 PROTECTIVE CAP IN STOCK	$4.71	1
5	14308224	SCREW	14308224 SCREW M10 X 1.25 X 65	$1.07	1
6	10569474	WASHER IN STOCK	10569474 WASHER IN STOCK	$0.06	1
7	14308724	SCREW IN STOCK	14308724 SCREW M10 X 1.25 X 100 IN STOCK	$3.47	1
8	10569474	WASHER IN STOCK	10569474 WASHER IN STOCK	$0.06	1
10	248334	SCREW IN STOCK	248334 SCREW M6 X 12 IN STOCK	$0.58	1
11	231619	SCREW IN STOCK	231619 SCREW M6 X 18 IN STOCK	$0.29	1
12	243857	ALTERNATOR BELT IN STOCK	243857 ALTERNATOR BELT IN STOCK	$64.97 MSRP: ~~169.46~~ (61.7% off)	1
13	272554	SMOOTH PULLEY	272554 SMOOTH PULLEY	$215.54	2
14	252513	6-GROOVE PULLEY WITH SCREW	252513 6-GROOVE PULLEY WITH SCREW	$164.82 MSRP: ~~221.18~~ (25.5% off)	1
15	271881	BELT TENSIONER IN STOCK	271881 BELT TENSIONER IN STOCK	$157.21	1
16	268567	SCREW IN STOCK	268567 SCREW M8 X 60 IN STOCK	$4.82	1
17	11193874	WASHER IN STOCK	11193874 WASHER IN STOCK	$0.06	1
18	260136	ANCILLARY DRIVE BELT	260136 ANCILLARY DRIVE BELT	$125.51	1
19	14306424	SCREW IN STOCK	14306424 SCREW IN STOCK	$0.23 MSRP: ~~0.41~~ (43.9% off)	1
20	258597	PLATE	258597 PLATE	$7.52	1
21	257942	6-GROOVE PULLEY WITH SCREW IN STOCK	257942 6-GROOVE PULLEY WITH SCREW IN STOCK	$209.62	1
22	272494	STARTER MOTOR	272494 STARTER MOTOR	$649.68	1
23	272479	REAR STARTER MOTOR BRACKET	272479 REAR STARTER MOTOR BRACKET	$101.43	1
24	231624	SCREW IN STOCK	231624 SCREW M6 X 45 IN STOCK	$0.41	1
25	255494	SCREW	255494 SCREW M6 X 55	$8.29	1
26	84317700	SCREW 8 X 30 IN STOCK	84317700 SCREW 8 X 30 M8 X 25 IN STOCK	$21.84	1
27	231629	SCREW IN STOCK	231629 SCREW M8 X 30 IN STOCK	$0.61 MSRP: ~~0.95~~ (35.8% off)	1
28	272830	HEAT SHIELD	272830 HEAT SHIELD Applicable up to engine No. 185957	$253.57	1
29	248334	SCREW IN STOCK	248334 SCREW M6 X 14; Applicable up to engine No. 185957 IN STOCK	$0.58	1
29	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 Applicable from engine No. 185958 IN STOCK	$1.32	1
30	248334	SCREW IN STOCK	248334 SCREW M6 X 12 IN STOCK	$0.58	1
31	15896470	NUT	15896470 NUT	$6.35	1
32	290097	BRACKET	290097 BRACKET Applicable from engine No. 185958	$36.76	1
33	290098	BRACKET	290098 BRACKET Applicable from engine No. 185958	$12.66	1
34	258137	BUSH	258137 BUSH	$4.82	2
35	258138	THREADED BUSHING	258138 THREADED BUSHING	$10.14	2
36	12637824	WASHER IN STOCK	12637824 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	1
37	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	2
