Ferrari FF - CRANKSHAFT - CONNECTING RODS AND PISTONS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
275154 CRANKSHAFT $4,482.66 To Order
278269 CRANKSHAFT $4,907.08 To Order
Photo Part No Description Price (each) Stock
244417 CONNECTING ROD HALF-BEARING $24.48 To Order
261720 CONNECTING ROD HALF-BEARING $18.03 To Order
244418 CONNECTING ROD HALF-BEARING $23.19 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
270223 INTERNAL VISCOUS DAMPER $550.73 To Order
Photo Part No Description Price (each) Stock
13026774 SCREW $1.03 To Order
Photo Part No Description Price (each) Stock
286834 UPPER HALF-BEARING $21.91 IN STOCK
286833 UPPER HALF-BEARING $23.19 IN STOCK
271030 UPPER HALF-BEARING $34.79 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
271025 LOWER HALF-BEARING $34.79 To Order
286838 LOWER HALF-BEARING $21.37 To Order
286837 LOWER HALF-BEARING $22.89 IN STOCK
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
261727 SHIM RING $9.92 To Order
222874 SHIM RING $30.93 To Order
Photo Part No Description Price (each) Stock
281741 ENGINE FLYWHEEL $2,686.66 To Order
Photo Part No Description Price (each) Stock
229907 SCREW $8.08 To Order
Photo Part No Description Price (each) Stock
266474 COMPL. CONNECTING ROD AND CAP $744.75 To Order
Photo Part No Description Price (each) Stock
257150 CONNECTING ROD FASTENER SCREW $79.93 To Order
Photo Part No Description Price (each) Stock
224608 ALIGNMENT PIN $3.47 To Order
Photo Part No Description Price (each) Stock
234861 BUSHING $6.19 To Order
Photo Part No Description Price (each) Stock
265025 LH CYLINDER BANK PISTON COMPLETE WITH RINGS $502.76 To Order
265024 RH CYLINDER BANK PISTON COMPLETE WITH RINGS $502.76 To Order
Photo Part No Description Price (each) Stock
270468 COMPL. PISTON RING SET $87.64 To Order
Photo Part No Description Price (each) Stock
255232 GUDGEON PIN $67.62 To Order
Photo Part No Description Price (each) Stock
255234 STOP RING $19.56 To Order
Photo Part No Description Price (each) Stock
282966 GASKET $4.04 IN STOCK
Photo Part No Description Price (each) Stock
103877 BEARING $31.67 IN STOCK
Photo Part No Description Price (each) Stock
176396 THREADED PLUG $5.43 To Order
View All

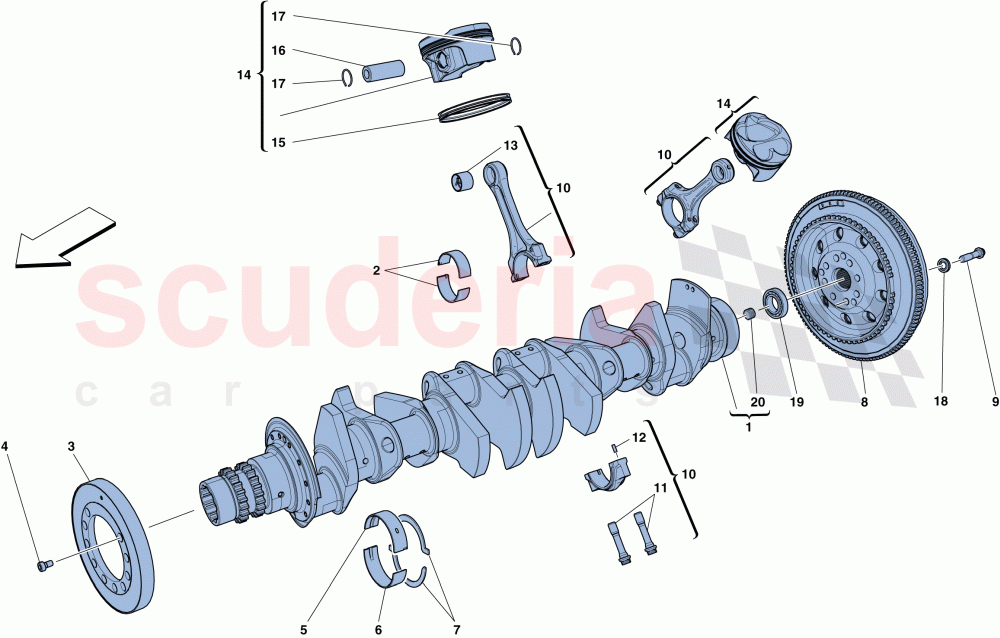

CRANKSHAFT - CONNECTING RODS AND PISTONS of Ferrari Ferrari FF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 275154
CRANKSHAFT
Applicable up to engine No. 175376 		$4,482.66 1
1 278269
CRANKSHAFT
Applicable from engine No. 175377 		$4,907.08 1
2 244417
CONNECTING ROD HALF-BEARING
Blue; Not for EU GS, UK 		$24.48 24
2 261720
CONNECTING ROD HALF-BEARING
Black; Lead free; Applicable for EU GS, UK 		$18.03 24
2 244418
CONNECTING ROD HALF-BEARING
Black; Not for EU GS, UK 		$23.19 24
2 261718
CONNECTING ROD HALF-BEARING
Red; Lead free; Applicable for EU GS, UK
ARRIVING SOON 		$18.03 24
2 244416
CONNECTING ROD HALF-BEARING
Red; Not for EU GS, UK 		$23.19 24
2 261719
CONNECTING ROD HALF-BEARING
Blue; Lead free; Applicable for EU GS, UK 		$18.03 24
3 270223
INTERNAL VISCOUS DAMPER
Applicable up to engine No. 175376 		$550.73 1
4 13026774
SCREW
M6 X 10; Applicable up to engine No. 175376 		$1.03 10
5 286834
UPPER HALF-BEARING
Green; Not for EU GS, UK
IN STOCK 		$21.91 7
5 286833
UPPER HALF-BEARING
Yellow; Not for EU GS, UK
IN STOCK 		$23.19 7
5 271030
UPPER HALF-BEARING
Green; Lead free; Applicable for EU GS, UK 		$34.79 7
5 271029
UPPER HALF-BEARING
Yellow; Lead free; Applicable for EU GS, UK 		$36.08 7
5 271028
UPPER HALF-BEARING
Blue; Lead free; Applicable for EU GS, UK 		$32.21 7
6 271025
LOWER HALF-BEARING
Green; Lead free; Applicable for EU GS, UK 		$34.79 7
6 286838
LOWER HALF-BEARING
Green; Not for EU GS, UK 		$21.37 7
6 286837
LOWER HALF-BEARING
Yellow; Not for EU GS, UK
IN STOCK 		$22.89 7
6 200194
Lower Main Half Bearing Blue
Blue; Not for EU GS, UK
IN STOCK 		$29.00 7
6 271024
LOWER HALF-BEARING
Yellow; Lead free; Applicable for EU GS, UK 		$36.08 7
6 271023
LOWER HALF-BEARING
Blue; Lead free; Applicable for EU GS, UK 		$32.21 7
7 261727
SHIM RING
Lead free; Applicable for EU GS, UK 		$9.92 4
7 222874
SHIM RING
Not for EU GS, UK 		$30.93 4
8 281741
ENGINE FLYWHEEL 		$2,686.66 1
9 229907
SCREW
M10 X 1.25 X 41.5 		$8.08 8
10 266474
COMPL. CONNECTING ROD AND CAP 		$744.75 (49.5% off) 12
11 257150
CONNECTING ROD FASTENER SCREW 		$79.93 24
12 224608
ALIGNMENT PIN 		$3.47 24
13 234861
BUSHING 		$6.19 12
14 265025
LH CYLINDER BANK PISTON COMPLETE WITH RINGS 		$502.76 6
14 265024
RH CYLINDER BANK PISTON COMPLETE WITH RINGS 		$502.76 (29.5% off) 6
15 270468
COMPL. PISTON RING SET 		$87.64 12
16 255232
GUDGEON PIN
Applicable until depletion 		$67.62 12
17 255234
STOP RING
Applicable until depletion 		$19.56 24
18 282966
GASKET
IN STOCK 		$4.04 2
19 103877
BEARING
IN STOCK 		$31.67 1
20 176396
THREADED PLUG 		$5.43 1
