Name: STRUCTURES AND ELEMENTS, REAR OF VEHICLE
Rating: 5.0 (1 reviews)

STRUCTURES AND ELEMENTS, REAR OF VEHICLE of Ferrari Ferrari F12 Berlinetta

View All

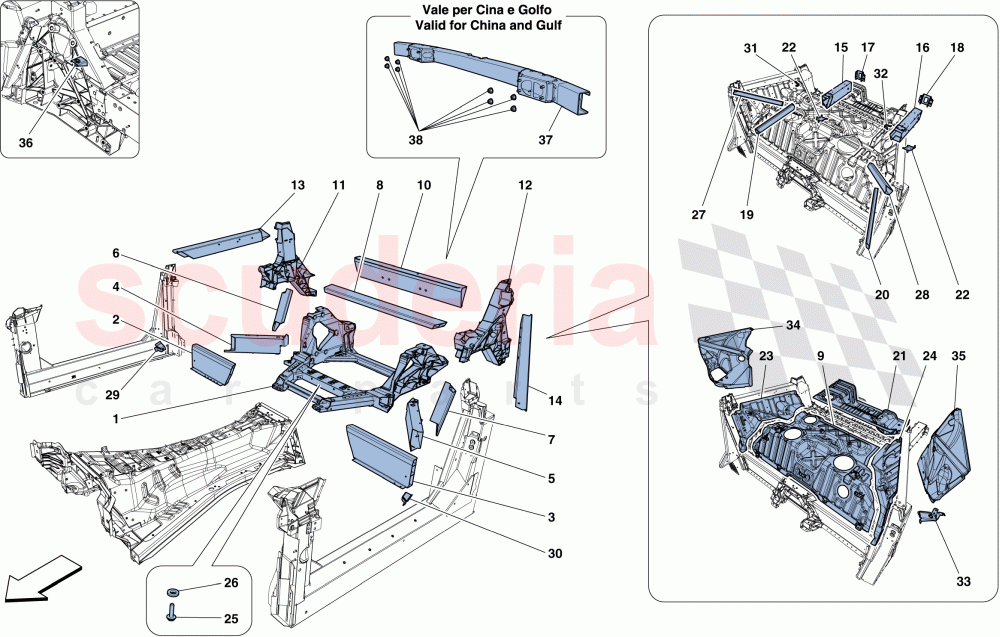

Ferrari F12 Berlinetta - STRUCTURES AND ELEMENTS, REAR OF VEHICLE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	274204	RH LOWER REAR FLOOR CROSS-PIECE	$858.74	To Order

Photo	Part No	Description	Price (each)	Stock
	274205	LH LOWER REAR FLOOR CROSS-PIECE	$858.74	To Order

Photo	Part No	Description	Price (each)	Stock
	281779	LOWER RH REAR DIAGONAL BRACE	$994.42	To Order

Photo	Part No	Description	Price (each)	Stock
	281776	LOWER LH REAR DIAGONAL BRACE	$1,161.82	To Order

Photo	Part No	Description	Price (each)	Stock
	276702	COMPL. RH REAR SEAT BASE UPRIGHT	$416.73	To Order

Photo	Part No	Description	Price (each)	Stock
	276701	COMPL. LH REAR SEAT BASE UPRIGHT	$416.73	To Order

Photo	Part No	Description	Price (each)	Stock
	279618	REAR CROSS-PIECE OF FRONT STEP	$313.23	To Order

Photo	Part No	Description	Price (each)	Stock
	795781	REAR SHELF AND TANK COVER	$1,909.44	To Order

Photo	Part No	Description	Price (each)	Stock
	280180	COMPL. REAR CROSSPIECE OF REAR STEP	$644.05	To Order

Photo	Part No	Description	Price (each)	Stock
	281690	RH UPPER REAR CASTING	$3,267.32	To Order

Photo	Part No	Description	Price (each)	Stock
	281689	LH UPPER REAR CASTING	$3,267.32	To Order

Photo	Part No	Description	Price (each)	Stock
	276657	RH UPPER REAR DIAGONAL BRACE	$319.49	To Order

Photo	Part No	Description	Price (each)	Stock
	276656	LH UPPER REAR DIAGONAL BRACE	$319.49	To Order

Photo	Part No	Description	Price (each)	Stock
	273692	REAR RH STRUT	$568.28	To Order

Photo	Part No	Description	Price (each)	Stock
	273662	REAR LH STRUT	$568.28	To Order

Photo	Part No	Description	Price (each)	Stock
	281819	RH REAR STRUT FLANGE	$126.27	To Order

Photo	Part No	Description	Price (each)	Stock
	281818	LH REAR SPAR FLANGE	$95.58	To Order

Photo	Part No	Description	Price (each)	Stock
	281650	RH CENTRE REAR DIAGONAL BRACE	$281.92	To Order

Photo	Part No	Description	Price (each)	Stock
	281649	LH CENTRE REAR DIAGONAL BRACE	$353.59	To Order

Photo	Part No	Description	Price (each)	Stock
	279872	SERVICES TUB	$1,406.82	To Order

Photo	Part No	Description	Price (each)	Stock
	265936	REAR TORSION BAR MOUNTING BRACKET	$25.24	To Order

Photo	Part No	Description	Price (each)	Stock
	286499	RH LATERAL REAR BENCH PANEL	$438.54	To Order

Photo	Part No	Description	Price (each)	Stock
	286498	LH LATERAL REAR BENCH PANEL	$438.54	To Order

Photo	Part No	Description	Price (each)	Stock
	11343821	SCREW	$1.01	IN STOCK
	16288724	SCREW	$11.79	To Order
	239868	SCREW	$14.32	To Order

Photo	Part No	Description	Price (each)	Stock
	128944	WASHER	$2.73	To Order

Photo	Part No	Description	Price (each)	Stock
	281654	RH UPPER STAY	$454.62	To Order

Photo	Part No	Description	Price (each)	Stock
	281653	LH UPPER STAY	$454.62	To Order

Photo	Part No	Description	Price (each)	Stock
	286410	INNER RH SILL FASTENER BRACKET	$64.39	To Order

Photo	Part No	Description	Price (each)	Stock
	286409	INNER LH SILL FASTENER BRACKET	$64.39	To Order

Photo	Part No	Description	Price (each)	Stock
	287666	RH REAR MOUNTING BRACKET	$126.27	To Order

Photo	Part No	Description	Price (each)	Stock
	287665	LH REAR MOUNTING BRACKET	$126.27	To Order

Photo	Part No	Description	Price (each)	Stock
	285864	LH FLEXIBLE REAR BRAKE MOUNTING BRACKET	$126.27	To Order
	285866	RH FLEXIBLE REAR BRAKE MOUNTING BRACKET	$23.97	To Order

Photo	Part No	Description	Price (each)	Stock
	285981	RH WHEEL BAY COVER	$1,795.89	To Order

Photo	Part No	Description	Price (each)	Stock
	285980	LH WHEEL BAY COVER	$1,795.89	To Order

Photo	Part No	Description	Price (each)	Stock
	284527	COMPL. REAR ACCELEROMETER FASTENER BRACKET	$10.34	To Order

Photo	Part No	Description	Price (each)	Stock
	85151100	CRASH-BOX CROSS MEMBER	$1,395.44	To Order
	85345700	CRASH-BOX CROSS MEMBER	$1,370.19	To Order

Photo	Part No	Description	Price (each)	Stock
	13046214	NUT	$0.34	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
2	274204	RH LOWER REAR FLOOR CROSS-PIECE	274204 RH LOWER REAR FLOOR CROSS-PIECE	$858.74	1
3	274205	LH LOWER REAR FLOOR CROSS-PIECE	274205 LH LOWER REAR FLOOR CROSS-PIECE	$858.74	1
4	281779	LOWER RH REAR DIAGONAL BRACE	281779 LOWER RH REAR DIAGONAL BRACE	$994.42	1
5	281776	LOWER LH REAR DIAGONAL BRACE	281776 LOWER LH REAR DIAGONAL BRACE	$1,161.82	1
6	276702	COMPL. RH REAR SEAT BASE UPRIGHT	276702 COMPL. RH REAR SEAT BASE UPRIGHT	$416.73	1
7	276701	COMPL. LH REAR SEAT BASE UPRIGHT	276701 COMPL. LH REAR SEAT BASE UPRIGHT	$416.73	1
8	279618	REAR CROSS-PIECE OF FRONT STEP	279618 REAR CROSS-PIECE OF FRONT STEP	$313.23	1
9	795781	REAR SHELF AND TANK COVER	795781 REAR SHELF AND TANK COVER	$1,909.44	1
10	280180	COMPL. REAR CROSSPIECE OF REAR STEP	280180 COMPL. REAR CROSSPIECE OF REAR STEP	$644.05	1
11	281690	RH UPPER REAR CASTING	281690 RH UPPER REAR CASTING	$3,267.32	1
12	281689	LH UPPER REAR CASTING	281689 LH UPPER REAR CASTING	$3,267.32	1
13	276657	RH UPPER REAR DIAGONAL BRACE	276657 RH UPPER REAR DIAGONAL BRACE	$319.49	1
14	276656	LH UPPER REAR DIAGONAL BRACE	276656 LH UPPER REAR DIAGONAL BRACE	$319.49	1
15	273692	REAR RH STRUT	273692 REAR RH STRUT	$568.28	1
16	273662	REAR LH STRUT	273662 REAR LH STRUT	$568.28 MSRP: ~~820.13~~ (30.7% off)	1
17	281819	RH REAR STRUT FLANGE	281819 RH REAR STRUT FLANGE	$126.27	1
18	281818	LH REAR SPAR FLANGE	281818 LH REAR SPAR FLANGE	$95.58	1
19	281650	RH CENTRE REAR DIAGONAL BRACE	281650 RH CENTRE REAR DIAGONAL BRACE	$281.92	1
20	281649	LH CENTRE REAR DIAGONAL BRACE	281649 LH CENTRE REAR DIAGONAL BRACE	$353.59	1
21	279872	SERVICES TUB	279872 SERVICES TUB	$1,406.82	1
22	265936	REAR TORSION BAR MOUNTING BRACKET	265936 REAR TORSION BAR MOUNTING BRACKET	$25.24	2
23	286499	RH LATERAL REAR BENCH PANEL	286499 RH LATERAL REAR BENCH PANEL	$438.54	1
24	286498	LH LATERAL REAR BENCH PANEL	286498 LH LATERAL REAR BENCH PANEL	$438.54	1
25	11343821	SCREW IN STOCK	11343821 SCREW M10 X 1.25 X 50; Fastening diagonal gearbox mount to tunnel casting IN STOCK	$1.01	2
25	16288724	SCREW	16288724 SCREW M10 X40; Fastening upper rear suspension mount casting	$11.79	2
25	239868	SCREW	239868 SCREW M12 X 1.75 X 45; Fastening lower rear diagonal brace	$14.32	2
26	128944	WASHER	128944 WASHER Fastening diagonal gearbox mount to tunnel casting	$2.73	2
27	281654	RH UPPER STAY	281654 RH UPPER STAY	$454.62	1
28	281653	LH UPPER STAY	281653 LH UPPER STAY	$454.62	1
29	286410	INNER RH SILL FASTENER BRACKET	286410 INNER RH SILL FASTENER BRACKET	$64.39	1
30	286409	INNER LH SILL FASTENER BRACKET	286409 INNER LH SILL FASTENER BRACKET	$64.39	1
31	287666	RH REAR MOUNTING BRACKET	287666 RH REAR MOUNTING BRACKET	$126.27	1
32	287665	LH REAR MOUNTING BRACKET	287665 LH REAR MOUNTING BRACKET	$126.27	1
33	285864	LH FLEXIBLE REAR BRAKE MOUNTING BRACKET	285864 LH FLEXIBLE REAR BRAKE MOUNTING BRACKET	$126.27	1
33	285866	RH FLEXIBLE REAR BRAKE MOUNTING BRACKET	285866 RH FLEXIBLE REAR BRAKE MOUNTING BRACKET	$23.97	1
34	285981	RH WHEEL BAY COVER	285981 RH WHEEL BAY COVER	$1,795.89	1
35	285980	LH WHEEL BAY COVER	285980 LH WHEEL BAY COVER	$1,795.89	1
36	284527	COMPL. REAR ACCELEROMETER FASTENER BRACKET	284527 COMPL. REAR ACCELEROMETER FASTENER BRACKET	$10.34	1
37	85151100	CRASH-BOX CROSS MEMBER	85151100 CRASH-BOX CROSS MEMBER Applicable for CINA, GOLFO; Applicable up to Ass. No. 108752	$1,395.44	1
37	85345700	CRASH-BOX CROSS MEMBER	85345700 CRASH-BOX CROSS MEMBER Applicable for CINA, GOLFO; Applicable from Ass. No. 108753	$1,370.19	1
38	13046214	NUT IN STOCK	13046214 NUT Applicable for CINA, GOLFO IN STOCK	$0.34	8

Structures And Elements, Rear Of Vehicle

Ferrari F12 Berlinetta

Ferrari F12 Berlinetta - STRUCTURES AND ELEMENTS, REAR OF VEHICLE
