Ferrari F12 Berlinetta - STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
293320 COMPL. TUNNEL $18,176.91 To Order
281535 COMPL. TUNNEL $16,292.18 To Order
Photo Part No Description Price (each) Stock
292698 RH SILL BEAM PILLAR SECTION $8,782.45 To Order
281685 RH SILL BEAM PILLAR SECTION $8,782.45 To Order
Photo Part No Description Price (each) Stock
281686 LH SILL BEAM PILLAR SECTION $8,782.45 To Order
Photo Part No Description Price (each) Stock
281612 INTERNAL RH FRONT TRUSS $391.16 To Order
Photo Part No Description Price (each) Stock
281611 INTERNAL LH FRONT TRUSS $391.16 To Order
Photo Part No Description Price (each) Stock
278429 EXTERNAL RH PILLAR TRUSS $258.21 To Order
Photo Part No Description Price (each) Stock
278428 EXTERNAL LH PILLAR TRUSS $258.21 To Order
Photo Part No Description Price (each) Stock
273274 FRONT FIREWALL $908.52 To Order
289169 FRONT FIREWALL $921.14 To Order
Photo Part No Description Price (each) Stock
273126 WINDSCREEN VALENCE PANEL $1,564.92 To Order
292682 WINDSCREEN VALENCE PANEL $958.98 To Order
Photo Part No Description Price (each) Stock
273972 RH SEMI-FLOOR $914.82 To Order
Photo Part No Description Price (each) Stock
273971 LH SEMI-FLOOR $914.82 To Order
Photo Part No Description Price (each) Stock
273922 INNER FRONT BRACKET, RH SEAT $643.53 To Order
Photo Part No Description Price (each) Stock
273921 INNER FRONT BRACKET, LH SEAT $643.53 To Order
Photo Part No Description Price (each) Stock
294722 INNER REAR BRACKET, RH SEAT $504.73 To Order
273924 INNER RH REAR SEAT BRACKET $504.73 To Order
Photo Part No Description Price (each) Stock
294720 INNER REAR BRACKET, LH SEAT $504.73 To Order
273923 INNER LH REAR SEAT BRACKET $504.73 To Order
Photo Part No Description Price (each) Stock
273925 OUTER RH FRONT SEAT BRACKET $504.73 To Order
Photo Part No Description Price (each) Stock
273926 OUTER LH FRONT SEAT BRACKET $504.73 To Order
Photo Part No Description Price (each) Stock
281637 RH REAR SEAT OUTER EXTRUSION $580.44 To Order
Photo Part No Description Price (each) Stock
281636 LH REAR SEAT OUTER EXTRUSION $580.44 To Order
Photo Part No Description Price (each) Stock
278431 INTERNAL RH PILLAR TRUSS $392.91 To Order
Photo Part No Description Price (each) Stock
278430 INTERNAL LH PILLAR TRUSS $392.91 To Order
Photo Part No Description Price (each) Stock
284462 RH TPMS TRIGGER MOUNTING BRACKET $252.35 To Order
Photo Part No Description Price (each) Stock
284461 LH TPMS TRIGGER MOUNTING BRACKET $252.35 To Order
Photo Part No Description Price (each) Stock
85213100 RH UPPER FRONT CONNECTOR ELEMENT $12.62 To Order
85213200 LH UPPER FRONT CONNECTOR ELEMENT $12.62 To Order
84556700 UPPER FRONT CONNECTOR ELEMENT $201.87 To Order
Photo Part No Description Price (each) Stock
270773 FUEL PIPE FASTENER BRACKET $201.87 To Order
View All

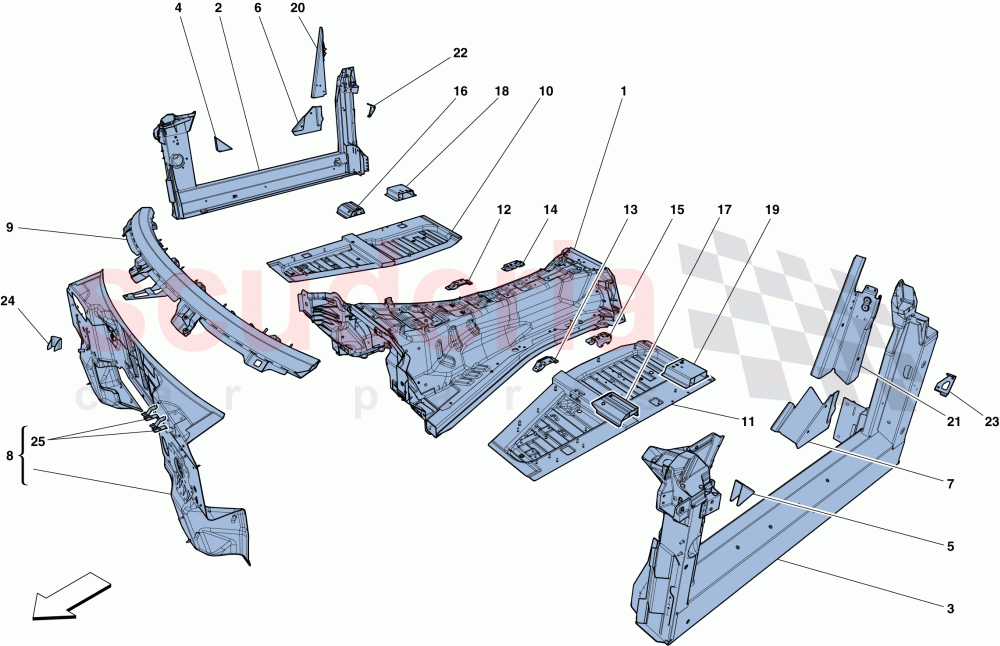

STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE of Ferrari Ferrari F12 Berlinetta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 293320
COMPL. TUNNEL
; Applicable for GD 		$18,176.91 1
1 281535
COMPL. TUNNEL
; Not for GD 		$16,292.18 1
2 292698
RH SILL BEAM PILLAR SECTION
; Applicable for GD 		$8,782.45 1
2 281685
RH SILL BEAM PILLAR SECTION
; Not for GD 		$8,782.45 1
3 281686
LH SILL BEAM PILLAR SECTION 		$8,782.45 1
4 281612
INTERNAL RH FRONT TRUSS 		$391.16 1
5 281611
INTERNAL LH FRONT TRUSS 		$391.16 1
6 278429
EXTERNAL RH PILLAR TRUSS 		$258.21 1
7 278428
EXTERNAL LH PILLAR TRUSS 		$258.21 1
8 273274
FRONT FIREWALL
Not for GD 		$908.52 1
8 289169
FRONT FIREWALL
Applicable for GD 		$921.14 1
9 273126
WINDSCREEN VALENCE PANEL
Not for GD 		$1,564.92 1
9 292682
WINDSCREEN VALENCE PANEL
Applicable for GD 		$958.98 1
10 273972
RH SEMI-FLOOR 		$914.82 1
11 273971
LH SEMI-FLOOR 		$914.82 1
12 273922
INNER FRONT BRACKET, RH SEAT 		$643.53 1
13 273921
INNER FRONT BRACKET, LH SEAT 		$643.53 1
14 294722
INNER REAR BRACKET, RH SEAT
Applicable from Ass. No. 109549 		$504.73 1
14 273924
INNER RH REAR SEAT BRACKET
Applicable up to Ass. No. 109548 		$504.73 1
15 294720
INNER REAR BRACKET, LH SEAT
Applicable from Ass. No. 109549 		$504.73 1
15 273923
INNER LH REAR SEAT BRACKET
Applicable up to Ass. No. 109548 		$504.73 1
16 273925
OUTER RH FRONT SEAT BRACKET 		$504.73 1
17 273926
OUTER LH FRONT SEAT BRACKET 		$504.73 1
18 281637
RH REAR SEAT OUTER EXTRUSION 		$580.44 1
19 281636
LH REAR SEAT OUTER EXTRUSION 		$580.44 1
20 278431
INTERNAL RH PILLAR TRUSS 		$392.91 1
21 278430
INTERNAL LH PILLAR TRUSS 		$392.91 1
22 284462
RH TPMS TRIGGER MOUNTING BRACKET 		$252.35 1
23 284461
LH TPMS TRIGGER MOUNTING BRACKET 		$252.35 1
24 85213100
RH UPPER FRONT CONNECTOR ELEMENT 		$12.62 1
24 85213200
LH UPPER FRONT CONNECTOR ELEMENT 		$12.62 1
24 84556700
UPPER FRONT CONNECTOR ELEMENT
Replaced by 85213100 and 85213200; No longer supplied 		$201.87 2
25 270773
FUEL PIPE FASTENER BRACKET
Not for GD 		$201.87 2
