Ferrari F12 Berlinetta - CHASSIS COMPLETION

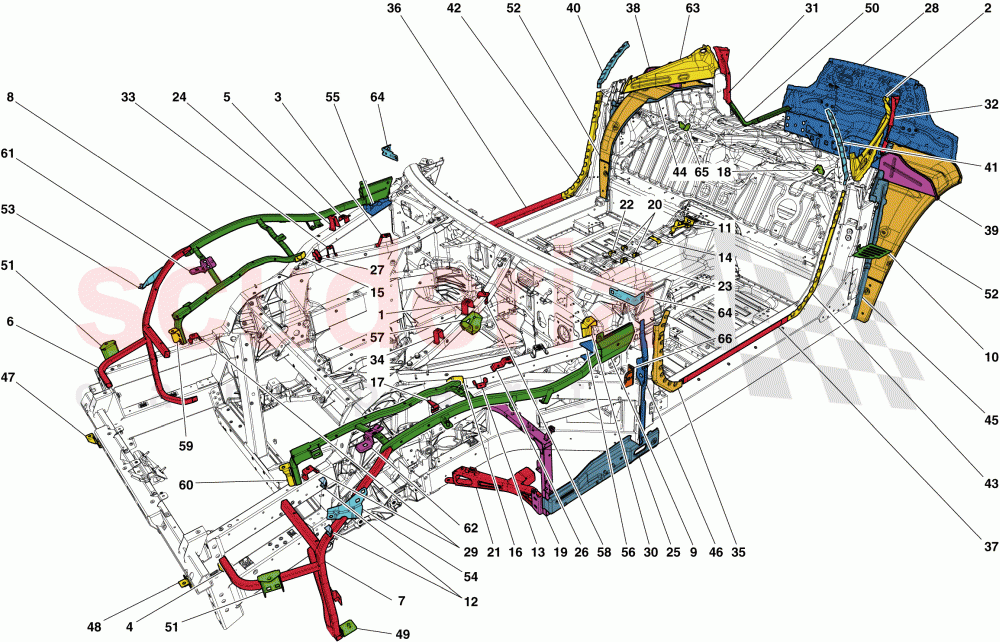

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	278365	INTERNAL LH UNDERWINDSCREEN TRAY BRACKET	$190.28	To Order

Photo	Part No	Description	Price (each)	Stock
	84643700	LH LATERAL SUBSTRUCTURE	$201.11	To Order

Photo	Part No	Description	Price (each)	Stock
	278395	INTERNAL RH UNDERWINDSCREEN TRAY BRACKET	$190.28	To Order

Photo	Part No	Description	Price (each)	Stock
	83342500	INTERNAL FRONT CONNECTOR ELEMENT	$10.67	To Order

Photo	Part No	Description	Price (each)	Stock
	278396	EXTERNAL RH UNDERWINDSCREEN TRAY BRACKET	$251.39	To Order

Photo	Part No	Description	Price (each)	Stock
	84232600	FRONT TRELLIS FOR RH HEADLIGHT	$1,125.58	To Order

Photo	Part No	Description	Price (each)	Stock
	84232700	FRONT TRELLIS FOR LH HEADLIGHT	$1,125.58	To Order

Photo	Part No	Description	Price (each)	Stock
	84233000	FRONT RH FENDER TRELLIS	$1,422.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	84233100	FRONT LH FENDER TRELLIS	$1,982.35	To Order

Photo	Part No	Description	Price (each)	Stock
	84573000	PARTITION ON WHEELHOUSE	$70.39	To Order

Photo	Part No	Description	Price (each)	Stock
	286416	REAR BRACKET FOR REAR FASTENER	$20.10	To Order

Photo	Part No	Description	Price (each)	Stock
	271344	COMPL. FRONT WHEEL BAY SHIELD FASTENER BRACKET	$11.17	To Order

Photo	Part No	Description	Price (each)	Stock
	279847	SECONDARY AIR SYSTEM PIPE FASTENER BRACKET	$125.69	To Order

Photo	Part No	Description	Price (each)	Stock
	286417	FRONT FASTENER BRACKET FOR FRONT UNIT	$12.55	To Order

Photo	Part No	Description	Price (each)	Stock
	83557100	MOUNTING FOR INTERNAL RH FRONT FENDER TUBE	$75.40	To Order

Photo	Part No	Description	Price (each)	Stock
	83557200	MOUNTING FOR INTERNAL LH FRONT FENDER TUBE	$75.40	To Order

Photo	Part No	Description	Price (each)	Stock
	271348	COMPL. RH REAR WHEEL BAY SHIELD MOUNTING BRACKET	$14.54	To Order
	271346	COMPL. LH REAR WHEEL BAY SHIELD MOUNTING BRACKET	$14.54	To Order

Photo	Part No	Description	Price (each)	Stock
	287670	LH HOOK FASTENER BRACKET	$125.69	To Order

Photo	Part No	Description	Price (each)	Stock
	85097800	LH TRELLIS PILLAR	$1,030.77	To Order
	85148200	LH TRELLIS PILLAR	$1,030.77	To Order
	84137000	RH TRELLIS PILLAR	$1,030.77	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	286418	REAR BRACKET FOR FRONT FASTENER	$5.02	To Order

Photo	Part No	Description	Price (each)	Stock
	83783200	COMPL. REAR TRELLIS CROSS BEAM FOR RH FRONT FENDER	$66.38	To Order
	83783400	LH REAR TRELLIS CROSS-MEMBER	$71.10	To Order

Photo	Part No	Description	Price (each)	Stock
	286420	RH FASTENER BRACKET FOR FRONT UNIT	$3.90	To Order

Photo	Part No	Description	Price (each)	Stock
	286419	LH FASTENER BRACKET FOR FRONT UNIT	$5.02	To Order

Photo	Part No	Description	Price (each)	Stock
	288328	REAR FASTENER BRACKET FOR RH ENGINE COVER	$125.69	To Order

Photo	Part No	Description	Price (each)	Stock
	83033900	LOWER FASTENER BEAM FOR RH FENDER	$213.69	To Order
	83034000	LOWER FASTENER BEAM FOR LH FENDER	$201.11	To Order

Photo	Part No	Description	Price (each)	Stock
	288606	LH ENGINE COVER BRACKET	$125.69	To Order

Photo	Part No	Description	Price (each)	Stock
	270772	BLOW-BY PIPE FASTENER BRACKET	$201.11	To Order

Photo	Part No	Description	Price (each)	Stock
	84977200	COMPL. BACK PANEL	$779.35	To Order
	84185600	COMPL. BACK PANEL	$2,007.50	To Order

Photo	Part No	Description	Price (each)	Stock
	284573	INJECTION CABLE FASTENER BRACKET	$201.11	To Order

Photo	Part No	Description	Price (each)	Stock
	84859500	RH WINDSCREEN WIPER FASTENER BRACKET	$51.53	To Order
	84979600	LH WINDSCREEN WIPER FASTENER BRACKET	$326.82	To Order

Photo	Part No	Description	Price (each)	Stock
	84220300	REAR ELEMENT OF RH LATERAL SUBSTRUCTURE	$32.94	To Order

Photo	Part No	Description	Price (each)	Stock
	85077600	REAR ELEMENT OF LH LATERAL SUBSTRUCTURE	$35.85	To Order

Photo	Part No	Description	Price (each)	Stock
	288334	FASTENER BRACKET FOR RH ENGINE COVER	$95.14	To Order

Photo	Part No	Description	Price (each)	Stock
	288652	FASTENER BRACKET FOR LH ENGINE COVER	$47.57	To Order

Photo	Part No	Description	Price (each)	Stock
	84280900	PROFILE LINKING RH PILLAR WITH FLANK	$35.00	To Order
	84281000	PROFILE LINKING LH PILLAR WITH FLANK	$40.20	To Order

Photo	Part No	Description	Price (each)	Stock
	83861400	LOWER RH DOOR SEAL PROFILE	$47.75	To Order

Photo	Part No	Description	Price (each)	Stock
	83861500	LOWER LH DOOR SEAL PROFILE	$47.75	To Order

Photo	Part No	Description	Price (each)	Stock
	84221100	RH EXTERNAL LATERAL SHIELD	$47.75	To Order

Photo	Part No	Description	Price (each)	Stock
	84221200	LH EXTERNAL LATERAL SHIELD	$47.75	To Order

Photo	Part No	Description	Price (each)	Stock
	84221900	UPPER RH PILLAR CONNECTOR PROFILE	$32.67	To Order

Photo	Part No	Description	Price (each)	Stock
	84222000	UPPER LH PILLAR CONNECTOR PROFILE	$32.67	To Order

Photo	Part No	Description	Price (each)	Stock
	84221700	PROFILE LINKING RH PILLAR WITH FLANK	$40.01	To Order

Photo	Part No	Description	Price (each)	Stock
	84221800	PROFILE LINKING LH PILLAR WITH FLANK	$40.01	To Order

Photo	Part No	Description	Price (each)	Stock
	84279800	RH FRONT FLANK SUBSTRUCTURE	$163.40	To Order

Photo	Part No	Description	Price (each)	Stock
	84279900	LH FRONT FLANK SUBSTRUCTURE	$163.40	To Order

Photo	Part No	Description	Price (each)	Stock
	84948700	FRONT FASTENER BRACKET FOR RH HEADLIGHT	$251.39	To Order

Photo	Part No	Description	Price (each)	Stock
	84948800	FRONT FASTENER BRACKET FOR LH HEADLIGHT	$251.39	To Order

Photo	Part No	Description	Price (each)	Stock
	84952500	LOWER MOUNTING BRACKET FOR FRONT BUMPER	$99.29	To Order

Photo	Part No	Description	Price (each)	Stock
	84634800	RH LOWER LATERAL PROFILE	$84.21	To Order
	84634900	LH LOWER LATERAL PROFILE	$84.21	To Order

Photo	Part No	Description	Price (each)	Stock
	84948900	OUTER LATERAL FASTENER BRACKET FOR HEADLIGHT	$251.39	To Order

Photo	Part No	Description	Price (each)	Stock
	84220600	LH REAR WHEELHOUSE	$358.49	To Order
	84220500	RH REAR WHEELHOUSE	$358.49	To Order

Photo	Part No	Description	Price (each)	Stock
	84960700	FENDER MOUNTING BRACKET ON RH FRONT TRELLIS	$326.82	To Order

Photo	Part No	Description	Price (each)	Stock
	84960800	FENDER MOUNTING BRACKET ON LH FRONT TRELLIS	$326.82	To Order

Photo	Part No	Description	Price (each)	Stock
	84352300	RH LID BRACKET MOUNTING BRACKET	$213.69	To Order

Photo	Part No	Description	Price (each)	Stock
	84352400	LH LID BRACKET MOUNTING BRACKET	$213.69	To Order

Photo	Part No	Description	Price (each)	Stock
	275640	WINDSCREEN WIPER AND BRAKE FLUID RESERVOIR BRACKET	$66.61	To Order

Photo	Part No	Description	Price (each)	Stock
	277276	REAR WINDSCREEN WIPER MOUNTING BRACKET	$32.67	To Order
	84859600	REAR WINDSCREEN WIPER MOUNTING BRACKET	$32.67	To Order

Photo	Part No	Description	Price (each)	Stock
	84949700	INNER LATERAL FASTENER BRACKET FOR RH HEADLIGHT	$251.39	To Order

Photo	Part No	Description	Price (each)	Stock
	84949800	INNER LATERAL FASTENER BRACKET FOR LH HEADLIGHT	$251.39	To Order

Photo	Part No	Description	Price (each)	Stock
	84398800	UPPER FASTENER BRACKET FOR RH HEADLIGHT	$240.11	To Order

Photo	Part No	Description	Price (each)	Stock
	84398900	UPPER FASTENER BRACKET FOR LH HEADLIGHT	$240.11	To Order

Photo	Part No	Description	Price (each)	Stock
	84642700	RH LATERAL SUBSTRUCTURE	$201.11	To Order

Photo	Part No	Description	Price (each)	Stock
	85091400	BRACKET	$251.39	To Order

Photo	Part No	Description	Price (each)	Stock
	287660	RH HOOK FASTENER BRACKET	$125.69	To Order

Photo	Part No	Description	Price (each)	Stock
	84508800	RH FENDER FASTENER BRACKET	$20.10	To Order
	84508900	LH FENDER FASTENER BRACKET	$21.36	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	278365	INTERNAL LH UNDERWINDSCREEN TRAY BRACKET	278365 INTERNAL LH UNDERWINDSCREEN TRAY BRACKET After depletion, order compl. tab. 102 ref. 278040; Applicable up to Ass. No. 108239; Applicable until depletion	$190.28	1
2	84643700	LH LATERAL SUBSTRUCTURE	84643700 LH LATERAL SUBSTRUCTURE	$201.11	1
3	278395	INTERNAL RH UNDERWINDSCREEN TRAY BRACKET	278395 INTERNAL RH UNDERWINDSCREEN TRAY BRACKET After depletion, order compl. tab. 102 ref. 278041; Applicable up to Ass. No. 108239; Applicable until depletion	$190.28	1
4	83342500	INTERNAL FRONT CONNECTOR ELEMENT	83342500 INTERNAL FRONT CONNECTOR ELEMENT	$10.67	2
5	278396	EXTERNAL RH UNDERWINDSCREEN TRAY BRACKET	278396 EXTERNAL RH UNDERWINDSCREEN TRAY BRACKET	$251.39	1
6	84232600	FRONT TRELLIS FOR RH HEADLIGHT	84232600 FRONT TRELLIS FOR RH HEADLIGHT	$1,125.58	1
7	84232700	FRONT TRELLIS FOR LH HEADLIGHT	84232700 FRONT TRELLIS FOR LH HEADLIGHT	$1,125.58	1
8	84233000	FRONT RH FENDER TRELLIS IN STOCK	84233000 FRONT RH FENDER TRELLIS IN STOCK	$1,422.02	1
9	84233100	FRONT LH FENDER TRELLIS	84233100 FRONT LH FENDER TRELLIS	$1,982.35	1
10	84573000	PARTITION ON WHEELHOUSE	84573000 PARTITION ON WHEELHOUSE	$70.39	2
11	286416	REAR BRACKET FOR REAR FASTENER	286416 REAR BRACKET FOR REAR FASTENER	$20.10	1
12	271344	COMPL. FRONT WHEEL BAY SHIELD FASTENER BRACKET	271344 COMPL. FRONT WHEEL BAY SHIELD FASTENER BRACKET	$11.17	4
13	279847	SECONDARY AIR SYSTEM PIPE FASTENER BRACKET	279847 SECONDARY AIR SYSTEM PIPE FASTENER BRACKET	$125.69	1
14	286417	FRONT FASTENER BRACKET FOR FRONT UNIT	286417 FRONT FASTENER BRACKET FOR FRONT UNIT	$12.55	1
15	83557100	MOUNTING FOR INTERNAL RH FRONT FENDER TUBE	83557100 MOUNTING FOR INTERNAL RH FRONT FENDER TUBE	$75.40	1
16	83557200	MOUNTING FOR INTERNAL LH FRONT FENDER TUBE	83557200 MOUNTING FOR INTERNAL LH FRONT FENDER TUBE	$75.40	1
17	271348	COMPL. RH REAR WHEEL BAY SHIELD MOUNTING BRACKET	271348 COMPL. RH REAR WHEEL BAY SHIELD MOUNTING BRACKET	$14.54	1
17	271346	COMPL. LH REAR WHEEL BAY SHIELD MOUNTING BRACKET	271346 COMPL. LH REAR WHEEL BAY SHIELD MOUNTING BRACKET	$14.54	1
18	287670	LH HOOK FASTENER BRACKET	287670 LH HOOK FASTENER BRACKET	$125.69	1
19	85097800	LH TRELLIS PILLAR	85097800 LH TRELLIS PILLAR Not for GD	$1,030.77	1
19	85148200	LH TRELLIS PILLAR	85148200 LH TRELLIS PILLAR Applicable for GD	$1,030.77	1
19	84137000	RH TRELLIS PILLAR	84137000 RH TRELLIS PILLAR Not for GD	$1,030.77	1
19	85147900	RH TRELLIS PILLAR	85147900 RH TRELLIS PILLAR Applicable for GD	$1,030.77	1
20	286418	REAR BRACKET FOR FRONT FASTENER	286418 REAR BRACKET FOR FRONT FASTENER	$5.02	2
21	83783200	COMPL. REAR TRELLIS CROSS BEAM FOR RH FRONT FENDER	83783200 COMPL. REAR TRELLIS CROSS BEAM FOR RH FRONT FENDER	$66.38	1
21	83783400	LH REAR TRELLIS CROSS-MEMBER	83783400 LH REAR TRELLIS CROSS-MEMBER	$71.10	1
22	286420	RH FASTENER BRACKET FOR FRONT UNIT	286420 RH FASTENER BRACKET FOR FRONT UNIT	$3.90	1
23	286419	LH FASTENER BRACKET FOR FRONT UNIT	286419 LH FASTENER BRACKET FOR FRONT UNIT	$5.02	1
24	288328	REAR FASTENER BRACKET FOR RH ENGINE COVER	288328 REAR FASTENER BRACKET FOR RH ENGINE COVER	$125.69	1
25	83033900	LOWER FASTENER BEAM FOR RH FENDER	83033900 LOWER FASTENER BEAM FOR RH FENDER	$213.69	1
25	83034000	LOWER FASTENER BEAM FOR LH FENDER	83034000 LOWER FASTENER BEAM FOR LH FENDER	$201.11	1
26	288606	LH ENGINE COVER BRACKET	288606 LH ENGINE COVER BRACKET	$125.69	1
27	270772	BLOW-BY PIPE FASTENER BRACKET	270772 BLOW-BY PIPE FASTENER BRACKET	$201.11	1
28	84977200	COMPL. BACK PANEL	84977200 COMPL. BACK PANEL Applicable for CINA, USA, CDN, GOLFO, USA LIGHT	$779.35 MSRP: ~~1,140.02~~ (31.6% off)	1
28	84185600	COMPL. BACK PANEL	84185600 COMPL. BACK PANEL Not for CINA, USA, CDN, GOLFO, USA LIGHT	$2,007.50	1
29	284573	INJECTION CABLE FASTENER BRACKET	284573 INJECTION CABLE FASTENER BRACKET	$201.11	2
30	84859500	RH WINDSCREEN WIPER FASTENER BRACKET	84859500 RH WINDSCREEN WIPER FASTENER BRACKET Applicable for GD	$51.53	1
30	84979600	LH WINDSCREEN WIPER FASTENER BRACKET	84979600 LH WINDSCREEN WIPER FASTENER BRACKET Not for GD	$326.82	1
31	84220300	REAR ELEMENT OF RH LATERAL SUBSTRUCTURE	84220300 REAR ELEMENT OF RH LATERAL SUBSTRUCTURE	$32.94	1
32	85077600	REAR ELEMENT OF LH LATERAL SUBSTRUCTURE	85077600 REAR ELEMENT OF LH LATERAL SUBSTRUCTURE	$35.85	1
33	288334	FASTENER BRACKET FOR RH ENGINE COVER	288334 FASTENER BRACKET FOR RH ENGINE COVER After depletion, order compl. tab. 102 ref. 278041; Applicable until depletion	$95.14	1
34	288652	FASTENER BRACKET FOR LH ENGINE COVER	288652 FASTENER BRACKET FOR LH ENGINE COVER After depletion, order compl. tab. 102 ref. 278040; Applicable until depletion	$47.57	1
35	84280900	PROFILE LINKING RH PILLAR WITH FLANK	84280900 PROFILE LINKING RH PILLAR WITH FLANK	$35.00	1
35	84281000	PROFILE LINKING LH PILLAR WITH FLANK	84281000 PROFILE LINKING LH PILLAR WITH FLANK	$40.20	1
36	83861400	LOWER RH DOOR SEAL PROFILE	83861400 LOWER RH DOOR SEAL PROFILE	$47.75	1
37	83861500	LOWER LH DOOR SEAL PROFILE	83861500 LOWER LH DOOR SEAL PROFILE	$47.75	1
38	84221100	RH EXTERNAL LATERAL SHIELD	84221100 RH EXTERNAL LATERAL SHIELD	$47.75	1
39	84221200	LH EXTERNAL LATERAL SHIELD	84221200 LH EXTERNAL LATERAL SHIELD	$47.75	1
40	84221900	UPPER RH PILLAR CONNECTOR PROFILE	84221900 UPPER RH PILLAR CONNECTOR PROFILE	$32.67	1
41	84222000	UPPER LH PILLAR CONNECTOR PROFILE	84222000 UPPER LH PILLAR CONNECTOR PROFILE	$32.67	1
42	84221700	PROFILE LINKING RH PILLAR WITH FLANK	84221700 PROFILE LINKING RH PILLAR WITH FLANK	$40.01	1
43	84221800	PROFILE LINKING LH PILLAR WITH FLANK	84221800 PROFILE LINKING LH PILLAR WITH FLANK	$40.01	1
44	84279800	RH FRONT FLANK SUBSTRUCTURE	84279800 RH FRONT FLANK SUBSTRUCTURE	$163.40	1
45	84279900	LH FRONT FLANK SUBSTRUCTURE	84279900 LH FRONT FLANK SUBSTRUCTURE	$163.40	1
47	84948700	FRONT FASTENER BRACKET FOR RH HEADLIGHT	84948700 FRONT FASTENER BRACKET FOR RH HEADLIGHT	$251.39	1
48	84948800	FRONT FASTENER BRACKET FOR LH HEADLIGHT	84948800 FRONT FASTENER BRACKET FOR LH HEADLIGHT	$251.39	1
49	84952500	LOWER MOUNTING BRACKET FOR FRONT BUMPER	84952500 LOWER MOUNTING BRACKET FOR FRONT BUMPER	$99.29	2
50	84634800	RH LOWER LATERAL PROFILE	84634800 RH LOWER LATERAL PROFILE	$84.21	1
50	84634900	LH LOWER LATERAL PROFILE	84634900 LH LOWER LATERAL PROFILE	$84.21	1
51	84948900	OUTER LATERAL FASTENER BRACKET FOR HEADLIGHT	84948900 OUTER LATERAL FASTENER BRACKET FOR HEADLIGHT	$251.39	2
52	84220600	LH REAR WHEELHOUSE	84220600 LH REAR WHEELHOUSE	$358.49	1
52	84220500	RH REAR WHEELHOUSE	84220500 RH REAR WHEELHOUSE	$358.49	1
53	84960700	FENDER MOUNTING BRACKET ON RH FRONT TRELLIS	84960700 FENDER MOUNTING BRACKET ON RH FRONT TRELLIS	$326.82	1
54	84960800	FENDER MOUNTING BRACKET ON LH FRONT TRELLIS	84960800 FENDER MOUNTING BRACKET ON LH FRONT TRELLIS	$326.82	1
55	84352300	RH LID BRACKET MOUNTING BRACKET	84352300 RH LID BRACKET MOUNTING BRACKET	$213.69	1
56	84352400	LH LID BRACKET MOUNTING BRACKET	84352400 LH LID BRACKET MOUNTING BRACKET	$213.69	1
57	275640	WINDSCREEN WIPER AND BRAKE FLUID RESERVOIR BRACKET	275640 WINDSCREEN WIPER AND BRAKE FLUID RESERVOIR BRACKET Not for GD	$66.61	1
58	277276	REAR WINDSCREEN WIPER MOUNTING BRACKET	277276 REAR WINDSCREEN WIPER MOUNTING BRACKET Not for GD	$32.67	1
58	84859600	REAR WINDSCREEN WIPER MOUNTING BRACKET	84859600 REAR WINDSCREEN WIPER MOUNTING BRACKET Applicable for GD	$32.67	1
59	84949700	INNER LATERAL FASTENER BRACKET FOR RH HEADLIGHT	84949700 INNER LATERAL FASTENER BRACKET FOR RH HEADLIGHT	$251.39	1
60	84949800	INNER LATERAL FASTENER BRACKET FOR LH HEADLIGHT	84949800 INNER LATERAL FASTENER BRACKET FOR LH HEADLIGHT	$251.39	1
61	84398800	UPPER FASTENER BRACKET FOR RH HEADLIGHT	84398800 UPPER FASTENER BRACKET FOR RH HEADLIGHT	$240.11	1
62	84398900	UPPER FASTENER BRACKET FOR LH HEADLIGHT	84398900 UPPER FASTENER BRACKET FOR LH HEADLIGHT	$240.11	1
63	84642700	RH LATERAL SUBSTRUCTURE	84642700 RH LATERAL SUBSTRUCTURE	$201.11	1
64	85091400	BRACKET	85091400 BRACKET	$251.39	2
65	287660	RH HOOK FASTENER BRACKET	287660 RH HOOK FASTENER BRACKET	$125.69	1
66	84508800	RH FENDER FASTENER BRACKET	84508800 RH FENDER FASTENER BRACKET	$20.10	1
66	84508900	LH FENDER FASTENER BRACKET	84508900 LH FENDER FASTENER BRACKET	$21.36	1
