Rear Suspension

Ferrari California (2012-2014)

Find Your Part

Ferrari California (2012-2014) - REAR SUSPENSION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
299933 LH REAR HUB CARRIER $2,361.12 IN STOCK
Photo Part No Description Price (each) Stock
264528 THREADED ROD $3.40 IN STOCK
Photo Part No Description Price (each) Stock
12646821 WASHER D.10 20-25 X 2 $0.11 IN STOCK
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.66 IN STOCK
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut $0.81 IN STOCK
Photo Part No Description Price (each) Stock
15541434 SCREW 12.1 X 25 X 80 $1.83 IN STOCK
Photo Part No Description Price (each) Stock
12643778 BLACK WASHER D.6.45-18X1.5 $0.24 IN STOCK
Photo Part No Description Price (each) Stock
203666 NUT $0.81 IN STOCK
Photo Part No Description Price (each) Stock
810450 LH Rear Lower Arm $1,252.30 IN STOCK
810463 RH Lower Rear Suspension Arm $1,252.30 IN STOCK
Photo Part No Description Price (each) Stock
262543 ADJUSTER SHIM $8.16 To Order
238884 ADJUSTMENT SHIM $5.25 IN STOCK
262542 ADJUSTER SHIM $8.16 IN STOCK
...and 13 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
245161 TIE ROD REAR SUSPENSION $316.50 IN STOCK
Photo Part No Description Price (each) Stock
222956 COMPENSATOR RING $16.40 To Order
Photo Part No Description Price (each) Stock
238258 SCREW $28.70 IN STOCK
Photo Part No Description Price (each) Stock
238656 SPECIAL SCREW TCEI M14 X 1.5 X 21 $24.28 IN STOCK
Photo Part No Description Price (each) Stock
238063 NUT $3.91 IN STOCK
Photo Part No Description Price (each) Stock
242391 BALL-JOINT TIE-ROD $116.08 IN STOCK
242392 BALL-JOINT TIE-ROD $116.08 IN STOCK
Photo Part No Description Price (each) Stock
261945 REAR STABILISER BAR $378.70 To Order
261945 REAR STABILISER BAR $378.70 To Order
274172 REAR STABILISER BAR $366.08 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
12601474 WASHER $0.03 IN STOCK
Photo Part No Description Price (each) Stock
10791014 NUT $0.26 To Order
Photo Part No Description Price (each) Stock
236242 Roll Bar Bush D21 x 36 $30.13 IN STOCK
236242 Roll Bar Bush D21 x 36 $30.13 IN STOCK
236242 Roll Bar Bush D21 x 36 $30.13 IN STOCK
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
244778 RETAINER BRACKET $21.45 To Order
Photo Part No Description Price (each) Stock
12578321 NUT $0.58 IN STOCK
Photo Part No Description Price (each) Stock
251744 TRIPLE CLIP $1.26 IN STOCK
View All

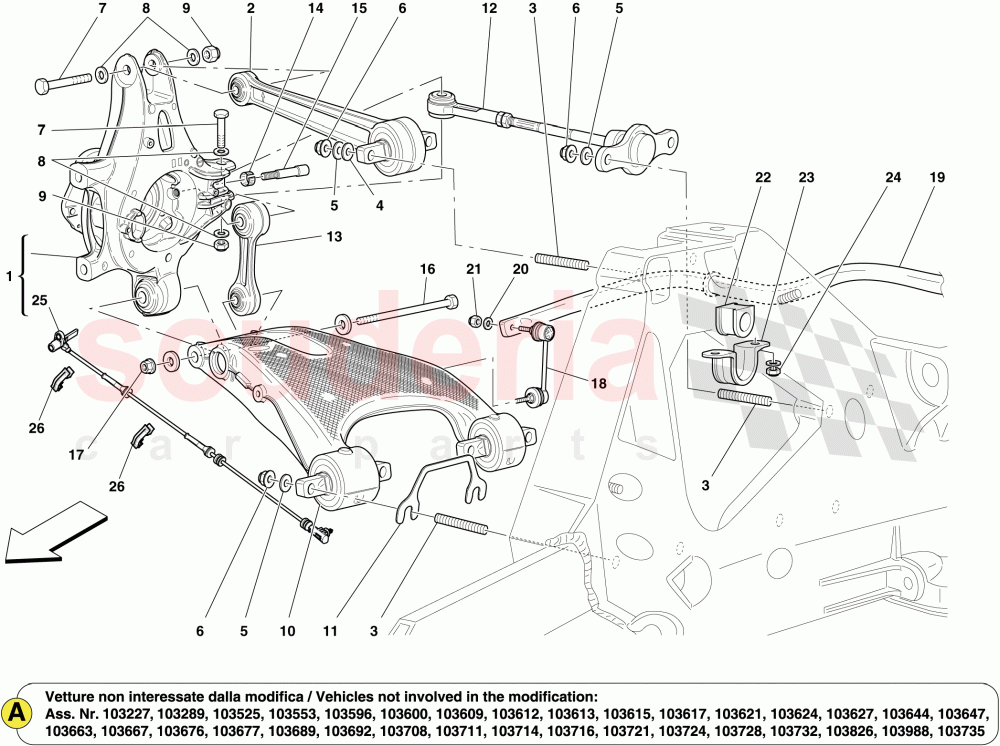

REAR SUSPENSION of Ferrari Ferrari California (2012-2014) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 299933
LH REAR HUB CARRIER
Applicable from Ass. No. 107307
IN STOCK 		$2,361.12 (29.5% off) 1
3 264528
THREADED ROD
IN STOCK 		$3.40 (13.9% off) 16
4 12646821
WASHER D.10 20-25 X 2
IN STOCK 		$0.11 (78% off) 4
5 126648
WASHER D.10.5-21 X 2
IN STOCK 		$1.66 (5.1% off) 16
6 12574521
Nyloc Nut
IN STOCK 		$0.81 (59.5% off) 16
7 15541434
SCREW 12.1 X 25 X 80
IN STOCK 		$1.83 (38.6% off) 4
8 12643778
BLACK WASHER D.6.45-18X1.5
IN STOCK 		$0.24 (52% off) 8
9 203666
NUT
IN STOCK 		$0.81 (59.5% off) 4
10 810450
LH Rear Lower Arm
Applicable from Ass. No. 95582
IN STOCK 		$1,252.30 1
10 810463
RH Lower Rear Suspension Arm
Applicable from Ass. No. 95582
IN STOCK 		$1,252.30 1
11 262543
ADJUSTER SHIM
Th. 4 mm 		$8.16 4
11 238884
ADJUSTMENT SHIM
Th. 3.5 mm; No longer supplied; Replaced by 262542
IN STOCK 		$5.25 (16% off) 8
11 262542
ADJUSTER SHIM
Th. 3.5 mm
IN STOCK 		$8.16 (6.6% off) 4
11 238885
CAMBER SPACER 4MM
Th. 4 mm; No longer supplied; Replaced by 262543
IN STOCK 		$5.42 (13.3% off) 8
11 238882
ADJUSTMENT SHIM
Th. 2.5 mm; No longer supplied; Replaced by 262540 		$5.25 (16% off) 8
11 262540
ADJUSTER SHIM
Th. 2.5 mm
IN STOCK 		$8.16 (6.6% off) 4
11 238883
ADJUSTMENT SHIM
Th. 3 mm; No longer supplied; Replaced by 262541
IN STOCK 		$5.25 (16% off) 8
11 262541
ADJUSTER SHIM
Th. 3 mm
IN STOCK 		$8.16 (6.6% off) 4
11 262546
ADJUSTER SHIM
Th. 1.5 mm
IN STOCK 		$8.16 4
11 238694
ADJUSTMENT SHIM
Th. 2 mm; No longer supplied; Replaced by 262539 		$5.25 (14.6% off) 8
11 262539
ADJUSTER SHIM
Th. 2 mm 		$8.16 (6.6% off) 4
11 262544
ADJUSTER SHIM
Th. 0.5 mm 		$8.16 (6.6% off) 4
11 238693
CAMBER SPACER 1MM
Th. 1 mm; No longer supplied; Replaced by 262545
IN STOCK 		$5.42 (13.3% off) 8
11 262545
ADJUSTER SHIM
Th. 1 mm 		$8.16 (6.6% off) 4
11 238881
CAMBER SPACER 1.5MM
Th. 1.5 mm; No longer supplied; Replaced by 262546
IN STOCK 		$5.42 (11.9% off) 8
11 238692
ADJUSTMENT SHIM
Th. 0.5 mm; No longer supplied; Replaced by 262544
IN STOCK 		$5.63 (8.5% off) 8
12 245161
TIE ROD REAR SUSPENSION
IN STOCK 		$316.50 (29.6% off) 2
14 222956
COMPENSATOR RING 		$16.40 2
15 238258
SCREW
IN STOCK 		$28.70 2
16 238656
SPECIAL SCREW TCEI M14 X 1.5 X 21
IN STOCK 		$24.28 (11.3% off) 2
17 238063
NUT
IN STOCK 		$3.91 (28.9% off) 2
18 242391
BALL-JOINT TIE-ROD
IN STOCK 		$116.08 1
18 242392
BALL-JOINT TIE-ROD
IN STOCK 		$116.08 1
19 261945
REAR STABILISER BAR
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD; Applicable from Ass. No. 91553 		$378.70 1
19 261945
REAR STABILISER BAR
Applicable for DCT-F1 gearbox (Not for mechanical gearbox) 		$378.70 1
19 274172
REAR STABILISER BAR
not affected by modification; Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for CINA, USA, CDN, J, GD, USA LIGHT; Applicable from Ass. No. 103179 		$366.08 1
19 261945
REAR STABILISER BAR
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for CINA, USA, CDN, J, USA LIGHT; Applicable from Ass. No. 90609 		$378.70 1
19 261945
REAR STABILISER BAR
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for CINA, USA, CDN, J, GD, USA LIGHT; Applicable from Ass. No. 89389 up to Ass. No. 103178 		$378.70 1
19 250810
REAR STABILISER BAR
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for CINA, USA, CDN, J, USA LIGHT; Applicable up to Ass. No. 90608
IN STOCK 		$235.91 1
19 250810
REAR STABILISER BAR
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD; Applicable up to Ass. No. 91552
IN STOCK 		$235.91 1
19 250810
REAR STABILISER BAR
Not for DCT-F1 gearbox (Applicable for mechanical gearbox)
IN STOCK 		$235.91 1
19 250810
REAR STABILISER BAR
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for CINA, USA, CDN, J, GD, USA LIGHT; Applicable up to Ass. No. 89388
IN STOCK 		$235.91 1
20 12601474
WASHER
IN STOCK 		$0.03 2
21 10791014
NUT 		$0.26 2
22 236242
Roll Bar Bush D21 x 36
Applicable for DCT-F1 gearbox (Not for mechanical gearbox)
IN STOCK 		$30.13 2
22 236242
Roll Bar Bush D21 x 36
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for CINA, USA, CDN, J, USA LIGHT; Applicable from Ass. No. 90609
IN STOCK 		$30.13 2
22 236242
Roll Bar Bush D21 x 36
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD; Applicable from Ass. No. 91553
IN STOCK 		$30.13 2
22 247743
PLUG
Not for DCT-F1 gearbox (Applicable for mechanical gearbox) 		$21.09 (32.2% off) 2
22 236242
Roll Bar Bush D21 x 36
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for CINA, USA, CDN, J, GD, USA LIGHT; Applicable from Ass. No. 89389
IN STOCK 		$30.13 2
22 247743
PLUG
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for CINA, USA, CDN, J, USA LIGHT; Applicable up to Ass. No. 90608 		$21.09 (32.2% off) 2
22 247743
PLUG
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD; Applicable up to Ass. No. 91552 		$21.09 (32.2% off) 2
22 247743
PLUG
Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for CINA, USA, CDN, J, GD, USA LIGHT; Applicable up to Ass. No. 89388 		$21.09 (32.2% off) 2
23 244778
RETAINER BRACKET 		$21.45 2
24 12578321
NUT
IN STOCK 		$0.58 4
26 251744
TRIPLE CLIP
Applicable for sensor Part No. 252514, ref. 25; Applicable from Ass. No. 107307
IN STOCK 		$1.26 (33.7% off) 4
