Brake System -Not Applicable For Gd-

Ferrari California (2012-2014)

Find Your Part

Ferrari California (2012-2014) - BRAKE SYSTEM -Not applicable for GD-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
285939 ABS/ASR HYDRAULIC UNIT $4,362.46 To Order
266977 ABS/ASR HYDRAULIC UNIT $7,016.33 To Order
Photo Part No Description Price (each) Stock
243419 MOUNTING $151.63 To Order
Photo Part No Description Price (each) Stock
13839224 SCREW $2.41 To Order
Photo Part No Description Price (each) Stock
232869 BUSH $37.90 To Order
Photo Part No Description Price (each) Stock
256202 BRAKE PIPE FROM "R" TO MC2 $49.27 To Order
246375 BRAKE PIPE FROM "R" TO CONNECTOR $39.15 To Order
Photo Part No Description Price (each) Stock
256200 BRAKE PIPE FROM "F" TO MC1 $65.70 To Order
246370 BRAKE PIPE FROM "F" TO CONNECTOR $39.15 To Order
Photo Part No Description Price (each) Stock
244407 BRAKE PIPE FROM "RR" TO R.H. REAR JUNCTION $53.07 To Order
Photo Part No Description Price (each) Stock
249620 BRAKE PIPE FROM "RL" TO L.H. REAR JUNCTION $51.80 To Order
Photo Part No Description Price (each) Stock
234286 CLIP $1.34 To Order
234286 CLIP $1.34 To Order
Photo Part No Description Price (each) Stock
244792 FOUR-WAY UNION $92.02 To Order
244792 FOUR-WAY UNION $92.02 To Order
Photo Part No Description Price (each) Stock
246372 BRAKE PIPE FROM UNION TO "MC1" $31.58 To Order
Photo Part No Description Price (each) Stock
246377 BRAKE PIPE FROM UNION TO "MC2" $36.64 To Order
Photo Part No Description Price (each) Stock
244405 BRAKE PIPE FROM "FR" TO R.H. FRONT JUNCTION $76.93 To Order
Photo Part No Description Price (each) Stock
242516 BRAKE PIPE FROM "FL" TO L.H. FRONT JUNCTION $50.54 To Order
Photo Part No Description Price (each) Stock
244409 R.H. BRAKE PIPE FROM JUNCTION TO SHIELD PIPE $24.13 To Order
Photo Part No Description Price (each) Stock
260832 BRAKE PIPE FROM FIREWALL TO RH UNDERBODY PIPE $61.91 To Order
244453 BRAKE PIPE FROM SHIELD TO R.H. UNDERFLOOR PIPE $25.63 To Order
Photo Part No Description Price (each) Stock
249622 L.H. BRAKE PIPE FROM JUNCTION TO SHIELD PIPE $40.42 To Order
Photo Part No Description Price (each) Stock
244446 R.H. UNDERFLOOR BRAKE PIPE $63.35 To Order
Photo Part No Description Price (each) Stock
241136 L.H. UNDERFLOOR BRAKE PIPE $72.01 To Order
Photo Part No Description Price (each) Stock
234284 CLIP $0.55 IN STOCK
234284 CLIP $0.55 IN STOCK
Photo Part No Description Price (each) Stock
234285 CLIP $0.61 IN STOCK
234285 CLIP $0.61 IN STOCK
Photo Part No Description Price (each) Stock
241118 CLIP $2.19 IN STOCK
Photo Part No Description Price (each) Stock
256204 BRACKET FOR A/C PIPE $48.27 To Order
246383 FOUR-WAY UNION MOUNTING BRACKET $62.20 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
232869 BUSH $37.90 To Order
232869 BUSH $37.90 To Order
Photo Part No Description Price (each) Stock
14058519 FLANGED NUT M8 X 8 $0.23 IN STOCK
14058519 FLANGED NUT M8 X 8 $0.23 IN STOCK
Photo Part No Description Price (each) Stock
257296 BRACKET $40.42 To Order
244424 BRACKET $15.07 To Order
Photo Part No Description Price (each) Stock
13839224 SCREW $2.41 To Order
Photo Part No Description Price (each) Stock
248971 ECU cover $14.92 To Order
Photo Part No Description Price (each) Stock
248166 PLATE $12.25 To Order
Photo Part No Description Price (each) Stock
11568124 SCREW $0.81 IN STOCK
Photo Part No Description Price (each) Stock
251253 BRAKE PIPE FROM UNION TO "MC1" $48.01 To Order
Photo Part No Description Price (each) Stock
251255 BRAKE PIPE FROM UNION TO "MC2" $45.48 To Order
Photo Part No Description Price (each) Stock
14622387 CAP $2.70 IN STOCK
Photo Part No Description Price (each) Stock
244640 PIPE FROM MC1 TO UNION $56.85 To Order
Photo Part No Description Price (each) Stock
244643 PIPE FROM MC2 TO UNION $60.64 To Order
View All

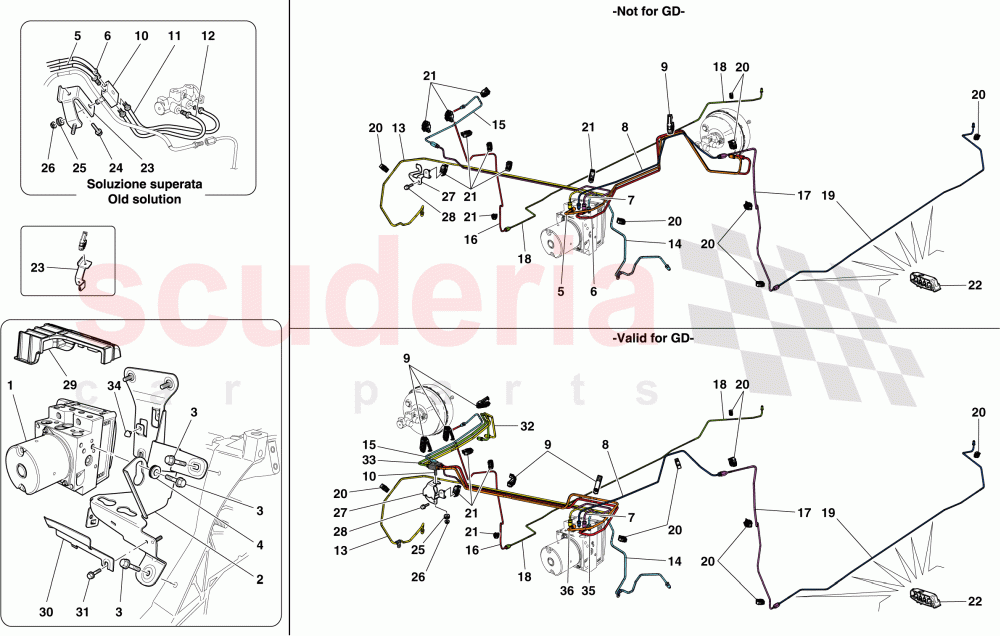

BRAKE SYSTEM -Not applicable for GD- of Ferrari Ferrari California (2012-2014) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 285939
ABS/ASR HYDRAULIC UNIT
Special Handling Pack; Applicable up to Ass. No. 103178 		$4,362.46 1
1 266977
ABS/ASR HYDRAULIC UNIT
Applicable for Stop & Start; Applicable up to Ass. No. 103178 		$7,016.33 1
2 243419
MOUNTING
Applicable up to Ass. No. 103178 		$151.63 1
3 13839224
SCREW
Applicable up to Ass. No. 103178 		$2.41 5
4 232869
BUSH
Applicable up to Ass. No. 103178 		$37.90 3
5 256202
BRAKE PIPE FROM "R" TO MC2
Not for GD; Applicable from Ass. No. 86455 up to Ass. No. 103178 		$49.27 1
5 246375
BRAKE PIPE FROM "R" TO CONNECTOR
Not for GD; Applicable up to Ass. No. 86454 		$39.15 1
6 256200
BRAKE PIPE FROM "F" TO MC1
Not for GD; Applicable from Ass. No. 86455 up to Ass. No. 103178 		$65.70 1
6 246370
BRAKE PIPE FROM "F" TO CONNECTOR
Not for GD; Applicable up to Ass. No. 86454 		$39.15 1
7 244407
BRAKE PIPE FROM "RR" TO R.H. REAR JUNCTION
Applicable up to Ass. No. 103178 		$53.07 1
8 249620
BRAKE PIPE FROM "RL" TO L.H. REAR JUNCTION
Applicable up to Ass. No. 103178 		$51.80 1
9 234286
CLIP
Applicable for GD; Applicable up to Ass. No. 103178 		$1.34 5
9 234286
CLIP
Not for GD; Applicable up to Ass. No. 103178 		$1.34 1
10 244792
FOUR-WAY UNION
Applicable for GD; Applicable up to Ass. No. 103178 		$92.02 1
10 244792
FOUR-WAY UNION
Not for GD; Applicable up to Ass. No. 86454 		$92.02 1
11 246372
BRAKE PIPE FROM UNION TO "MC1"
Not for GD; Applicable up to Ass. No. 86454 		$31.58 1
12 246377
BRAKE PIPE FROM UNION TO "MC2"
Not for GD; Applicable up to Ass. No. 86454 		$36.64 1
13 244405
BRAKE PIPE FROM "FR" TO R.H. FRONT JUNCTION
Applicable up to Ass. No. 103178 		$76.93 1
14 242516
BRAKE PIPE FROM "FL" TO L.H. FRONT JUNCTION
Applicable up to Ass. No. 103178 		$50.54 1
15 244409
R.H. BRAKE PIPE FROM JUNCTION TO SHIELD PIPE
Applicable up to Ass. No. 103178 		$24.13 1
16 260832
BRAKE PIPE FROM FIREWALL TO RH UNDERBODY PIPE
Applicable from Ass. No. 90609 up to Ass. No. 103178 		$61.91 1
16 244453
BRAKE PIPE FROM SHIELD TO R.H. UNDERFLOOR PIPE
Applicable up to Ass. No. 90608 		$25.63 1
17 249622
L.H. BRAKE PIPE FROM JUNCTION TO SHIELD PIPE
Applicable up to Ass. No. 103178 		$40.42 1
18 244446
R.H. UNDERFLOOR BRAKE PIPE
Applicable up to Ass. No. 103178 		$63.35 1
19 241136
L.H. UNDERFLOOR BRAKE PIPE
Applicable up to Ass. No. 103178 		$72.01 1
20 234284
CLIP
Applicable for GD; Applicable up to Ass. No. 103178
IN STOCK 		$0.55 8
20 234284
CLIP
Not for GD; Applicable up to Ass. No. 103178
IN STOCK 		$0.55 7
21 234285
CLIP
Applicable for GD; Applicable up to Ass. No. 103178
IN STOCK 		$0.61 4
21 234285
CLIP
Not for GD; Applicable up to Ass. No. 103178
IN STOCK 		$0.61 9
22 241118
CLIP
Applicable up to Ass. No. 103178
IN STOCK 		$2.19 12
23 256204
BRACKET FOR A/C PIPE
Applicable from Ass. No. 86455 up to Ass. No. 103178 		$48.27 1
23 246383
FOUR-WAY UNION MOUNTING BRACKET
Not for GD; Applicable up to Ass. No. 86454 		$62.20 1
24 86574700
SCREW
M5 X 16; Applicable up to Ass. No. 86454 		$0.61 1
25 232869
BUSH
Applicable for GD; Applicable up to Ass. No. 103178 		$37.90 1
25 232869
BUSH
Not for GD; Applicable up to Ass. No. 86454 		$37.90 1
26 14058519
FLANGED NUT M8 X 8
Applicable for GD; Applicable up to Ass. No. 103178
IN STOCK 		$0.23 (75.8% off) 1
26 14058519
FLANGED NUT M8 X 8
Not for GD; Applicable up to Ass. No. 86454
IN STOCK 		$0.23 (75.8% off) 1
27 257296
BRACKET
Applicable for GD; Applicable up to Ass. No. 103178 		$40.42 1
27 244424
BRACKET
Not for GD; Applicable up to Ass. No. 103178 		$15.07 1
28 13839224
SCREW
Applicable up to Ass. No. 103178 		$2.41 1
29 248971
ECU cover
Applicable up to Ass. No. 103178 		$14.92 1
30 248166
PLATE
Applicable up to Ass. No. 103178 		$12.25 1
31 11568124
SCREW
Applicable up to Ass. No. 103178
IN STOCK 		$0.81 1
32 251253
BRAKE PIPE FROM UNION TO "MC1"
Applicable for GD; Applicable up to Ass. No. 103178 		$48.01 1
33 251255
BRAKE PIPE FROM UNION TO "MC2"
Applicable for GD; Applicable up to Ass. No. 103178 		$45.48 1
34 14622387
CAP
Applicable up to Ass. No. 103178
IN STOCK 		$2.70 1
35 244640
PIPE FROM MC1 TO UNION
Applicable for GD; Applicable up to Ass. No. 103178 		$56.85 1
36 244643
PIPE FROM MC2 TO UNION
Applicable for GD; Applicable up to Ass. No. 103178 		$60.64 1
