Cooling: Radiators And Air Ducts

Ferrari California (2012-2014)

Find Your Part

Ferrari California (2012-2014) - COOLING: RADIATORS AND AIR DUCTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
278488 WATER RADIATOR $911.25 To Order
Photo Part No Description Price (each) Stock
278492 CENTRE MOUNTING BRACKET FOR RADIATOR $164.52 To Order
213559 BRACKET $50.61 IN STOCK
Photo Part No Description Price (each) Stock
307674 RADIATOR MOUNTING BUSH $7.57 IN STOCK
Photo Part No Description Price (each) Stock
227430 WASHER $2.12 To Order
Photo Part No Description Price (each) Stock
227431 Bushing $4.14 IN STOCK
Photo Part No Description Price (each) Stock
16044534 SCREW $1.27 IN STOCK
Photo Part No Description Price (each) Stock
13839224 SCREW $2.41 To Order
Photo Part No Description Price (each) Stock
278490 RH LOWER BRACKET $148.07 To Order
244585 R.H. LOWER BRACKET $39.27 To Order
278489 LH LOWER BRACKET $148.07 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
197584 RUBBER BUSHING $2.37 To Order
Photo Part No Description Price (each) Stock
197585 BUSHING $5.17 To Order
Photo Part No Description Price (each) Stock
16044824 SCREW $0.34 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $4.98 IN STOCK
Photo Part No Description Price (each) Stock
14054511 NUT $1.22 IN STOCK
Photo Part No Description Price (each) Stock
265993 COMPL. ELECTRIC FAN ASSEMBLY $1,663.03 To Order
Photo Part No Description Price (each) Stock
263140 ELECTRIC FAN RESISTOR 0.23 OHM $104.61 IN STOCK
Photo Part No Description Price (each) Stock
16285227 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
16044621 SCREW $0.43 To Order
Photo Part No Description Price (each) Stock
12647021 WASHER $0.31 IN STOCK
Photo Part No Description Price (each) Stock
14054511 NUT $1.22 IN STOCK
Photo Part No Description Price (each) Stock
224878 Clip $0.92 IN STOCK
Photo Part No Description Price (each) Stock
253488 BRACKET FOR OIL DELIVERY TUBE $63.45 To Order
Photo Part No Description Price (each) Stock
14621787 CAP $21.09 To Order
Photo Part No Description Price (each) Stock
281683 LH WIRING HARNESS WITH DIODES $149.23 To Order
281897 RH WIRING HARNESS WITH DIODES $149.23 To Order
View All

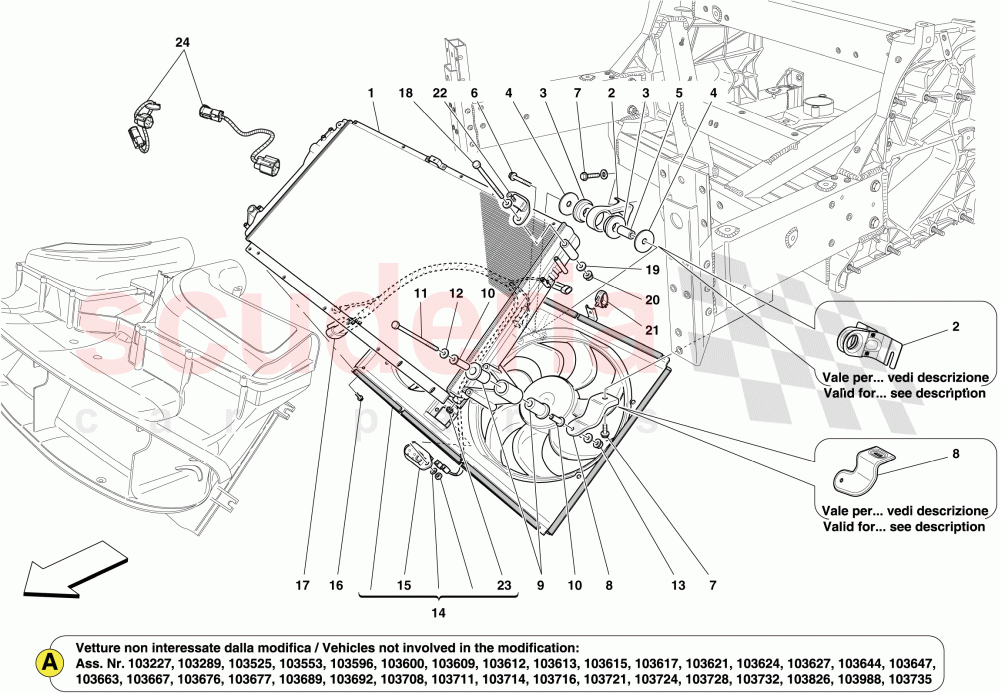

COOLING: RADIATORS AND AIR DUCTS of Ferrari Ferrari California (2012-2014) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 278488
WATER RADIATOR
not affected by modification; Applicable from Ass. No. 103179 		$911.25 1
2 278492
CENTRE MOUNTING BRACKET FOR RADIATOR
not affected by modification; Applicable from Ass. No. 103179 		$164.52 1
2 213559
BRACKET
Applicable up to Ass. No. 103178
IN STOCK 		$50.61 1
3 307674
RADIATOR MOUNTING BUSH
IN STOCK 		$7.57 2
4 227430
WASHER 		$2.12 2
5 227431
Bushing
IN STOCK 		$4.14 1
6 16044534
SCREW
IN STOCK 		$1.27 1
7 13839224
SCREW 		$2.41 4
8 278490
RH LOWER BRACKET
not affected by modification; Applicable from Ass. No. 103179 		$148.07 1
8 244585
R.H. LOWER BRACKET
Applicable up to Ass. No. 103178 		$39.27 (40.4% off) 1
8 278489
LH LOWER BRACKET
not affected by modification; Applicable from Ass. No. 103179 		$148.07 1
8 244584
L.H. LOWER BRACKET
Applicable up to Ass. No. 103178 		$39.27 1
9 197584
RUBBER BUSHING 		$2.37 4
10 197585
BUSHING 		$5.17 4
11 16044824
SCREW 		$0.34 2
12 84653800
WASHER 10 X 18 X 2.5
IN STOCK 		$4.98 2
13 14054511
NUT
IN STOCK 		$1.22 2
14 265993
COMPL. ELECTRIC FAN ASSEMBLY
Applicable for HELE; Applicable for Stop & Start 		$1,663.03 (30% off) 1
15 263140
ELECTRIC FAN RESISTOR 0.23 OHM
Not for HELE; Not for Stop & Start
IN STOCK 		$104.61 1
16 16285227
SCREW
IN STOCK 		$0.31 8
18 16044621
SCREW 		$0.43 1
19 12647021
WASHER
IN STOCK 		$0.31 2
20 14054511
NUT
IN STOCK 		$1.22 1
21 224878
Clip
IN STOCK 		$0.92 1
22 253488
BRACKET FOR OIL DELIVERY TUBE 		$63.45 1
23 14621787
CAP
Not for HELE; Not for Stop & Start 		$21.09 2
24 281683
LH WIRING HARNESS WITH DIODES
Applicable for HELE 		$149.23 (1.2% off) 1
24 281897
RH WIRING HARNESS WITH DIODES
Applicable for HELE 		$149.23 (3.2% off) 1
