Rear Structures And Chassis Box Sections -Applicable Up To Ass.ly No. 103178-

Ferrari California (2012-2014)

Find Your Part

Ferrari California (2012-2014) - REAR STRUCTURES AND CHASSIS BOX SECTIONS -Applicable up to Ass.ly No. 103178-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
985257610 REAR SHELF $1,389.53 To Order
Photo Part No Description Price (each) Stock
985240156 R.H. REAR SIDE PANEL $1,118.74 To Order
Photo Part No Description Price (each) Stock
985240157 RH. REAR SIDE PANEL $1,106.03 To Order
Photo Part No Description Price (each) Stock
985240154 R.H. REAR REINFORCEMENT $470.37 To Order
Photo Part No Description Price (each) Stock
985240155 L.H. REAR REINFORCEMENT $470.37 To Order
Photo Part No Description Price (each) Stock
985237926 REAR MODULE $8,749.21 To Order
Photo Part No Description Price (each) Stock
985253127 R.H. REAR FUSION FOR SUSPENSION CONNECTION $3,215.15 To Order
985253128 L.H. REAR FUSION FOR SUSPENSION CONNECTION $3,215.15 To Order
Photo Part No Description Price (each) Stock
224954 R.H. REAR SPRAG -Ask SAT authorisation- $1,670.50 To Order
985224955 L.H. REAR SPRAG $686.50 To Order
Photo Part No Description Price (each) Stock
985240844 COMPLETE REAR UNDERFRAME $13,512.85 To Order
Photo Part No Description Price (each) Stock
985237867 COMPLETE REAR CROSS MEMBER $5,480.85 To Order
Photo Part No Description Price (each) Stock
16288524 SCREW $2.79 To Order
Photo Part No Description Price (each) Stock
242117 SPARE WHEEL TRAY $2,753.66 To Order
Photo Part No Description Price (each) Stock
16288724 SCREW $11.87 To Order
11343821 SCREW $1.01 IN STOCK
239960 SCREW $20.04 To Order
Photo Part No Description Price (each) Stock
239965 SCREW $36.44 IN STOCK
Photo Part No Description Price (each) Stock
10520024 WASHER $1.95 IN STOCK
Photo Part No Description Price (each) Stock
224956 REAR STRUT FLANGE $3,116.08 To Order
Photo Part No Description Price (each) Stock
332828 REAR TORSION BAR MOUNTING BRACKET $457.66 To Order
Photo Part No Description Price (each) Stock
128944 WASHER $2.74 To Order
Photo Part No Description Price (each) Stock
13507501 WASHER Enquire To Order
View All

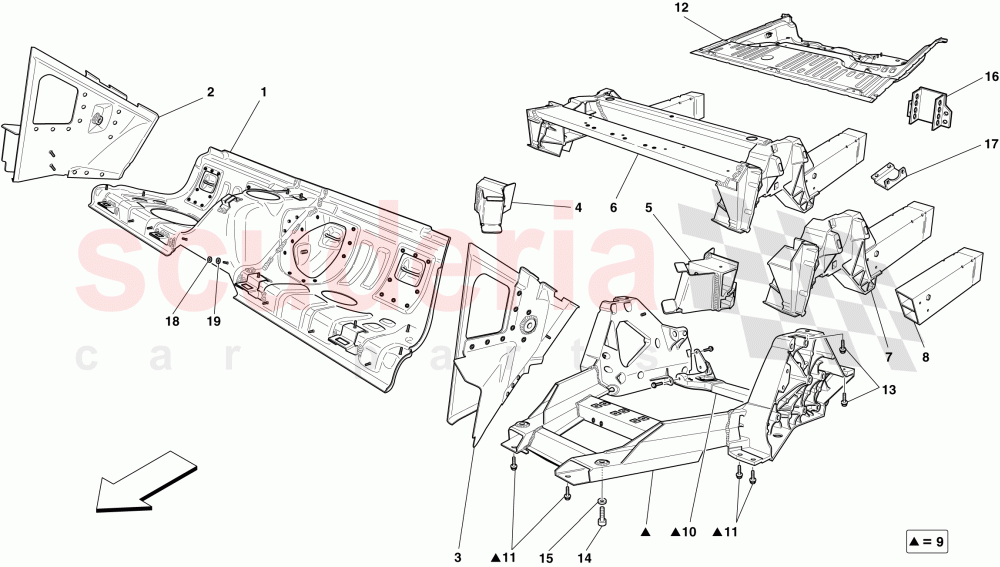

REAR STRUCTURES AND CHASSIS BOX SECTIONS -Applicable up to Ass.ly No. 103178- of Ferrari Ferrari California (2012-2014) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 985257610
REAR SHELF
Applicable for 2-seat version; ; Applicable up to Ass. No. 103178 		$1,389.53 1
2 985240156
R.H. REAR SIDE PANEL
; Applicable up to Ass. No. 103178 		$1,118.74 1
3 985240157
RH. REAR SIDE PANEL
; Applicable up to Ass. No. 103178 		$1,106.03 1
4 985240154
R.H. REAR REINFORCEMENT
; Applicable up to Ass. No. 103178 		$470.37 1
5 985240155
L.H. REAR REINFORCEMENT
; Applicable up to Ass. No. 103178 		$470.37 1
6 985237926
REAR MODULE
; Applicable up to Ass. No. 103178 		$8,749.21 1
7 985253127
R.H. REAR FUSION FOR SUSPENSION CONNECTION
; Applicable up to Ass. No. 103178 		$3,215.15 1
7 985253128
L.H. REAR FUSION FOR SUSPENSION CONNECTION
; Applicable up to Ass. No. 103178 		$3,215.15 1
8 224954
R.H. REAR SPRAG -Ask SAT authorisation-
; Applicable up to Ass. No. 103178 		$1,670.50 1
8 985224955
L.H. REAR SPRAG
; Applicable up to Ass. No. 103178 		$686.50 1
9 985240844
COMPLETE REAR UNDERFRAME
; Applicable up to Ass. No. 103178 		$13,512.85 1
10 985237867
COMPLETE REAR CROSS MEMBER
; Applicable up to Ass. No. 103178 		$5,480.85 1
11 16288524
SCREW
Applicable up to Ass. No. 103178 		$2.79 6
12 242117
SPARE WHEEL TRAY
Applicable up to Ass. No. 103178 		$2,753.66 1
13 16288724
SCREW
M10 X 40; Applicable up to Ass. No. 103178 		$11.87 2
13 11343821
SCREW
M10 X 1.25 X 50; Applicable up to Ass. No. 103178
IN STOCK 		$1.01 2
13 239960
SCREW
Applicable up to Ass. No. 103178; No longer supplied 		$20.04 4
14 239965
SCREW
Applicable up to Ass. No. 103178
IN STOCK 		$36.44 2
15 10520024
WASHER
Applicable up to Ass. No. 103178
IN STOCK 		$1.95 2
16 224956
REAR STRUT FLANGE
Applicable up to Ass. No. 103178 		$3,116.08 2
17 332828
REAR TORSION BAR MOUNTING BRACKET
Applicable up to Ass. No. 103178 		$457.66 2
18 128944
WASHER
Applicable up to Ass. No. 103178 		$2.74 2
19 13507501
WASHER
Applicable up to Ass. No. 103178; No longer supplied 		- 2 Enquire
