Rear Structures And Chassis Box Sections -Applicable From Ass.ly No. 103179 -

Ferrari California (2012-2014)

Find Your Part

Ferrari California (2012-2014) - REAR STRUCTURES AND CHASSIS BOX SECTIONS -Applicable from Ass.ly No. 103179 -

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
985283664 REAR SHELF $1,207.40 To Order
985283253 REAR SHELF $1,207.40 To Order
Photo Part No Description Price (each) Stock
985278612 REAR MODULE $2,885.71 To Order
Photo Part No Description Price (each) Stock
289331 REAR SUBFRAME $6,997.88 To Order
Photo Part No Description Price (each) Stock
985273694 COMPL. REAR CROSS-MEMBER $470.24 To Order
Photo Part No Description Price (each) Stock
16288524 SCREW $2.79 To Order
Photo Part No Description Price (each) Stock
985286129 SPARE WHEEL TUB $622.76 To Order
Photo Part No Description Price (each) Stock
16288724 SCREW $11.86 To Order
11343821 SCREW $1.01 IN STOCK
239960 SCREW $20.03 To Order
Photo Part No Description Price (each) Stock
239965 SCREW $36.43 IN STOCK
Photo Part No Description Price (each) Stock
10520024 WASHER $1.95 IN STOCK
Photo Part No Description Price (each) Stock
287376 RH REAR STRUT FLANGE $292.31 To Order
274157 LH REAR SPAR FLANGE $559.20 To Order
Photo Part No Description Price (each) Stock
332828 REAR TORSION BAR MOUNTING BRACKET $457.53 To Order
Photo Part No Description Price (each) Stock
278458 TOOL KIT FASTENER BRACKET $21.60 To Order
Photo Part No Description Price (each) Stock
268371 SCREW $17.79 To Order
Photo Part No Description Price (each) Stock
239868 SCREW $14.41 To Order
Photo Part No Description Price (each) Stock
14645690 RIVET $0.31 IN STOCK
284930 RIVET $1.18 To Order
Photo Part No Description Price (each) Stock
128944 WASHER $2.74 To Order
Photo Part No Description Price (each) Stock
13507501 WASHER Enquire To Order
View All

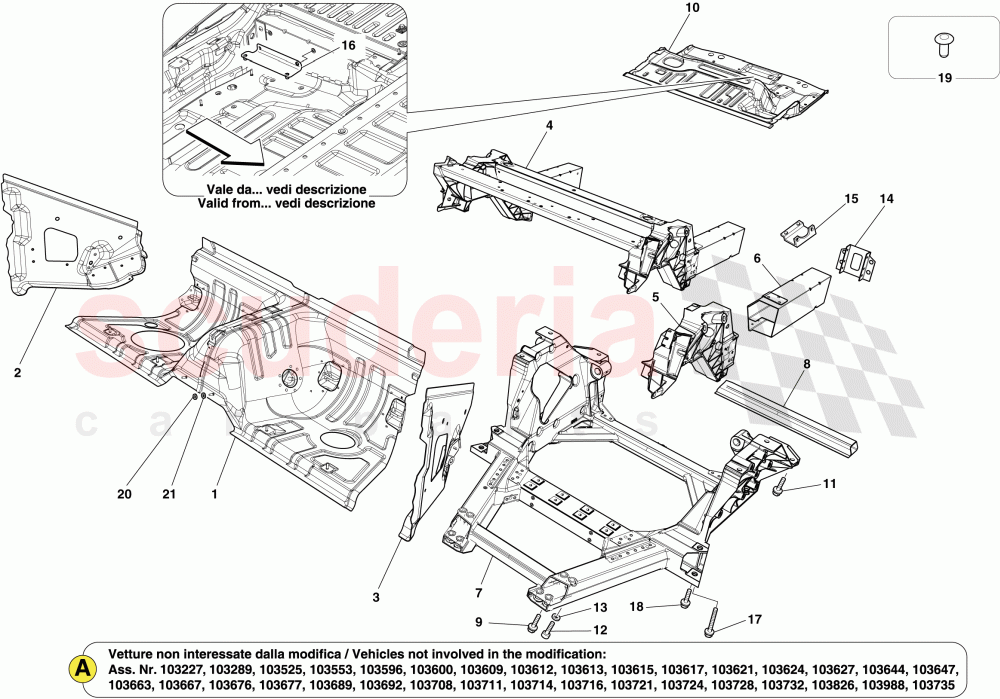

REAR STRUCTURES AND CHASSIS BOX SECTIONS -Applicable from Ass.ly No. 103179 - of Ferrari Ferrari California (2012-2014) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 985283664
REAR SHELF
Applicable for 2-seat version; Request ASM authorisation; not affected by modification; Applicable from Ass. No. 103179 		$1,207.40 1
1 985283253
REAR SHELF
Not for 2-seat version; Request ASM authorisation; not affected by modification; Applicable from Ass. No. 103179 		$1,207.40 1
4 985278612
REAR MODULE
Request ASM authorisation; not affected by modification; Applicable from Ass. No. 103179 		$2,885.71 1
7 289331
REAR SUBFRAME
Request ASM authorisation; not affected by modification; Applicable from Ass. No. 103179 		$6,997.88 1
8 985273694
COMPL. REAR CROSS-MEMBER
Request ASM authorisation; not affected by modification; Applicable from Ass. No. 103179 		$470.24 1
9 16288524
SCREW
not affected by modification; Applicable from Ass. No. 103179 		$2.79 6
10 985286129
SPARE WHEEL TUB
not affected by modification; Applicable from Ass. No. 103179 		$622.76 1
11 16288724
SCREW
M10 X 40; not affected by modification; Applicable from Ass. No. 103179 		$11.86 2
11 11343821
SCREW
M10 X 1.25 X 50; not affected by modification; Applicable from Ass. No. 103179
IN STOCK 		$1.01 2
11 239960
SCREW
not affected by modification; Applicable from Ass. No. 103179; No longer supplied 		$20.03 4
12 239965
SCREW
not affected by modification; Applicable from Ass. No. 103179
IN STOCK 		$36.43 2
13 10520024
WASHER
not affected by modification; Applicable from Ass. No. 103179
IN STOCK 		$1.95 2
14 287376
RH REAR STRUT FLANGE
not affected by modification; Applicable from Ass. No. 103179 		$292.31 1
14 274157
LH REAR SPAR FLANGE
not affected by modification; Applicable from Ass. No. 103179 		$559.20 1
15 332828
REAR TORSION BAR MOUNTING BRACKET
not affected by modification; Applicable from Ass. No. 103179 		$457.53 2
16 278458
TOOL KIT FASTENER BRACKET
not affected by modification; Applicable from Ass. No. 103179 		$21.60 1
17 268371
SCREW
not affected by modification; Applicable from Ass. No. 103179 		$17.79 2
18 239868
SCREW
not affected by modification; Applicable from Ass. No. 103179 		$14.41 2
19 14645690
RIVET
4.8X10; not affected by modification; Applicable from Ass. No. 103179
IN STOCK 		$0.31 -
19 284930
RIVET
4.8X24.8; not affected by modification; Applicable from Ass. No. 103179 		$1.18 -
20 128944
WASHER
not affected by modification; Applicable from Ass. No. 103179 		$2.74 2
21 13507501
WASHER
not affected by modification; Applicable from Ass. No. 103179; No longer supplied 		- 2 Enquire
