FRONT STRUCTURES AND CHASSIS BOX SECTIONS -Applicable up to Ass.ly No. 103178 parts for Ferrari California (2012-2014)

Find Your Part

FRONT STRUCTURES AND CHASSIS BOX SECTIONS -Applicable up to Ass.ly No. 103178- of Ferrari Ferrari California (2012-2014)

View All

Ferrari California (2012-2014) - FRONT STRUCTURES AND CHASSIS BOX SECTIONS -Applicable up to Ass.ly No. 103178-

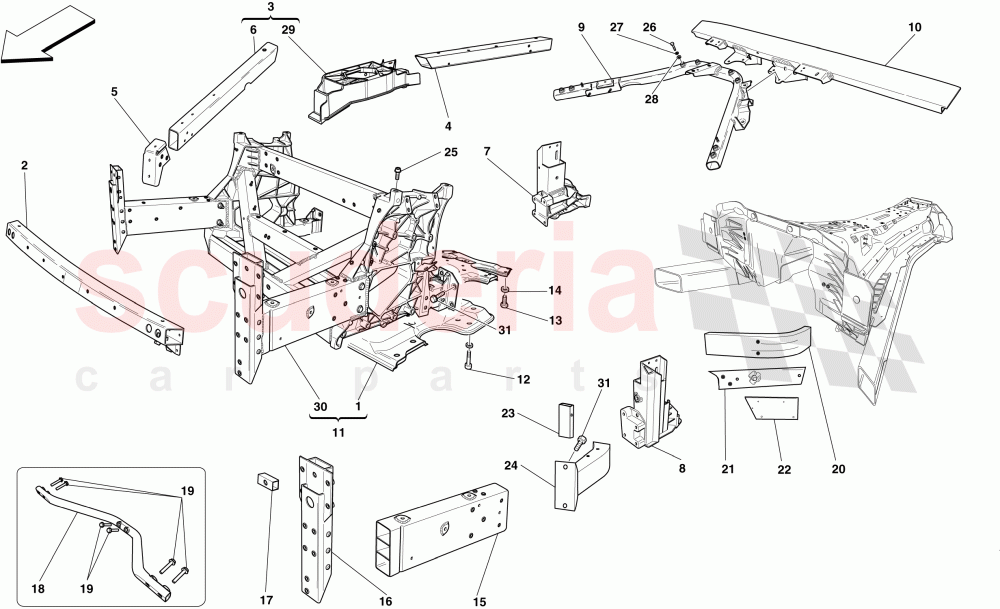

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN

IN STOCK

AS

ARRIVING SOON

TO

To Order

PE

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	238822	COMPL. UPPER FRONT CROSS MEMBER	$3,781.33	To Order

Photo	Part No	Description	Price (each)	Stock
	236949	LH SHOTGUN	$2,404.79	To Order
	236948	RH SHOTGUN	$2,404.79	To Order

Photo	Part No	Description	Price (each)	Stock
	224913	RH UPPER EXTERNAL DIAGONAL FIREWALL BRACE	$305.01	To Order
	224914	LH UPPER EXTERNAL DIAGONAL FIREWALL BRACE	$305.01	To Order

Photo	Part No	Description	Price (each)	Stock
	224971	R.H. UPPER SPRAG FRONT BRACKET -Ask SAT authorisation-	$432.10	To Order
	224972	L.H. UPPER SPRAG FRONT BRACKET -Ask SAT authorisation-	$432.10	To Order

Photo	Part No	Description	Price (each)	Stock
	224909	RH UPPER STRUT	$1,361.07	To Order
	224910	LH UPPER STRUT	$1,361.07	To Order

Photo	Part No	Description	Price (each)	Stock
	985237906	R.H. FRONT LOWER PILLAR	$6,776.72	To Order

Photo	Part No	Description	Price (each)	Stock
	237908	L.H. FRONT LOWER PILLAR -Ask SAT authorisation-	$5,318.94	To Order

Photo	Part No	Description	Price (each)	Stock
	245130	INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	Enquire	To Order
	985245130	ENGINE COMPARTMENT INTERNAL DIAGONAL	$1,029.45	To Order
	234776	INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	236992	COMPL. WINDSCREEN VALENCE PANEL	$902.36	To Order

Photo	Part No	Description	Price (each)	Stock
	239867	SCREW	$1.95	To Order

Photo	Part No	Description	Price (each)	Stock
	239959	SCREW	$6.70	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER 10 X 18 X 2.5	$5.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	229831	R.H. FRONT PILLAR CRASH BOX -Ask SAT authorisation-	$1,470.48	To Order
	224963	L.H. FRONT PILLAR CRASH BOX -Ask SAT authorisation-	$1,470.48	To Order

Photo	Part No	Description	Price (each)	Stock
	985256280	REINFORCEMENT TUBE	$889.65	To Order

Photo	Part No	Description	Price (each)	Stock
	849234	SCREW	$2.54	To Order

Photo	Part No	Description	Price (each)	Stock
	233831	RH WHEEL BUFFER	$521.08	To Order
	233830	LH WHEEL BUFFER	$521.08	To Order

Photo	Part No	Description	Price (each)	Stock
	224921	RH CENTRE EXTERNAL DIAGONAL BRACE	$1,334.49	To Order
	224922	LH CENTRE EXTERNAL DIAGONAL BRACE	$1,334.49	To Order

Photo	Part No	Description	Price (each)	Stock
	224919	RH LOWER EXTERNAL DIAGONAL BRACE	$393.99	To Order
	224920	LH LOWER EXTERNAL DIAGONAL BRACE	$610.04	To Order

Photo	Part No	Description	Price (each)	Stock
	235593	RH VERTICAL CONNECTOR EXTRUSION	$203.33	To Order
	225373	LH VERTICAL CONNECTOR EXTRUSION	$203.33	To Order

Photo	Part No	Description	Price (each)	Stock
	279400	RH FIREWALL INTERNAL DIAGONAL BRACE	$737.13	To Order
	279401	LH FIREWALL INTERNAL DIAGONAL BRACE	$737.13	To Order

Photo	Part No	Description	Price (each)	Stock
	239867	SCREW	$1.95	To Order

Photo	Part No	Description	Price (each)	Stock
	16044434	SCREW	$1.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER 10 X 18 X 2.5	$5.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER 10 X 18 X 2.5	$5.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	224871	CASTING OVER RH FRONT STRUT TOWER BRACE	$3,183.74	To Order
	224872	CASTING OVER LH FRONT STRUT TOWER BRACE	$3,183.74	To Order

Photo	Part No	Description	Price (each)	Stock
	985256289	SUBFRAME	$6,093.71	To Order

Photo	Part No	Description	Price (each)	Stock
	239959	SCREW	$6.70	To Order

View All

FRONT STRUCTURES AND CHASSIS BOX SECTIONS -Applicable up to Ass.ly No. 103178- of Ferrari Ferrari California (2012-2014)

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Order Qty	Add to Cart
	2	238822	COMPL. UPPER FRONT CROSS MEMBER	238822 COMPL. UPPER FRONT CROSS MEMBER ; Applicable up to Ass. No. 103178	$3,781.33	1
	3	236949	LH SHOTGUN	236949 LH SHOTGUN After depletion, order individual parts; Applicable up to Ass. No. 103178; Applicable until depletion	$2,404.79	1
	3	236948	RH SHOTGUN	236948 RH SHOTGUN After depletion, order individual parts; Applicable up to Ass. No. 103178; Applicable until depletion	$2,404.79	1
	4	224913	RH UPPER EXTERNAL DIAGONAL FIREWALL BRACE	224913 RH UPPER EXTERNAL DIAGONAL FIREWALL BRACE Applicable up to Ass. No. 103178	$305.01	1
	4	224914	LH UPPER EXTERNAL DIAGONAL FIREWALL BRACE	224914 LH UPPER EXTERNAL DIAGONAL FIREWALL BRACE Applicable up to Ass. No. 103178	$305.01	1
	5	224971	R.H. UPPER SPRAG FRONT BRACKET -Ask SAT authorisation-	224971 R.H. UPPER SPRAG FRONT BRACKET -Ask SAT authorisation- ; Applicable up to Ass. No. 103178	$432.10	1
	5	224972	L.H. UPPER SPRAG FRONT BRACKET -Ask SAT authorisation-	224972 L.H. UPPER SPRAG FRONT BRACKET -Ask SAT authorisation- ; Applicable up to Ass. No. 103178	$432.10	1
	6	224909	RH UPPER STRUT	224909 RH UPPER STRUT ; Applicable up to Ass. No. 103178	$1,361.07	1
	6	224910	LH UPPER STRUT	224910 LH UPPER STRUT ; Applicable up to Ass. No. 103178	$1,361.07	1
	7	985237906	R.H. FRONT LOWER PILLAR	985237906 R.H. FRONT LOWER PILLAR ; Applicable up to Ass. No. 103178	$6,776.72	1
	8	237908	L.H. FRONT LOWER PILLAR -Ask SAT authorisation-	237908 L.H. FRONT LOWER PILLAR -Ask SAT authorisation- ; Applicable up to Ass. No. 103178	$5,318.94	1
	9	245130	INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	245130 INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE ; Applicable for GD; Applicable up to Ass. No. 103178; Applicable after depletion of 985245130	-	1		Enquire
	9	985245130	ENGINE COMPARTMENT INTERNAL DIAGONAL	985245130 ENGINE COMPARTMENT INTERNAL DIAGONAL ; Applicable for GD; Applicable up to Ass. No. 103178; Applicable until depletion	$1,029.45	1
	9	234776	INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	234776 INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE ; Not for GD; Applicable up to Ass. No. 103178; Applicable after depletion of 985234776	-	1		Enquire
	9	985234776	ENGINE COMPARTMENT INTERNAL DIAGONAL	985234776 ENGINE COMPARTMENT INTERNAL DIAGONAL ; Not for GD; Applicable up to Ass. No. 103178; Applicable until depletion	$965.90	1
	10	236992	COMPL. WINDSCREEN VALENCE PANEL	236992 COMPL. WINDSCREEN VALENCE PANEL ; Applicable up to Ass. No. 103178	$902.36	1
	12	239867	SCREW	239867 SCREW Applicable up to Ass. No. 103178	$1.95	4
	13	239959	SCREW	239959 SCREW Applicable up to Ass. No. 103178	$6.70	10
	14	84653800	WASHER 10 X 18 X 2.5 IN STOCK	84653800 WASHER 10 X 18 X 2.5 Applicable up to Ass. No. 103178 IN STOCK	$5.00	2
	16	229831	R.H. FRONT PILLAR CRASH BOX -Ask SAT authorisation-	229831 R.H. FRONT PILLAR CRASH BOX -Ask SAT authorisation- ; Applicable up to Ass. No. 103178	$1,470.48	1
	16	224963	L.H. FRONT PILLAR CRASH BOX -Ask SAT authorisation-	224963 L.H. FRONT PILLAR CRASH BOX -Ask SAT authorisation- ; Applicable up to Ass. No. 103178	$1,470.48	1
	18	985256280	REINFORCEMENT TUBE	985256280 REINFORCEMENT TUBE Applicable up to Ass. No. 103178	$889.65	1
	19	849234	SCREW	849234 SCREW M8 X 45; Applicable up to Ass. No. 103178	$2.54	6
	20	233831	RH WHEEL BUFFER	233831 RH WHEEL BUFFER ; Applicable up to Ass. No. 103178	$521.08	1
	20	233830	LH WHEEL BUFFER	233830 LH WHEEL BUFFER ; Applicable up to Ass. No. 103178	$521.08	1
	21	224921	RH CENTRE EXTERNAL DIAGONAL BRACE	224921 RH CENTRE EXTERNAL DIAGONAL BRACE ; Applicable up to Ass. No. 103178	$1,334.49	1
	21	224922	LH CENTRE EXTERNAL DIAGONAL BRACE	224922 LH CENTRE EXTERNAL DIAGONAL BRACE ; Applicable up to Ass. No. 103178	$1,334.49	1
	22	224919	RH LOWER EXTERNAL DIAGONAL BRACE	224919 RH LOWER EXTERNAL DIAGONAL BRACE ; Applicable up to Ass. No. 103178	$393.99	1
	22	224920	LH LOWER EXTERNAL DIAGONAL BRACE	224920 LH LOWER EXTERNAL DIAGONAL BRACE ; Applicable up to Ass. No. 103178	$610.04	1
	23	235593	RH VERTICAL CONNECTOR EXTRUSION	235593 RH VERTICAL CONNECTOR EXTRUSION ; Applicable up to Ass. No. 103178	$203.33	1
	23	225373	LH VERTICAL CONNECTOR EXTRUSION	225373 LH VERTICAL CONNECTOR EXTRUSION ; Applicable up to Ass. No. 103178	$203.33	1
	24	279400	RH FIREWALL INTERNAL DIAGONAL BRACE	279400 RH FIREWALL INTERNAL DIAGONAL BRACE Applicable up to Ass. No. 103178	$737.13	1
	24	279401	LH FIREWALL INTERNAL DIAGONAL BRACE	279401 LH FIREWALL INTERNAL DIAGONAL BRACE Applicable up to Ass. No. 103178	$737.13	1
	25	239867	SCREW	239867 SCREW Applicable up to Ass. No. 103178	$1.95	4
	26	16044434	SCREW IN STOCK	16044434 SCREW M8 X 60; Applicable up to Ass. No. 103178 IN STOCK	$1.61	8
	27	84653800	WASHER 10 X 18 X 2.5 IN STOCK	84653800 WASHER 10 X 18 X 2.5 Applicable up to Ass. No. 103178 IN STOCK	$5.00	8
	28	84653800	WASHER 10 X 18 X 2.5 IN STOCK	84653800 WASHER 10 X 18 X 2.5 Applicable up to Ass. No. 103178 IN STOCK	$5.00	8
	29	224871	CASTING OVER RH FRONT STRUT TOWER BRACE	224871 CASTING OVER RH FRONT STRUT TOWER BRACE Applicable after depletion of 236948, Ref. 3; Applicable up to Ass. No. 103178	$3,183.74	1
	29	224872	CASTING OVER LH FRONT STRUT TOWER BRACE	224872 CASTING OVER LH FRONT STRUT TOWER BRACE Applicable after depletion of 236949, Ref. 3; Applicable up to Ass. No. 103178	$3,183.74	1
	30	985256289	SUBFRAME	985256289 SUBFRAME ; Applicable up to Ass. No. 103178; Applicable after depletion of 985259819	$6,093.71	1
	31	239959	SCREW	239959 SCREW Applicable up to Ass. No. 103178	$6.70	10
