Ferrari 599 GTB Fiorano - SECONDARY AIR SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
181197 Secondary Air Pump $519.25 IN STOCK
247795 SECONDARY AIR SYSTEM PUMP $753.45 IN STOCK
Photo Part No Description Price (each) Stock
202788 PUMP FASTENER BRACKET $67.18 To Order
252895 BRACKET $135.91 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
202789 RUBBER PIPE $38.37 To Order
252008 RUBBER PIPE $39.28 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.40 IN STOCK
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
223006 CENTRAL PIPE $332.59 To Order
Photo Part No Description Price (each) Stock
212872 RH SECONDARY AIR PIPE $48.86 To Order
Photo Part No Description Price (each) Stock
212874 LH SECONDARY AIR PIPE $183.26 To Order
Photo Part No Description Price (each) Stock
207528 SLEEVE $71.77 To Order
Photo Part No Description Price (each) Stock
213165 SLEEVE $652.39 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.40 IN STOCK
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.42 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH $0.65 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.62 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
171175 SECONDARY AIR VALVE $320.71 IN STOCK
Photo Part No Description Price (each) Stock
186781 GASKET $5.00 IN STOCK
Photo Part No Description Price (each) Stock
203046 PIPE FOR VALVE $179.08 To Order
Photo Part No Description Price (each) Stock
217965 SUPPORT $35.81 To Order
Photo Part No Description Price (each) Stock
202980 GASKET $2.95 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
14305324 ALLEN SCREW M6 X 20 $0.08 IN STOCK
Photo Part No Description Price (each) Stock
231625 SCREW $0.57 IN STOCK
14305324 ALLEN SCREW M6 X 20 $0.08 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
124790 RUBBER PIPE $7.03 To Order
159542 RUBBER PIPE $4.21 To Order
Photo Part No Description Price (each) Stock
161816257691 THREE-WAY UNION Enquire To Order
257691 3-WAY CONNECTOR $1.36 To Order
Photo Part No Description Price (each) Stock
124406 PIPE FROM TANK TO CONNECTOR $13.58 To Order
225102 RUBBER PIPE $18.31 To Order
Photo Part No Description Price (each) Stock
14304124 SCREW $0.14 To Order
Photo Part No Description Price (each) Stock
12601174 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
124790 RUBBER PIPE $7.03 To Order
Photo Part No Description Price (each) Stock
220374 VACUUM ACCUMULATOR TANK $83.98 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.62 To Order
Photo Part No Description Price (each) Stock
225505 RH VACUUM PIPE $1,554.74 To Order
Photo Part No Description Price (each) Stock
225506 LH VACUUM PIPE $1,554.74 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 IN STOCK
Photo Part No Description Price (each) Stock
195508 CONNECTOR $24.42 To Order
174818 CONNECTOR $16.61 To Order
Photo Part No Description Price (each) Stock
225466 RUBBER PIPE $66.51 To Order
Photo Part No Description Price (each) Stock
13432270 HOSE COLLAR $0.85 To Order
Photo Part No Description Price (each) Stock
226523 UNDERBODY PIPE $80.93 To Order
Photo Part No Description Price (each) Stock
172842 BRACKET WITH SHEATH $8.16 To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.42 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
224771 RUBBER PIPE $39.63 To Order
Photo Part No Description Price (each) Stock
224761 PIPE FROM TANK TO REAR $46.03 To Order
Photo Part No Description Price (each) Stock
220751 RUBBER PIPE $62.60 To Order
Photo Part No Description Price (each) Stock
14304124 SCREW $0.14 To Order
Photo Part No Description Price (each) Stock
12601174 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
122126 RUBBER PIPE $10.10 To Order
Photo Part No Description Price (each) Stock
220512 CENTRAL REAR PIPE $102.31 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 IN STOCK
Photo Part No Description Price (each) Stock
220641 RUBBER PIPE $71.77 To Order
Photo Part No Description Price (each) Stock
241986 COLLAR FOR HOSE UNION $0.97 IN STOCK
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.54 IN STOCK
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.42 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
220066 BRACKET $145.07 To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.42 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
13433370 Screw Collar $0.86 IN STOCK
262111 JUBILEE CLAMP $1.40 IN STOCK
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.40 IN STOCK
View All

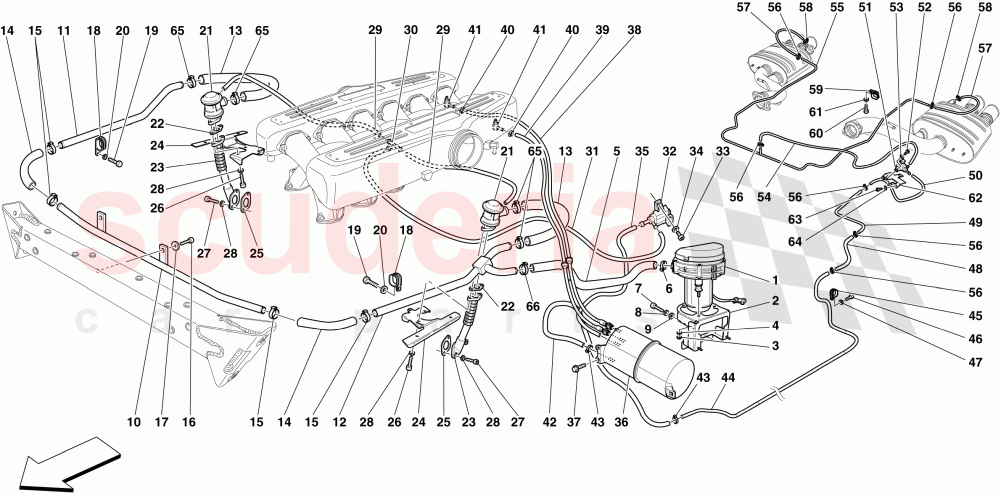

SECONDARY AIR SYSTEM of Ferrari Ferrari 599 GTB Fiorano Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 181197
Secondary Air Pump
Applicable up to Ass. No. 87312
IN STOCK 		$519.25 (21.7% off) 1
1 247795
SECONDARY AIR SYSTEM PUMP
Applicable from Ass. No. 87313
IN STOCK 		$753.45 (28.5% off) 1
2 202788
PUMP FASTENER BRACKET
Applicable up to Ass. No. 87312 		$67.18 1
2 252895
BRACKET
Applicable from Ass. No. 87313 		$135.91 1
3 14059290
FLANGED NUT M6
IN STOCK 		$1.33 3
4 11197774
WASHER
IN STOCK 		$0.06 (80% off) 3
5 202789
RUBBER PIPE
Applicable up to Ass. No. 87312 		$38.37 1
5 252008
RUBBER PIPE
Applicable from Ass. No. 87313 		$39.28 1
6 262111
JUBILEE CLAMP
IN STOCK 		$1.40 1
7 10902224
SCREW M6 X 16
IN STOCK 		$0.06 (86.7% off) 2
8 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
9 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
10 223006
CENTRAL PIPE 		$332.59 1
11 212872
RH SECONDARY AIR PIPE 		$48.86 1
12 212874
LH SECONDARY AIR PIPE 		$183.26 1
13 207528
SLEEVE 		$71.77 2
14 213165
SLEEVE 		$652.39 2
15 262111
JUBILEE CLAMP
IN STOCK 		$1.40 4
16 16296934
SCREW 6 X 14MM
IN STOCK 		$0.42 2
17 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
18 10441790
BRACKET WITH SHEATH 		$0.65 (81.2% off) 4
19 86574700
SCREW 		$0.62 4
20 11197774
WASHER
IN STOCK 		$0.06 (80% off) 4
21 171175
SECONDARY AIR VALVE
IN STOCK 		$320.71 4
22 186781
GASKET
IN STOCK 		$5.00 (21.3% off) 2
23 203046
PIPE FOR VALVE 		$179.08 2
24 217965
SUPPORT 		$35.81 2
25 202980
GASKET
IN STOCK 		$2.95 (21.1% off) 2
26 231619
SCREW
No longer supplied; Replaced by 14305324
IN STOCK 		$0.29 4
26 14305324
ALLEN SCREW M6 X 20
M6 X 20; L. 20 mm
IN STOCK 		$0.08 4
27 231625
SCREW
M6 X 40; L. 40 mm
IN STOCK 		$0.57 2
27 14305324
ALLEN SCREW M6 X 20
M6 X 20; L. 20 mm
IN STOCK 		$0.08 2
28 11197774
WASHER
IN STOCK 		$0.06 (80% off) 8
29 124790
RUBBER PIPE
No longer supplied; Replaced by 159542 		$7.03 2
29 159542
RUBBER PIPE 		$4.21 2
30 161816257691
THREE-WAY UNION
No longer supplied; Replaced by 257691 		- 1 Enquire
30 257691
3-WAY CONNECTOR 		$1.36 1
31 124406
PIPE FROM TANK TO CONNECTOR
No longer supplied; Replaced by 225102 		$13.58 1
31 225102
RUBBER PIPE 		$18.31 1
33 14304124
SCREW 		$0.14 (81.3% off) 2
34 12601174
WASHER 		$0.06 (82.9% off) 2
35 124790
RUBBER PIPE 		$7.03 1
36 220374
VACUUM ACCUMULATOR TANK 		$83.98 1
37 86574700
SCREW 		$0.62 3
38 225505
RH VACUUM PIPE 		$1,554.74 1
39 225506
LH VACUUM PIPE 		$1,554.74 1
40 13432070
HOSE COLLAR
IN STOCK 		$0.49 (54.2% off) 2
41 195508
CONNECTOR
Zn/Black 		$24.42 2
41 174818
CONNECTOR
Zn/white 		$16.61 2
42 225466
RUBBER PIPE 		$66.51 1
43 13432270
HOSE COLLAR 		$0.85 2
44 226523
UNDERBODY PIPE 		$80.93 1
45 172842
BRACKET WITH SHEATH 		$8.16 1
46 16296934
SCREW 6 X 14MM
IN STOCK 		$0.42 1
47 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
48 224771
RUBBER PIPE 		$39.63 1
49 224761
PIPE FROM TANK TO REAR 		$46.03 1
50 220751
RUBBER PIPE 		$62.60 (66.7% off) 1
52 14304124
SCREW 		$0.14 (81.3% off) 2
53 12601174
WASHER 		$0.06 (82.9% off) 2
54 122126
RUBBER PIPE 		$10.10 1
55 220512
CENTRAL REAR PIPE 		$102.31 1
56 13432070
HOSE COLLAR
IN STOCK 		$0.49 (54.2% off) 6
57 220641
RUBBER PIPE 		$71.77 2
58 241986
COLLAR FOR HOSE UNION
IN STOCK 		$0.97 2
59 10441290
BRACKET WITH SHEATH
IN STOCK 		$0.54 (67.9% off) 4
60 16296934
SCREW 6 X 14MM
IN STOCK 		$0.42 4
61 11197774
WASHER
IN STOCK 		$0.06 (80% off) 4
62 220066
BRACKET 		$145.07 1
63 16296934
SCREW 6 X 14MM
IN STOCK 		$0.42 2
64 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
65 13433370
Screw Collar
Applicable until depletion
IN STOCK 		$0.86 4
65 262111
JUBILEE CLAMP
Applicable after depletion of 13432908
IN STOCK 		$1.40 4
66 262111
JUBILEE CLAMP
IN STOCK 		$1.40 1
