Ferrari 599 GTB Fiorano - AC SYSTEM - FREON PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
202285 AC CONDENSER $934.87 To Order
Photo Part No Description Price (each) Stock
217745 RH LOWER BRACKET $123.80 To Order
Photo Part No Description Price (each) Stock
217746 LH LOWER BRACKET $123.80 To Order
Photo Part No Description Price (each) Stock
217747 RH UPPER BRACKET $129.84 To Order
Photo Part No Description Price (each) Stock
217748 LH UPPER BRACKET $129.84 To Order
Photo Part No Description Price (each) Stock
226135 SCREW $0.43 To Order
Photo Part No Description Price (each) Stock
67949800 GAS PIPE FROM COMPRESSOR TO CONDENSER $256.68 To Order
Photo Part No Description Price (each) Stock
67949600 GAS PIPE FROM CONDENSER TO FILTER $961.17 To Order
Photo Part No Description Price (each) Stock
66374400 PRESSURE SWITCH $214.99 To Order
Photo Part No Description Price (each) Stock
67085100 DEHYDRATING FILTER $50.16 To Order
Photo Part No Description Price (each) Stock
67950000 DEHYDRATOR FILTER MOUNTING BRACKET $77.13 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.61 To Order
13836971 SCREW $0.47 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
68570700 TUBE FASTENING BRACKET $252.92 To Order
Photo Part No Description Price (each) Stock
13833614 SCREW $1.17 To Order
Photo Part No Description Price (each) Stock
12638124 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
67949900 COMPRESSOR INLET PIPE $890.85 To Order
Photo Part No Description Price (each) Stock
67949700 GAS PIPE FROM FILTER TO EVAPORATOR $301.97 To Order
Photo Part No Description Price (each) Stock
69246600 TUBE FASTENING BRACKET $37.93 To Order
Photo Part No Description Price (each) Stock
250657 SCREW $7.06 IN STOCK
Photo Part No Description Price (each) Stock
231625 SCREW $0.56 IN STOCK
Photo Part No Description Price (each) Stock
11193274 WASHER $0.03 IN STOCK
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.41 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
16044024 SCREW $0.35 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
68392000 O-RING $11.33 IN STOCK
Photo Part No Description Price (each) Stock
68392100 O-RING $5.75 IN STOCK
Photo Part No Description Price (each) Stock
66309600 O-RING $1.77 IN STOCK
Photo Part No Description Price (each) Stock
68392700 O-RING $4.88 IN STOCK
Photo Part No Description Price (each) Stock
66309700 O-RING $10.11 IN STOCK
Photo Part No Description Price (each) Stock
66309400 O-RING A/C SYSTEM $15.68 IN STOCK
Photo Part No Description Price (each) Stock
66309500 O-RING AIR CON SYSTEM $15.68 IN STOCK
Photo Part No Description Price (each) Stock
66309800 O-RING $3.97 IN STOCK
Photo Part No Description Price (each) Stock
68392800 O-RING $1.77 IN STOCK
Photo Part No Description Price (each) Stock
11568124 SCREW $0.81 IN STOCK
View All

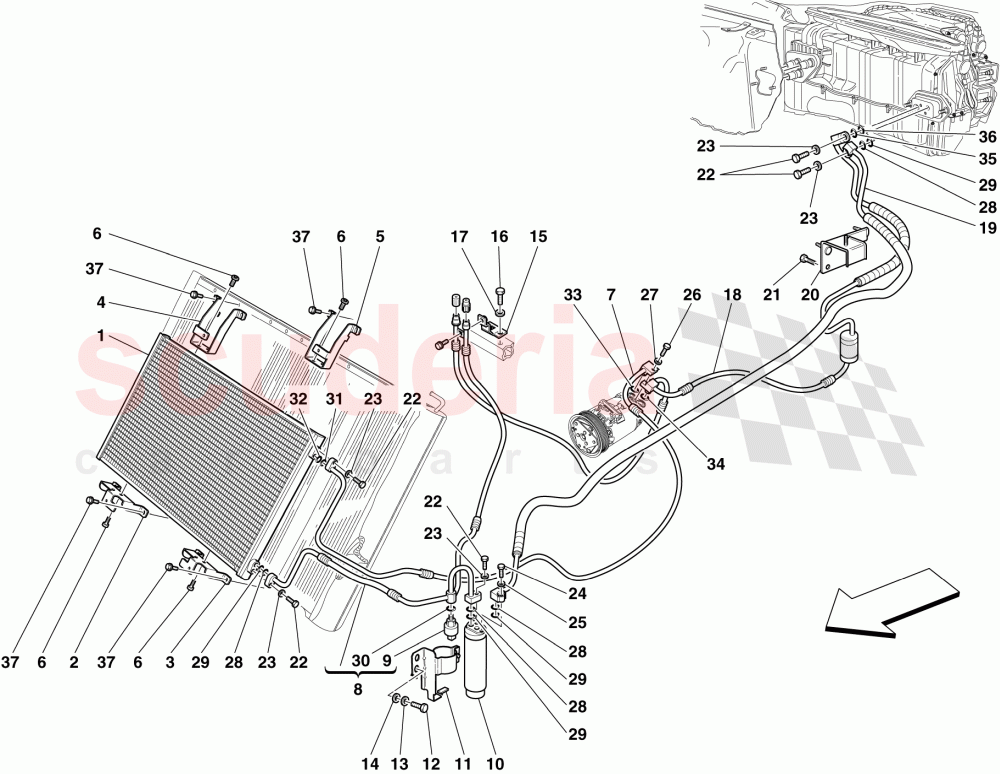

AC SYSTEM - FREON PIPES of Ferrari Ferrari 599 GTB Fiorano Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 202285
AC CONDENSER 		$934.87 1
2 217745
RH LOWER BRACKET 		$123.80 1
3 217746
LH LOWER BRACKET 		$123.80 1
4 217747
RH UPPER BRACKET 		$129.84 1
5 217748
LH UPPER BRACKET 		$129.84 1
6 226135
SCREW 		$0.43 8
7 67949800
GAS PIPE FROM COMPRESSOR TO CONDENSER 		$256.68 1
8 67949600
GAS PIPE FROM CONDENSER TO FILTER 		$961.17 1
9 66374400
PRESSURE SWITCH 		$214.99 1
10 67085100
DEHYDRATING FILTER 		$50.16 (30.2% off) 1
11 67950000
DEHYDRATOR FILTER MOUNTING BRACKET 		$77.13 1
12 86574700
SCREW
No longer supplied; Replaced by 13836971 		$0.61 2
12 13836971
SCREW
IN STOCK 		$0.47 (63.8% off) 2
13 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
14 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
15 68570700
TUBE FASTENING BRACKET 		$252.92 1
16 13833614
SCREW 		$1.17 1
17 12638124
WASHER
IN STOCK 		$0.05 (92.9% off) 1
18 67949900
COMPRESSOR INLET PIPE 		$890.85 1
19 67949700
GAS PIPE FROM FILTER TO EVAPORATOR 		$301.97 1
20 69246600
TUBE FASTENING BRACKET 		$37.93 1
21 250657
SCREW
IN STOCK 		$7.06 2
22 231625
SCREW
IN STOCK 		$0.56 5
23 11193274
WASHER
IN STOCK 		$0.03 5
24 16296934
SCREW 6 X 14MM
IN STOCK 		$0.41 1
25 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
26 16044024
SCREW
IN STOCK 		$0.35 (59.8% off) 1
27 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 1
28 68392000
O-RING
IN STOCK 		$11.33 4
29 68392100
O-RING
IN STOCK 		$5.75 (17.7% off) 4
30 66309600
O-RING
IN STOCK 		$1.77 1
31 68392700
O-RING
IN STOCK 		$4.88 1
32 66309700
O-RING
IN STOCK 		$10.11 (16.8% off) 1
33 66309400
O-RING A/C SYSTEM
IN STOCK 		$15.68 1
34 66309500
O-RING AIR CON SYSTEM
IN STOCK 		$15.68 1
35 66309800
O-RING
IN STOCK 		$3.97 (24.1% off) 1
36 68392800
O-RING
IN STOCK 		$1.77 1
37 11568124
SCREW
M5 X 16
IN STOCK 		$0.81 8
