Ferrari 599 GTB Fiorano - AC SYSTEM - WATER PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
65460300 COMPLETE WATER PUMP $425.41 To Order
Photo Part No Description Price (each) Stock
107002 BRACKET WITH SHEATH $24.07 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 ARRIVING SOON
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
69966100 PUMP FASTENER BRACKET $290.16 To Order
Photo Part No Description Price (each) Stock
285553 VIBRATION DAMPER $19.96 ARRIVING SOON
897379 RUBBER BUSHING $10.95 To Order
Photo Part No Description Price (each) Stock
67925600 PUMP MOUNTING BRACKET $32.06 To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.43 IN STOCK
Photo Part No Description Price (each) Stock
68040000 WASHER $0.14 IN STOCK
Photo Part No Description Price (each) Stock
162606 CLIP $1.20 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.92 IN STOCK
291225 P clip Bracket With Sheath $4.92 IN STOCK
80201900 BRACKET WITH SHEATH $48.96 To Order
Photo Part No Description Price (each) Stock
251561 PIPE FROM HEATER TO RH TGK $72.18 To Order
251562 PIPE FROM HEATER TO RH TGK $68.71 To Order
Photo Part No Description Price (each) Stock
251559 PIPE FROM HEATER TO LH TGK $67.18 To Order
251560 PIPE FROM HEATER TO LH TGK $68.71 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.42 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 ARRIVING SOON
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
67944500 RUBBER PIPE $11.14 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.42 IN STOCK
Photo Part No Description Price (each) Stock
67444900 LH TGK VALVE $229.07 IN STOCK
Photo Part No Description Price (each) Stock
67635900 RH TGK VALVE $213.80 IN STOCK
Photo Part No Description Price (each) Stock
67944400 TGK VALVE MOUNTING BRACKET $93.15 To Order
69368000 TGK VALVE MOUNTING BRACKET $123.69 To Order
Photo Part No Description Price (each) Stock
67933600 TGK VALVE FASTENER ROD $1.70 To Order
Photo Part No Description Price (each) Stock
748925 RUBBER CABLE GROMMET $2.44 To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.43 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
61712600 BRACKET WITH SHEATH $1.70 IN STOCK
Photo Part No Description Price (each) Stock
67628400 PIPE SEAL $5.74 To Order
Photo Part No Description Price (each) Stock
67628500 PLATE $8.50 To Order
Photo Part No Description Price (each) Stock
14054511 NUT $1.23 IN STOCK
Photo Part No Description Price (each) Stock
67628300 SHIM $2.92 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.42 IN STOCK
262111 JUBILEE CLAMP $1.42 IN STOCK
13000490 Screw Collar $0.73 IN STOCK
Photo Part No Description Price (each) Stock
68568400 BRACKET $25.76 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.62 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 ARRIVING SOON
Photo Part No Description Price (each) Stock
159386 PLATE $2.14 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 ARRIVING SOON
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
View All

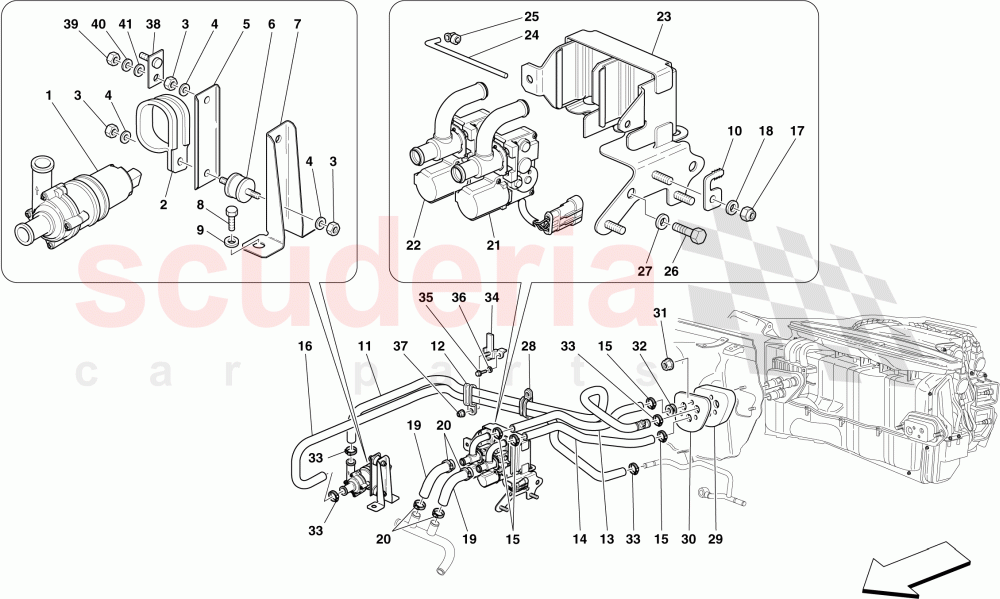

AC SYSTEM - WATER PIPES of Ferrari Ferrari 599 GTB Fiorano Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 65460300
COMPLETE WATER PUMP 		$425.41 1
2 107002
BRACKET WITH SHEATH
IN STOCK 		$24.07 (32% off) 1
3 14059290
FLANGED NUT M6
Q.ty 5 with bracket 69966100, ref. 5
ARRIVING SOON 		$1.33 4
4 11197774
WASHER
Q.ty 5 with bracket 69966100, ref. 5
IN STOCK 		$0.06 (80% off) 4
5 69966100
PUMP FASTENER BRACKET 		$290.16 1
6 285553
VIBRATION DAMPER
Applicable for bracket 64246500 ref. 5
ARRIVING SOON 		$19.96 2
6 897379
RUBBER BUSHING
Applicable for bracket 69966100 ref. 5 		$10.95 2
7 67925600
PUMP MOUNTING BRACKET 		$32.06 1
8 16296934
SCREW 6 X 14MM
IN STOCK 		$0.43 2
9 68040000
WASHER
IN STOCK 		$0.14 2
10 162606
CLIP 		$1.20 (18.4% off) 2
12 291225
P clip Bracket With Sheath
Applicable for pipes 67944100 and 69363600, ref. 11
IN STOCK 		$4.92 1
12 291225
P clip Bracket With Sheath
Applicable for pipe 80201700 ref. 11; Not for GD
IN STOCK 		$4.92 1
12 80201900
BRACKET WITH SHEATH
Applicable for pipe 80201800 ref. 11; Applicable for GD 		$48.96 1
13 251561
PIPE FROM HEATER TO RH TGK
Not for GD 		$72.18 1
13 251562
PIPE FROM HEATER TO RH TGK
Applicable for GD 		$68.71 1
14 251559
PIPE FROM HEATER TO LH TGK
Not for GD 		$67.18 1
14 251560
PIPE FROM HEATER TO LH TGK
Applicable for GD 		$68.71 1
15 262111
JUBILEE CLAMP
IN STOCK 		$1.42 4
17 14059290
FLANGED NUT M6
ARRIVING SOON 		$1.33 2
18 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 2
19 67944500
RUBBER PIPE 		$11.14 2
20 262111
JUBILEE CLAMP
IN STOCK 		$1.42 4
21 67444900
LH TGK VALVE
IN STOCK 		$229.07 (20.5% off) 1
22 67635900
RH TGK VALVE
IN STOCK 		$213.80 (25.5% off) 1
23 67944400
TGK VALVE MOUNTING BRACKET
Not for GD 		$93.15 1
23 69368000
TGK VALVE MOUNTING BRACKET
Applicable for GD 		$123.69 1
24 67933600
TGK VALVE FASTENER ROD 		$1.70 1
25 748925
RUBBER CABLE GROMMET 		$2.44 1
26 16296934
SCREW 6 X 14MM
IN STOCK 		$0.43 3
27 12643724
WASHER
IN STOCK 		$0.06 (88% off) 3
28 61712600
BRACKET WITH SHEATH
IN STOCK 		$1.70 1
29 67628400
PIPE SEAL 		$5.74 1
30 67628500
PLATE 		$8.50 1
31 14054511
NUT
IN STOCK 		$1.23 3
32 67628300
SHIM 		$2.92 3
33 262111
JUBILEE CLAMP
Applicable up to Ass. No. 69514
IN STOCK 		$1.42 4
33 262111
JUBILEE CLAMP
Applicable from Ass. No. 69515
IN STOCK 		$1.42 3
33 13000490
Screw Collar
IN STOCK 		$0.73 (61.6% off) 1
34 68568400
BRACKET 		$25.76 1
35 86574700
SCREW 		$0.62 1
36 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
37 14059290
FLANGED NUT M6
ARRIVING SOON 		$1.33 1
38 159386
PLATE 		$2.14 1
39 14059290
FLANGED NUT M6
ARRIVING SOON 		$1.33 1
40 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
41 12643724
WASHER
IN STOCK 		$0.06 (88% off) 1
