Ferrari 512 TR - Valves and relays

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
151960 Indication sheet $6.78 To Order
Photo Part No Description Price (each) Stock
40130007 ELECTROMAGNETIC SWITCH $49.58 To Order
Photo Part No Description Price (each) Stock
40130106 Microrelais 0332209151 $22.65 To Order
Photo Part No Description Price (each) Stock
40283905 ELECTROMAGNETIC SWITCH $72.46 To Order
Photo Part No Description Price (each) Stock
175318 INJECTION DEVICE RELAY $34.90 To Order
Photo Part No Description Price (each) Stock
125243 20 AMP. FUSE $0.37 To Order
Photo Part No Description Price (each) Stock
40130007 ELECTROMAGNETIC SWITCH $49.58 To Order
Photo Part No Description Price (each) Stock
150039 Actuator door control unit $165.14 To Order
Photo Part No Description Price (each) Stock
147177 Window regulator control unit $280.81 To Order
Photo Part No Description Price (each) Stock
61079400 A.C. system control unit $199.96 To Order
Photo Part No Description Price (each) Stock
149932 Control unit fixing plate $12.50 To Order
Photo Part No Description Price (each) Stock
116055 Rear cover $20.53 To Order
Photo Part No Description Price (each) Stock
137667 ACOUSTIC SIGNAL WITH ELECTROMAGNETIC SWITCH FOR BRAKES WARNING LIGHT CONTROL $69.63 To Order
Photo Part No Description Price (each) Stock
61048000 Intermittence for direction and hazard $41.59 To Order
Photo Part No Description Price (each) Stock
61827900 Wiper intermittence $43.46 To Order
Photo Part No Description Price (each) Stock
40130106 Microrelais 0332209151 $22.65 To Order
Photo Part No Description Price (each) Stock
137669 BRACKET $6.07 To Order
Photo Part No Description Price (each) Stock
63677300 Control unit bracket $19.61 To Order
Photo Part No Description Price (each) Stock
14304324 SCREW $1.09 IN STOCK
Photo Part No Description Price (each) Stock
10615274 WASHER $0.09 IN STOCK
Photo Part No Description Price (each) Stock
62769800 WASHER D.5-14 X 2.5 $0.21 IN STOCK
Photo Part No Description Price (each) Stock
116857 Spring $5.29 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
64686900 SCREW $0.29 IN STOCK
View All

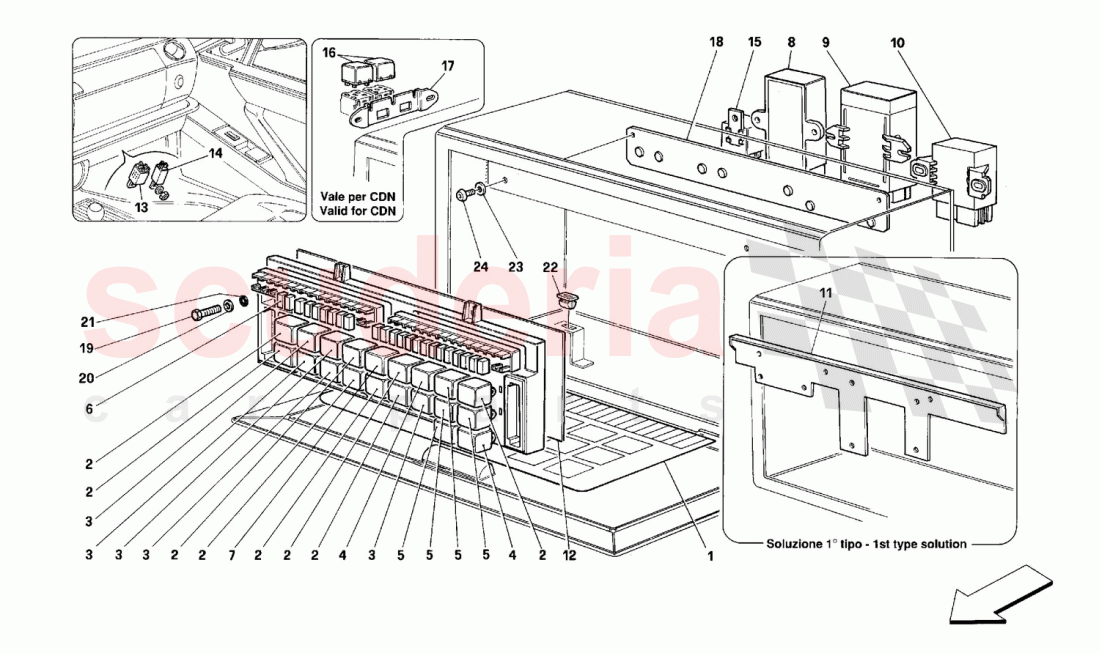

Valves and relays of Ferrari Ferrari 512 TR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 61830700
CONTROL BRAKES WARNING LIGHT AND SAFETY BELTS ACOUSTIC SIGNAL
Valid for CDN, SA, J 		$69.97 (44.3% off) 1
- 125242
15 AMP. FUSE 		$0.61 7
- 125241
10 A FUSE
IN STOCK 		$0.61 7
- 125240
7,5 AMP. FUSE 		$0.58 3
- 126031
25 AMP. FUSE 		$0.57 3
- 151101
Control unit, assy
Not for CH 		$1,628.76 1
- 153711
Control unit, assy
Valid for CH 		$981.49 (71.8% off) 1
1 151960
Indication sheet 		$6.78 1
2 40130007
ELECTROMAGNETIC SWITCH 		$49.58 8
3 40130106
Microrelais 0332209151 		$22.65 (16.4% off) 5
4 40283905
ELECTROMAGNETIC SWITCH 		$72.46 2
5 175318
INJECTION DEVICE RELAY 		$34.90 (32.9% off) 4
6 125243
20 AMP. FUSE 		$0.37 4
7 40130007
ELECTROMAGNETIC SWITCH
Valid for CH 		$49.58 1
8 150039
Actuator door control unit 		$165.14 (46.7% off) 1
9 147177
Window regulator control unit 		$280.81 (87.1% off) 1
10 61079400
A.C. system control unit 		$199.96 (61.9% off) 1
11 149932
Control unit fixing plate
1st type version 		$12.50 1
12 116055
Rear cover 		$20.53 1
13 137667
ACOUSTIC SIGNAL WITH ELECTROMAGNETIC SWITCH FOR BRAKES WARNING LIGHT CONTROL
Not for CDN, SA, J 		$69.63 (33.7% off) 1
14 61048000
Intermittence for direction and hazard
hazard 		$41.59 (7.6% off) 1
15 61827900
Wiper intermittence 		$43.46 (16.8% off) 1
16 40130106
Microrelais 0332209151
Valid for CDN 		$22.65 (16.4% off) 2
17 137669
BRACKET
Valid for CDN 		$6.07 1
18 63677300
Control unit bracket 		$19.61 1
19 14304324
SCREW
IN STOCK 		$1.09 2
20 10615274
WASHER
IN STOCK 		$0.09 (98.4% off) 2
21 62769800
WASHER D.5-14 X 2.5
IN STOCK 		$0.21 (30% off) 2
22 116857
Spring 		$5.29 (33.9% off) 2
23 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
24 64686900
SCREW
IN STOCK 		$0.29 (55.4% off) 2
