Electric System

Ferrari 512 TR

Find Your Part

Ferrari 512 TR - Electric system

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
149620 Front cables $352.07 To Order
Photo Part No Description Price (each) Stock
147199 Cables for door R.H. side $177.89 To Order
Photo Part No Description Price (each) Stock
147198 Cables for door L.H. side $172.62 To Order
Photo Part No Description Price (each) Stock
154257 Rear cables $768.16 To Order
149622 Rear cables $1,216.10 To Order
Photo Part No Description Price (each) Stock
152892 Cables for number plate lighting $30.26 To Order
Photo Part No Description Price (each) Stock
150059 Additional stop light cable connection $16.40 To Order
Photo Part No Description Price (each) Stock
147201 Engine cables $177.22 To Order
Photo Part No Description Price (each) Stock
149926 R.H. cables protection $18.47 To Order
Photo Part No Description Price (each) Stock
149925 L.H. cables protection $29.80 To Order
Photo Part No Description Price (each) Stock
149623 Cables for roof lamps connection $96.21 To Order
Photo Part No Description Price (each) Stock
149621 Dashboard cables -Not for USA, $883.36 To Order
Photo Part No Description Price (each) Stock
147196 Console cables $276.72 To Order
Photo Part No Description Price (each) Stock
157386 CLIP $0.15 IN STOCK
Photo Part No Description Price (each) Stock
153142 CAR RADIO CABLES $211.04 To Order
Photo Part No Description Price (each) Stock
148483 Cables for central panel roof lamp $10.74 To Order
Photo Part No Description Price (each) Stock
150056 Cable for engine room roof lamp $19.08 To Order
Photo Part No Description Price (each) Stock
150058 Cable for engine room roof lamp switch $69.85 To Order
Photo Part No Description Price (each) Stock
157385 PILOT SIDE SPRING $0.17 To Order
Photo Part No Description Price (each) Stock
148130 Passive belts connection cables $247.53 To Order
Photo Part No Description Price (each) Stock
151704 Traffic/driving headlight cables $163.45 To Order
Photo Part No Description Price (each) Stock
10450390 BRACKET WITH SHEATH $1.93 To Order
Photo Part No Description Price (each) Stock
61681500 Spring $0.29 To Order
Photo Part No Description Price (each) Stock
139943 Gasket protection $34.49 To Order
Photo Part No Description Price (each) Stock
139944 GASKET $8.60 To Order
Photo Part No Description Price (each) Stock
10420301 Clamp (Ø 4 mm) $4.69 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
149042 Cable bushing for door cables $3.85 To Order
Photo Part No Description Price (each) Stock
149043 CABLE BUSHING $5.15 To Order
Photo Part No Description Price (each) Stock
10815787 CLAMP $0.14 To Order
Photo Part No Description Price (each) Stock
15517201 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
14211686 Screw block $0.05 To Order
Photo Part No Description Price (each) Stock
151298 Cable grommet gasket $7.96 To Order
Photo Part No Description Price (each) Stock
63403400 Cable protection plate $11.57 To Order
Photo Part No Description Price (each) Stock
15687978 Screw $0.58 To Order
Photo Part No Description Price (each) Stock
62769800 WASHER D.5-14 X 2.5 $0.21 ARRIVING SOON
View All

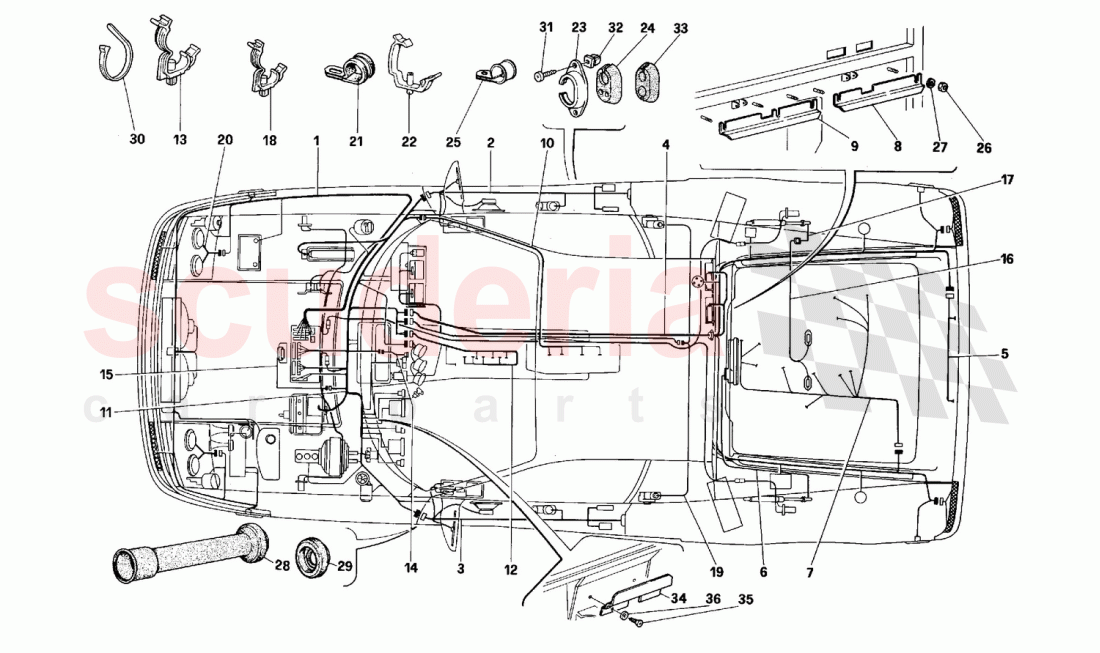

Electric system of Ferrari Ferrari 512 TR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 10418301
BRACKET 		$0.46 1
- 10418501
BRACKET 		$2.86 (51.4% off) 3
- 10418601
BRACKET WITH SHEATH 		$0.93 6
- 10418801
BRACKET 		$0.53 5
- 10441690
BRACKET WITH SHEATH 		$1.77 10
- 60991000
CLAMP
IN STOCK 		$0.52 8
- 149773
CLIP
IN STOCK 		$0.38 2
- 148362
Traffic/driving headlight cables
Valid for USA, CDN, J / 		$22.61 2
- 151666
Dashboard cables -Valid for AUS-
Valid for cars with ABS 		$1,659.93 1
- 151091
Dashboard cables -Valid for GD-
Valid for AUS / Valid for cars with ABS 		$1,659.93 1
- 153167
Dashboard cables -Valid for AUS-
Not for cars with ABS / Valid for switch / 61503300- (Ref. 35 draw. 110) 		$1,613.62 1
- 153315
Dashboard cables -Valid for AUS-
Not for cars with ABS / Valid for switch / 153069- (Ref. 35 draw. 110) 		$1,276.24 1
- 150537
Dashboard cables
Valid for GD / Valid for AUS / Not for cars with ABS / Valid for switch / 61503300- (Ref. 35 draw. 110) 		$1,588.46 1
- 153311
Dashboard cables
Valid for GD / Valid for AUS / Not for cars with ABS / Valid for switch / 153069- (Ref. 35 draw. 110) 		$1,118.60 1
- 152807
Dashboard cables
Valid for SA and J / Not for cars with ABS / Valid for switch / 61503300- (Ref. 35 draw. 110) 		$1,613.62 1
- 153313
Dashboard cables
Valid for SA and J / Not for cars with ABS / Valid for switch / 153069- (Ref. 35 draw. 110) 		$1,253.24 1
- 151262
Dashboard cables
Valid for SA and J / Valid for cars with ABS 		$1,628.27 1
- 151192
Dashboard cables -Valid for CDN-
Valid for cars with ABS 		$1,752.24 1
- 154197
Dashboard cables -Valid for CH-
Not for cars with ABS 		$1,292.35 1
- 154292
Dashboard cables -Valid for CH-
Valid for cars with ABS 		$1,712.62 1
- 152685
Dashboard cables -Valid for USA-
Valid for cars with ABS 		$1,664.65 1
- 152810
Dashboard cables -Valid for CDN-
Not for cars with ABS / Valid for switch / 61503300- (Ref. 35 draw. 110) 		$1,551.31 1
- 153309
Dashboard cables -Valid for CDN-
Not for cars with ABS / Valid for switch / 153069- (Ref. 35 draw. 110) 		$1,253.24 1
- 150624
Dashboard cables -Not for USA,
CDN, CH, SA, J and GD / Valid for cars with ABS 		$1,664.65 1
- 147194
Dashboard cables -Valid for USA-
Not for cars with ABS / Valid for switch / 61503300- (Ref. 35 draw. 110) 		$1,240.01 1
- 153281
Dashboard cables -Valid for USA-
Not for cars with ABS / Valid for switch / 153069- (Ref. 35 draw. 110) 		$1,187.75 1
- 153303
Dashboard cables -Not for USA,
CDN, CH, SA, J and GD / Not for cars with ABS / Valid for switch / 153069- (Ref. 35 draw. 110) 		$1,176.25 1
- 147200
Cables for roof lamps connection
connection / Valid for USA, CDN, SA, J 		$135.19 1
- 154251
Engine cables
Valid for cars with / generator 154153 / See ref. 1 draw. 53 		$231.25 1
- 154259
Rear cables
Valid for AUS / Valid for cars with / generator 154153 / See ref. 1 draw. 53 		$825.54 1
- 152892
Cables for number plate lighting
Valid after depletion / of 148119 		$30.26 1
- 151272
Rear cables
Valid for AUS / Valid for cars with / generator 147220 / See ref. 1 draw. 52 		$842.26 1
- 154261
Rear cables
Valid for J / Valid for cars with / generator 154153 / See ref. 1 draw. 53 		$698.83 1
- 151124
Rear cables
Valid for GB and ZA / Valid for cars with / generator 147220 / See ref. 1 draw. 52 		$729.27 1
- 153004
Rear cables
Valid for SA / Valid for cars with / generator 147220 / See ref. 1 draw. 52 		$531.26 1
- 154263
Rear cables
Valid for SA / Valid for cars with / generator 154153 / See ref. 1 draw. 53 		$766.14 1
- 151263
Rear cables
Valid for J / Valid for cars with / generator 147220 / See ref. 1 draw. 52 		$729.27 1
- 153627
Rear cables
Valid for CH / Valid for cars with / generator 147220 / See ref. 1 draw. 52 		$693.61 1
- 154265
Rear cables
Valid for CH / Valid for cars with / generator 154153 / See ref. 1 draw. 53 		$779.64 1
- 151193
Rear cables
Valid for CDN / Valid for cars with / generator 147220 / See ref. 1 draw. 52 		$800.98 1
- 154267
Rear cables
Valid for CDN / Valid for cars with / generator 154153 / See ref. 1 draw. 53 		$787.38 1
- 154255
Rear cables
Valid for USA / Valid for cars with / generator 154153 / See ref. 1 draw. 53 		$757.41 1
- 154253
Rear cables
Not for USA, CDN, CH, / SA, J, GB, ZA, AUS / Valid for cars with / generator 154153 / See ref. 1 draw. 53 		$778.38 1
- 147195
Rear cables
Valid for USA / Valid for cars with / generator 147220 / See ref. 1 draw. 52 		$946.95 1
- 150598
Cables for door R.H. side
Valid for RHD 		$202.32 1
- 150599
Cables for door L.H. side
Valid for RHD 		$180.62 1
- 151568
Front cables
Valid for J with ABS 		$374.56 1
- 152656
Front cables
Valid for RHD / Not for cars with ABS 		$849.81 1
- 150536
Front cables
Valid for RHD with ABS 		$377.34 1
- 147193
Front cables
Valid for USA and CDN / Not for cars with ABS 		$379.22 (14.8% off) 1
- 152271
Front cables
Valid for USA and CDN / with ABS 		$372.07 1
- 152806
Front cables
Valid for J / Not for cars with ABS 		$534.90 1
- 152272
Front cables
Not for USA, CDN, J, GD / Valid for cars with ABS 		$374.56 1
1 149620
Front cables
Not for USA, CDN, J, GD / Not for cars with ABS 		$352.07 1
2 147199
Cables for door R.H. side
Not for RHD 		$177.89 1
3 147198
Cables for door L.H. side
Not for RHD 		$172.62 1
4 154257
Rear cables
Valid for GB and ZA / Valid for cars with / generator 154153 / See ref. 1 draw. 53 		$768.16 1
4 149622
Rear cables
Not for USA, CDN, CH, / SA, J, GB, ZA, AUS / Valid for cars with / generator 147220 / See ref. 1 draw. 52 		$1,216.10 1
5 152892
Cables for number plate lighting
Valid till depletion 		$30.26 1
6 150059
Additional stop light cable connection
Valid for USA, CDN, AUS / 		$16.40 1
7 147201
Engine cables
Valid for cars with / generator 147220 / See ref. 1 draw. 52 		$177.22 1
8 149926
R.H. cables protection 		$18.47 1
9 149925
L.H. cables protection 		$29.80 1
10 149623
Cables for roof lamps connection
connection / Not for USA, CDN, SA, J 		$96.21 1
11 149621
Dashboard cables -Not for USA,
CDN, SA, J and GD / Not for cars with ABS / Valid for switch / 61503300- (Ref. 35 draw. 110) 		$883.36 1
12 147196
Console cables 		$276.72 1
13 157386
CLIP
IN STOCK 		$0.15 11
14 153142
CAR RADIO CABLES 		$211.04 1
15 148483
Cables for central panel roof lamp 		$10.74 1
16 150056
Cable for engine room roof lamp 		$19.08 1
17 150058
Cable for engine room roof lamp switch
lamp switch 		$69.85 1
18 157385
PILOT SIDE SPRING 		$0.17 11
19 148130
Passive belts connection cables
Valid for USA 		$247.53 1
20 151704
Traffic/driving headlight cables
Not for USA, CDN, J / 		$163.45 4
21 10450390
BRACKET WITH SHEATH 		$1.93 2
22 61681500
Spring 		$0.29 (73.6% off) 3
23 139943
Gasket protection 		$34.49 3
24 139944
GASKET 		$8.60 2
25 10420301
Clamp (Ø 4 mm) 		$4.69 4
26 14059290
FLANGED NUT M6
IN STOCK 		$1.31 5
27 12643724
WASHER
IN STOCK 		$0.06 (88% off) 5
28 149042
Cable bushing for door cables 		$3.85 2
29 149043
CABLE BUSHING 		$5.15 6
30 10815787
CLAMP 		$0.14 4
31 15517201
SCREW 		$0.61 2
32 14211686
Screw block 		$0.05 2
33 151298
Cable grommet gasket 		$7.96 1
34 63403400
Cable protection plate 		$11.57 1
35 15687978
Screw 		$0.58 2
36 62769800
WASHER D.5-14 X 2.5
ARRIVING SOON 		$0.21 (30% off) 2
