Ferrari 512 TR - Air conditioning system

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
63370600 Complete electro fan $262.58 To Order
Photo Part No Description Price (each) Stock
152409 a/c. fan motor $97.16 To Order
Photo Part No Description Price (each) Stock
63358800 Air conveyor $37.34 To Order
Photo Part No Description Price (each) Stock
152412 Fan $38.22 To Order
Photo Part No Description Price (each) Stock
63337600 A.C. condenser $897.43 To Order
Photo Part No Description Price (each) Stock
63028300 Air conveyor to condenser $165.83 To Order
Photo Part No Description Price (each) Stock
63087700 Gasket $7.81 To Order
Photo Part No Description Price (each) Stock
231625 SCREW $0.56 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.52 To Order
Photo Part No Description Price (each) Stock
103550 Spacer bush -Only for $1.71 IN STOCK
Photo Part No Description Price (each) Stock
137624 Vibration-damping buffer $3.05 To Order
Photo Part No Description Price (each) Stock
62655500 DEHYDRATOR FILTER WITH PRESSURE SWITCH $102.68 To Order
Photo Part No Description Price (each) Stock
62433300 Pressostat for filter $165.10 To Order
Photo Part No Description Price (each) Stock
124024 Pipe from filter to evaporator $72.49 To Order
Photo Part No Description Price (each) Stock
61079000 ELECTRO-MAGNETIC VALVE $428.38 To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.52 To Order
Photo Part No Description Price (each) Stock
103550 Spacer bush -Only for $1.71 IN STOCK
Photo Part No Description Price (each) Stock
124029 Pipe from electromagnetic valve to engine $160.02 To Order
Photo Part No Description Price (each) Stock
124027 Pipe from engine to evaporator $108.42 To Order
Photo Part No Description Price (each) Stock
149762 Pipe from compressor to condenser $124.54 To Order
Photo Part No Description Price (each) Stock
119463 Bracket $21.71 To Order
Photo Part No Description Price (each) Stock
320600 CLIP $2.09 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.30 IN STOCK
Photo Part No Description Price (each) Stock
125003 Pipe from electromagnetic valve to reduction $19.62 To Order
Photo Part No Description Price (each) Stock
61615000 Pipe from evaporator to electro fan $75.46 To Order
Photo Part No Description Price (each) Stock
149977 Pipe from evaporator to compressor $135.54 To Order
Photo Part No Description Price (each) Stock
124030 Reduction $4.35 To Order
Photo Part No Description Price (each) Stock
13000490 Screw Collar $0.71 IN STOCK
Photo Part No Description Price (each) Stock
61275000 Pipes insulation $81.38 To Order
Photo Part No Description Price (each) Stock
62954400 Pipe from vacuum tank to push button panel $10.25 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.53 IN STOCK
Photo Part No Description Price (each) Stock
10903834 SCREW $6.12 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.30 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
150474 Pipe from condenser to filter $64.08 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.38 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
106744 WASHER $8.05 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
60659100 Caged Captive Nut 6mm $0.91 IN STOCK
Photo Part No Description Price (each) Stock
62660300 GASKET $8.28 To Order
View All

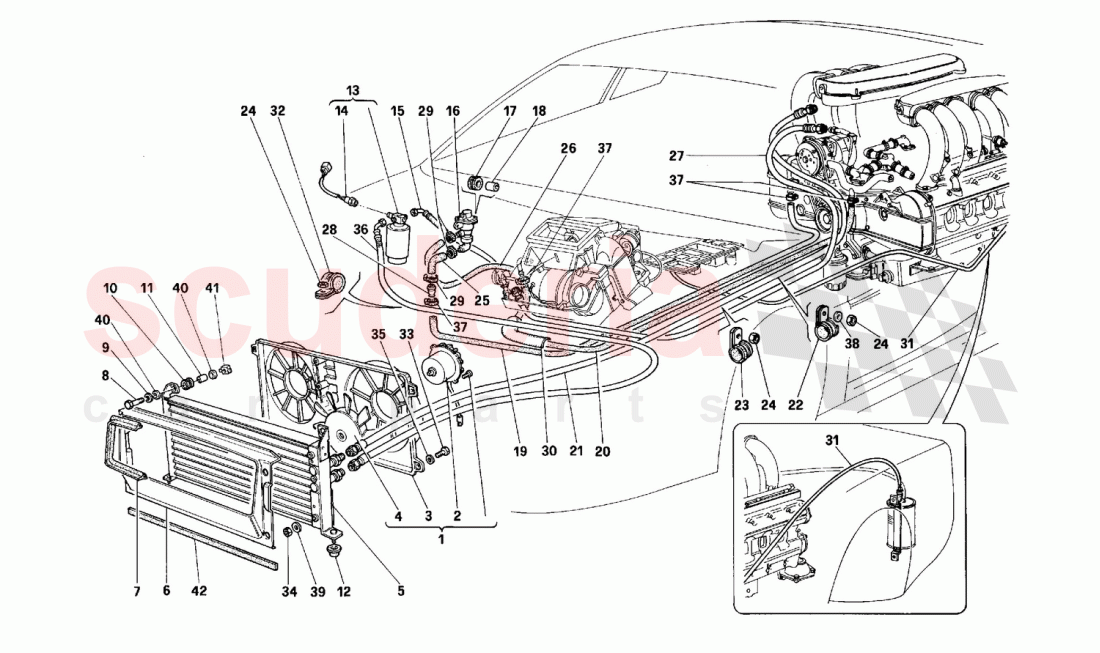

Air conditioning system of Ferrari Ferrari 512 TR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 152231
Pipe from condenser to filter
Valid for GD 		$61.70 1
- 154108
Pipe from evaporator to compressor
compressor -Valid for GD / Valid after stock exhaustion / of 149977 		$134.66 1
- 152225
Pipe from filter to evaporator
Valid for GD 		$84.85 1
- 63638800
Dehydrator filter with pressostat
pressostat -Valid for GD 		$114.08 1
- 62655500
DEHYDRATOR FILTER WITH PRESSURE SWITCH
pressostat -As an alternative / of 62655500 - Not for GD 		$102.68 (41.3% off) 1
1 63370600
Complete electro fan 		$262.58 (41% off) 1
2 152409
a/c. fan motor 		$97.16 2
3 63358800
Air conveyor 		$37.34 1
4 152412
Fan 		$38.22 2
5 63337600
A.C. condenser 		$897.43 1
6 63028300
Air conveyor to condenser 		$165.83 (63% off) 1
7 63087700
Gasket 		$7.81 (74.5% off) 1
8 231625
SCREW
IN STOCK 		$0.56 2
9 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 2
10 812273
CABLE GROMMET 		$1.52 2
11 103550
Spacer bush -Only for
IN STOCK 		$1.71 (47.4% off) 2
12 137624
Vibration-damping buffer 		$3.05 (45.6% off) 2
13 62655500
DEHYDRATOR FILTER WITH PRESSURE SWITCH
pressostat -Not for GD 		$102.68 (41.3% off) 1
14 62433300
Pressostat for filter 		$165.10 (16.8% off) 1
15 124024
Pipe from filter to evaporator
Not for GD 		$72.49 1
16 61079000
ELECTRO-MAGNETIC VALVE 		$428.38 1
17 812273
CABLE GROMMET 		$1.52 2
18 103550
Spacer bush -Only for
IN STOCK 		$1.71 (47.4% off) 2
19 124029
Pipe from electromagnetic valve to engine
valve to engine 		$160.02 (44.5% off) 1
20 124027
Pipe from engine to evaporator 		$108.42 (62.4% off) 1
21 149762
Pipe from compressor to condenser
to condenser 		$124.54 1
22 119463
Bracket 		$21.71 1
23 320600
CLIP 		$2.09 2
24 14059290
FLANGED NUT M6
IN STOCK 		$1.30 4
25 125003
Pipe from electromagnetic valve to reduction
to reduction 		$19.62 1
26 61615000
Pipe from evaporator to electro fan
to electro-fan 		$75.46 1
27 149977
Pipe from evaporator to compressor
compressor -Not for GD 		$135.54 1
28 124030
Reduction 		$4.35 1
29 13000490
Screw Collar
IN STOCK 		$0.71 (62.6% off) 4
30 61275000
Pipes insulation 		$81.38 2
31 62954400
Pipe from vacuum tank to push button panel
push-button panel 		$10.25 1
32 10441290
BRACKET WITH SHEATH
IN STOCK 		$0.53 (68.5% off) 2
33 10903834
SCREW 		$6.12 4
34 14059290
FLANGED NUT M6
IN STOCK 		$1.30 4
35 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 4
36 150474
Pipe from condenser to filter
Not for GD 		$64.08 (17.3% off) 1
37 262111
SCREW CLAMP 		$1.38 4
38 12643724
WASHER
IN STOCK 		$0.06 (88% off) 1
39 106744
WASHER 		$8.05 (9.4% off) 4
40 12643724
WASHER
IN STOCK 		$0.06 (88% off) 4
41 60659100
Caged Captive Nut 6mm
IN STOCK 		$0.91 2
42 62660300
GASKET 		$8.28 (30.1% off) 1
